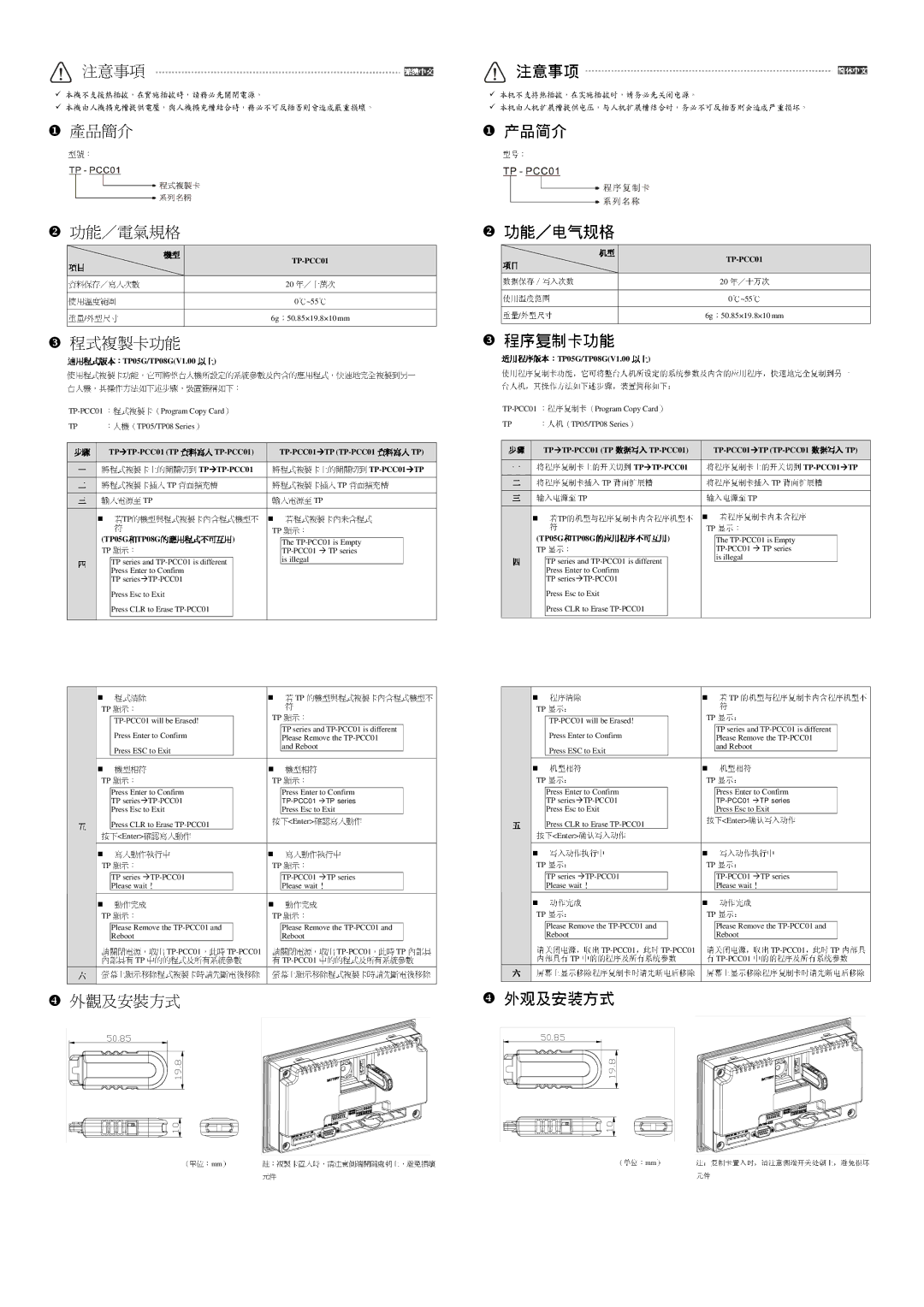

Warning

ENGLISH

￿TP-PCC01 doesn’t support plug and play function. Please turn off power before plugging.

￿The voltage for TP-PCC01 is supplied from TP extension slot. Please ensure that plug direction is correct when connecting TP-PCC01 to TP extension slot in case danger and damage on the device may occur.

￿Introduction

Model Name Explanation

Program Copy Card

Series

￿Electrical Specifications

Model Name	TP-PCC01
Item
Data Reserved Life / Times for	20 years / one hundred thousand times
Writing In
Operation Temperature	0ºC ~ 55ºC
Weight / Dimensions	6g / 50.85×19.8×10 mm

￿Program Copy Card Functions

Compatible firmware version: TP05G/TP08G (V1.00 and above)

Using program copy card functions can copy the whole system parameters and application programs set in one TP05G/TP08G to another TP05G/TP08G rapidly. It can save much time and manpower. The operation is described in the following sections.

TP-PCC01 : Program Copy Card

TP : Terminal Panel (TP05G/TP08G Series)

Step

1

2

3

4

TP￿TP-PCC01

(Copy TP program to TP-PCC01)

Turn the switch on the TP-PCC01 to

TP￿TP-PCC01

Insert the TP-PCC01 into the extension slot of TP

Apply power to TP

￿If the model type of TP does not match the model type of the program set in TP-PCC01:

(TP05G program and TP08G program can’t be compatible with each other. It means that TP05G program can’t be opened and edited by TP08G, and TP08G program can’t be opened and edited by TP05G either.)

TP will display:

TP series and TP-PCC01 is different

Press Enter to Confirm

TP series￿TP-PCC01

Press Esc to Exit

Press CLR to Erase TP-PCC01

TP-PCC01￿TP

(Copy program in TP-PCC01 to TP)

Turn the switch on the TP-PCC01 to

TP-PCC01￿TP

Insert the TP-PCC01 into the extension slot of TP

Apply power to TP

￿If there is no program in TP-PCC01. TP will display:

The TP-PCC01 is Empty TP-PCC01 ￿ TP series is illegal

5

6

￿Remove the program TP will display:

TP-PCC01 will be Erased! Press Enter to Confirm Press ESC to Exit

￿If the model type of TP and the model type of the program set in TP-PCC01 is matched.

TP will display:

Press Enter to Confirm

TP series￿TP-PCC01

Press Esc to Exit

Press CLR to Erase TP-PCC01

Press <Enter> key to confirm the “writing in” operation.

￿When executing “writing in” operation, TP will display:

TP series ￿TP-PCC01

Please wait!

￿“Writing in” operation is completed. TP will display:

Please Remove the TP-PCC01 and

Reboot

Please turn the power of TP off and remove

TP-PCC01 from TP. At this time, all TP programs and system parameters have been copied to TP-PCC01.

Turn the power of TP off and then remove

TP-PCC01 when the message “Please Remove the TP-PCC01 and Reboot” displays on the screen of TP.

￿If the model type of TP does not match the model type of the program set in TP-PCC01.

TP will display:

TP series and TP-PCC01 is different Please Remove the TP-PCC01 and Reboot

￿If the model type of TP and the model type of the program set in TP-PCC01 is matched.

TP will display:

Press Enter to Confirm

TP-PCC01 ￿TP series

Press Esc to Exit

Press <Enter> key to confirm the “writing in” operation.

￿When executing “writing in” operation, TP will display:

TP-PCC01 ￿TP series

Please wait!

￿“Writing in” operation is completed. TP will display:

Please Remove the TP-PCC01 and

Reboot

Please turn the power of TP off and remove

TP-PCC01 from TP. At this time, all programs and system parameters stored in TP-PCC01 have been copied to TP.

Turn the power of TP off and then remove

TP-PCC01 when the message “Please Remove the TP-PCC01 and Reboot” displays on the screen of TP.

￿Dimension and Installation

Units: mm

（ ）

Note:

To avoid damage to TP-PCC01, when installing TP-PCC01 into TP, please pay particular attention to the installation direction of TP-PCC01 and ensure that the side which there is a switch on it should be up and toward the user.
