Page 1
Image 1

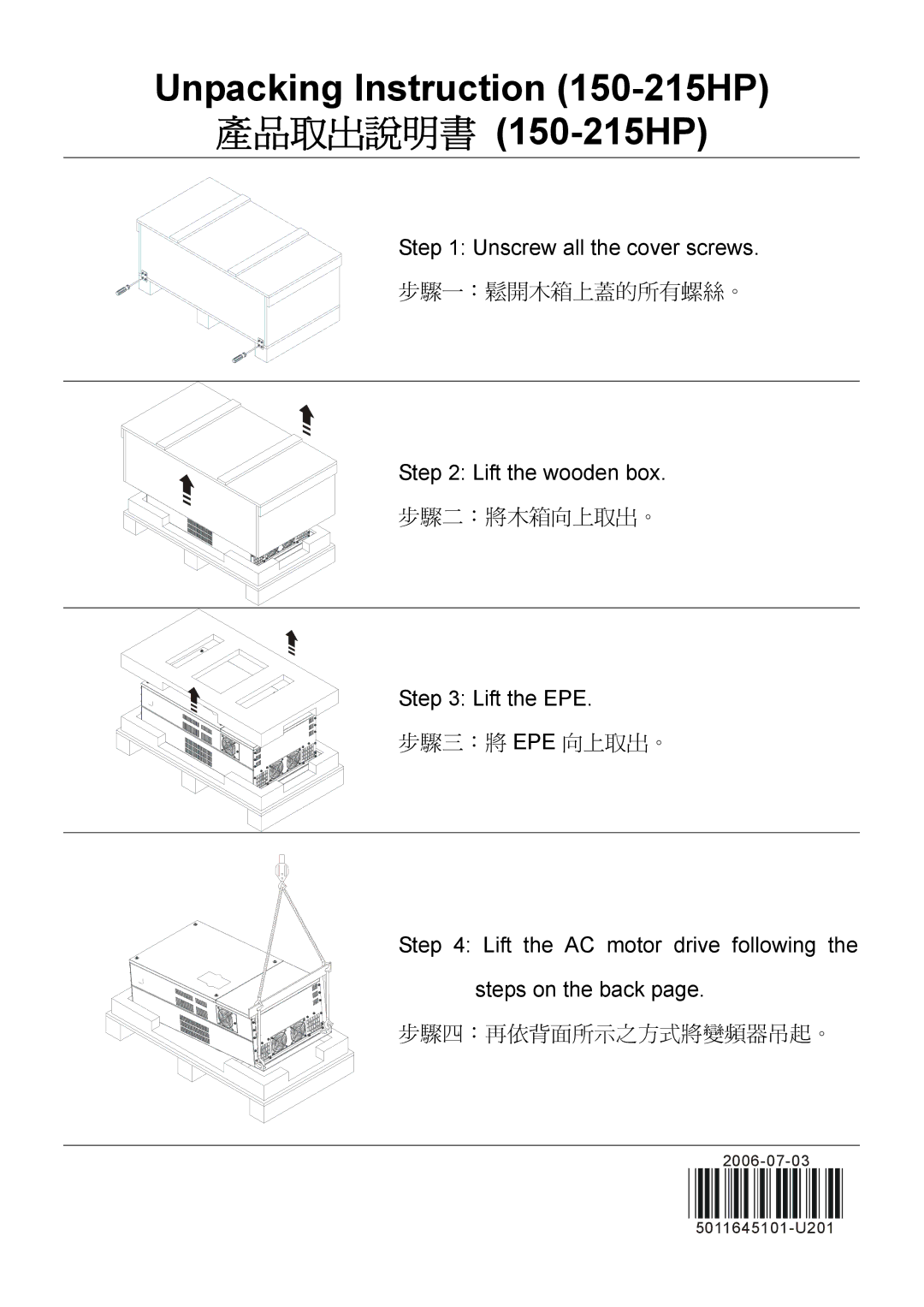

Unpacking Instruction
(150-215HP)
產品取出說明書
(150-215HP)
Step 1: Unscrew all the cover screws.
步驟一:鬆開木箱上蓋的所有螺絲。
Step 2: Lift the wooden box.
步驟二:將木箱向上取出。
Step 3: Lift the EPE.
步驟三:將
EPE
向上取出。
Step 4: Lift the AC motor drive following the steps on the back page.
步驟四:再依背面所示之方式將變頻器吊起。
2006-07-03
5011645101-U201
Page 2
Page 1
Image 1
Page 2
Contents
Step 1 Unscrew all the cover screws
Unpacking Instruction 150-215HP 產品取出說明書 150-215HP
步驟一:鬆開木箱上蓋的所有螺絲。
Step 2 Lift the wooden box
產品搬運說明書

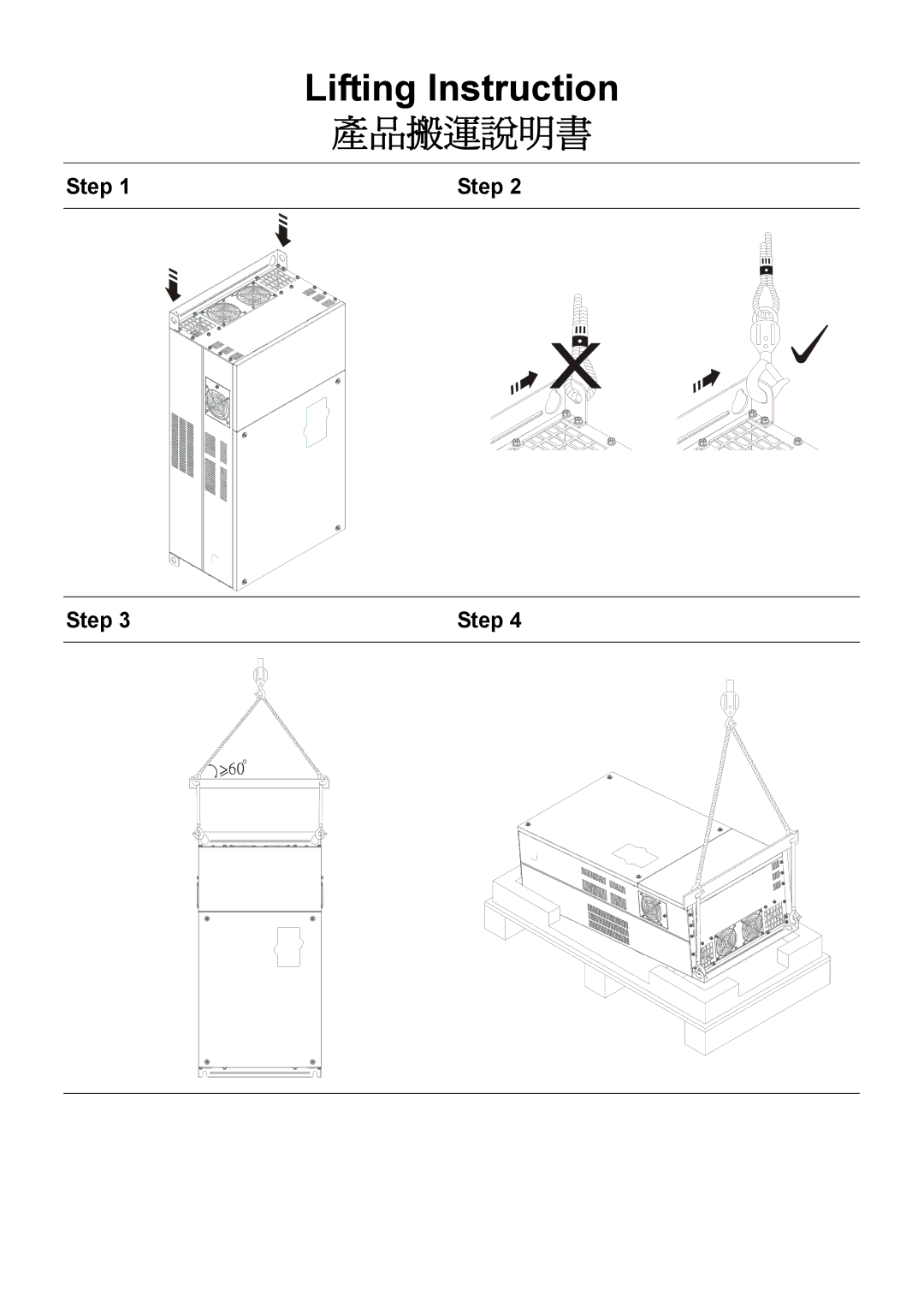

Lifting Instruction
Step
Step
