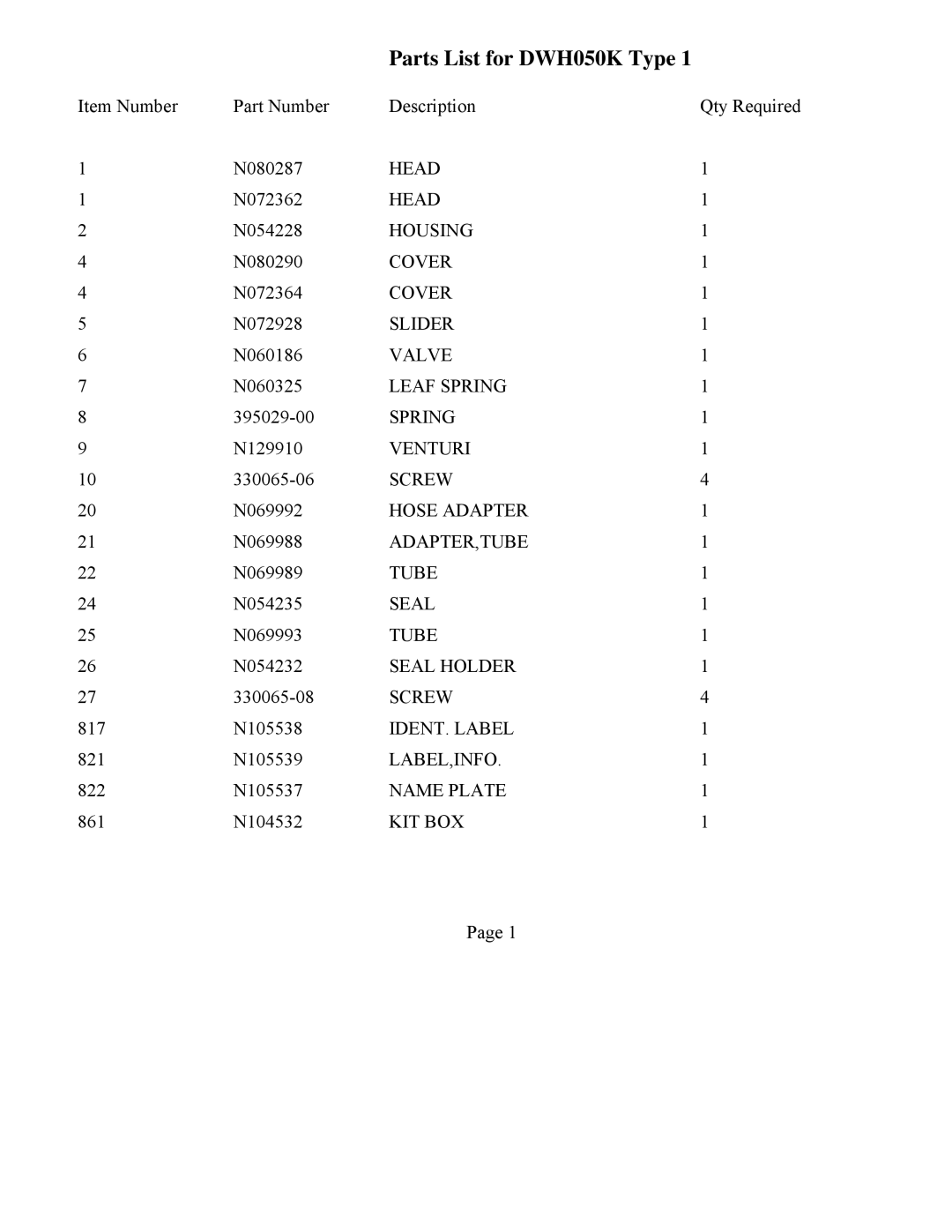

Parts List for DWH050K Type 1

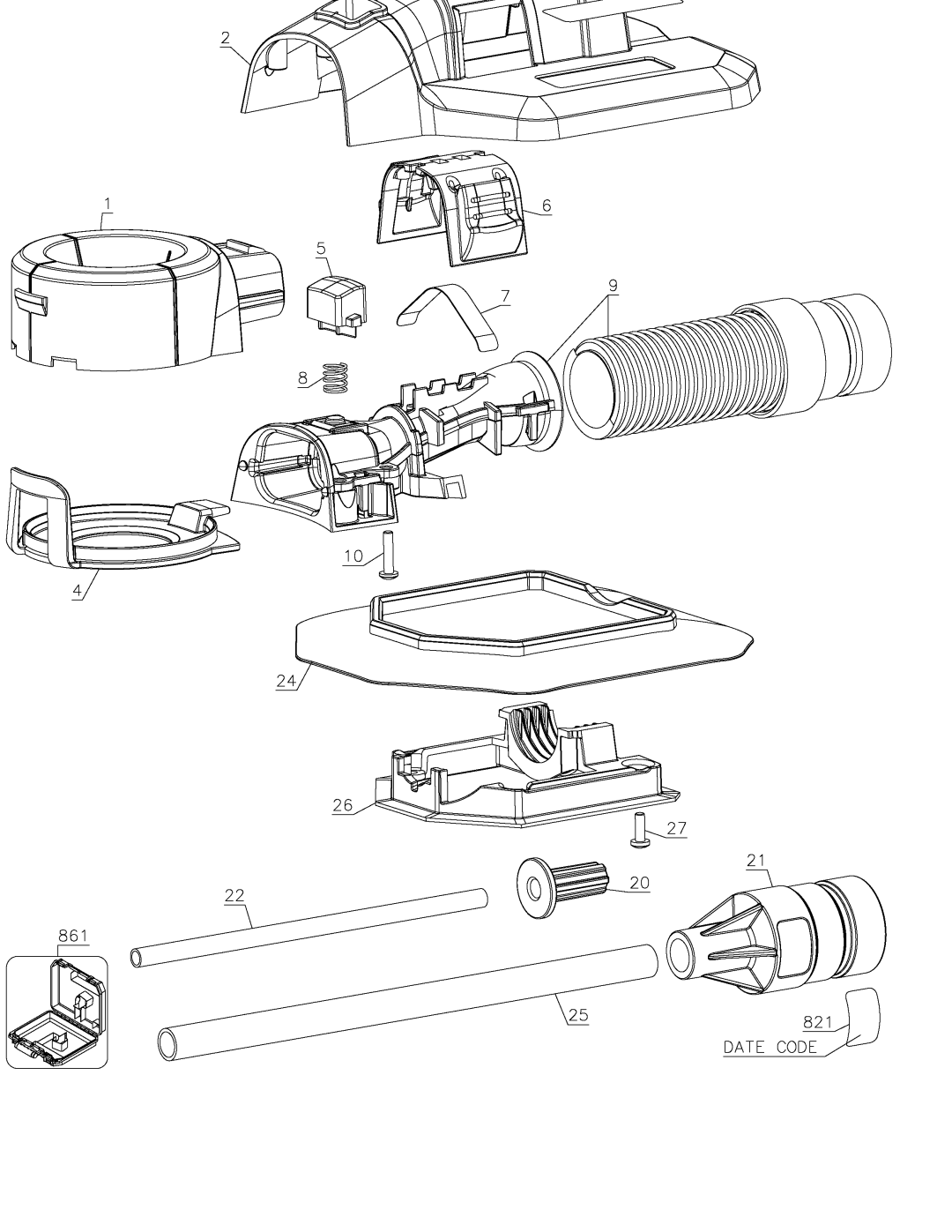

Item Number | Part Number | Description | Qty Required |
1 | N080287 | HEAD | 1 |
1 | N072362 | HEAD | 1 |
2 | N054228 | HOUSING | 1 |
4 | N080290 | COVER | 1 |
4 | N072364 | COVER | 1 |
5 | N072928 | SLIDER | 1 |
6 | N060186 | VALVE | 1 |
7 | N060325 | LEAF SPRING | 1 |
8 | SPRING | 1 | |
9 | N129910 | VENTURI | 1 |
10 | SCREW | 4 | |
20 | N069992 | HOSE ADAPTER | 1 |
21 | N069988 | ADAPTER,TUBE | 1 |
22 | N069989 | TUBE | 1 |
24 | N054235 | SEAL | 1 |
25 | N069993 | TUBE | 1 |
26 | N054232 | SEAL HOLDER | 1 |
27 | SCREW | 4 | |
817 | N105538 | IDENT. LABEL | 1 |
821 | N105539 | LABEL,INFO. | 1 |
822 | N105537 | NAME PLATE | 1 |
861 | N104532 | KIT BOX | 1 |
Page 1
