Diamond Multimedia HD 4550 PCIE specifications Diamond Multimedia - Specification Sheet, Brand Hd

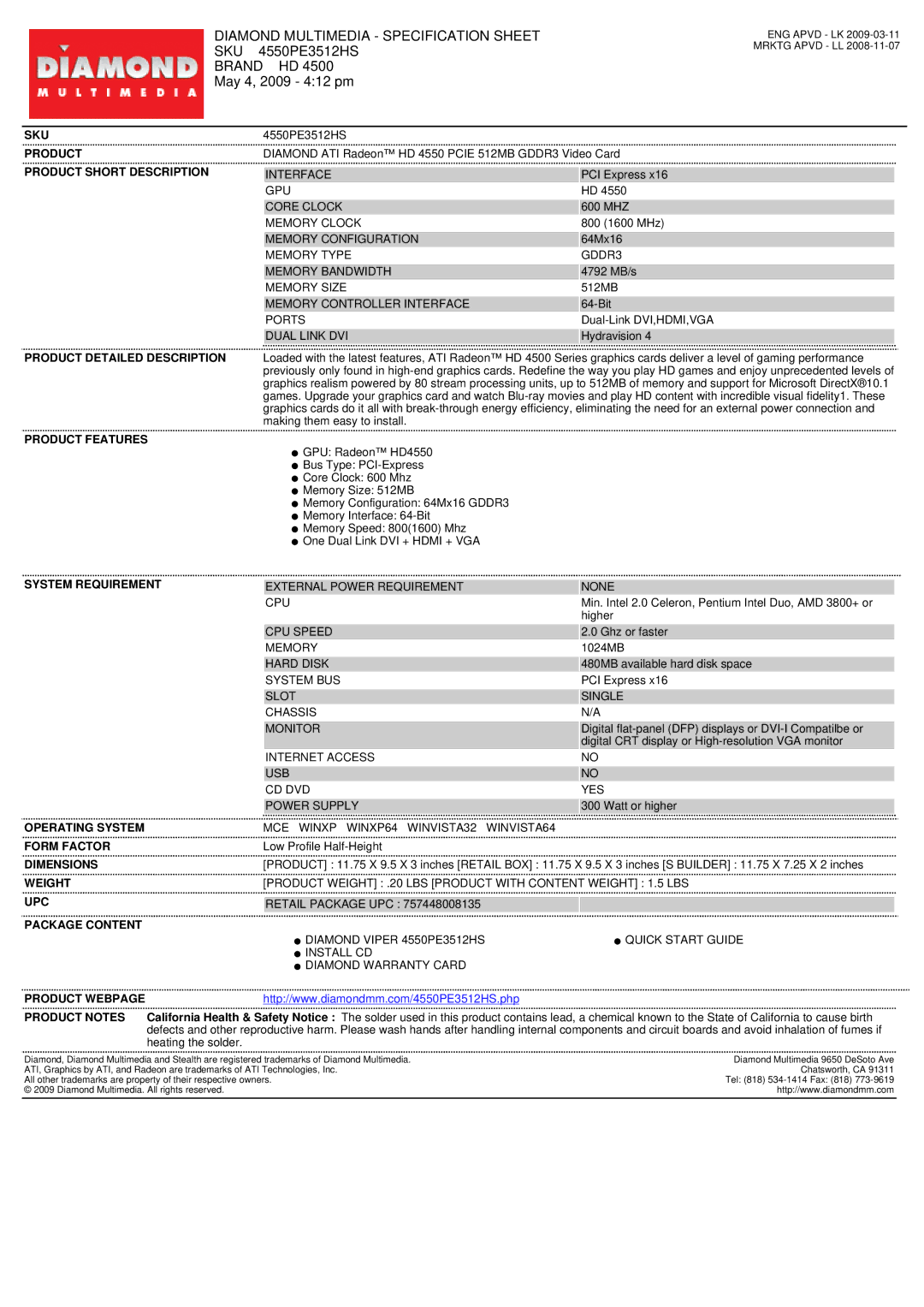

DIAMOND MULTIMEDIA - SPECIFICATION SHEET			ENG APVD - LK 2009-03-11
SKU	4550PE3512HS		MRKTG APVD - LL 2008-11-07
BRAND HD 4500
May 4, 2009 - 4:12 pm
SKU	4550PE3512HS
PRODUCT	DIAMOND ATI Radeon™ HD 4550 PCIE 512MB GDDR3 Video Card
PRODUCT SHORT DESCRIPTION
		INTERFACE	PCI Express x16
		GPU	HD 4550
		CORE CLOCK	600 MHZ
		MEMORY CLOCK	800 (1600 MHz)
		MEMORY CONFIGURATION	64Mx16
		MEMORY TYPE	GDDR3
		MEMORY BANDWIDTH	4792 MB/s
		MEMORY SIZE	512MB
		MEMORY CONTROLLER INTERFACE	64-Bit
		PORTS	Dual-Link DVI,HDMI,VGA
		DUAL LINK DVI	Hydravision 4
PRODUCT DETAILED DESCRIPTION	Loaded with the latest features, ATI Radeon™ HD 4500 Series graphics cards deliver a level of gaming performance
	previously only found in high-end graphics cards. Redefine the way you play HD games and enjoy unprecedented levels of
	graphics realism powered by 80 stream processing units, up to 512MB of memory and support for Microsoft DirectX®10.1

games. Upgrade your graphics card and watch Blu-ray movies and play HD content with incredible visual fidelity1. These graphics cards do it all with break-through energy efficiency, eliminating the need for an external power connection and making them easy to install.

PRODUCT FEATURES

● GPU: Radeon™ HD4550

● Bus Type: PCI-Express

● Core Clock: 600 Mhz

● Memory Size: 512MB

● Memory Configuration: 64Mx16 GDDR3

● Memory Interface: 64-Bit

● Memory Speed: 800(1600) Mhz

● One Dual Link DVI + HDMI + VGA

SYSTEM REQUIREMENT

OPERATING SYSTEM FORM FACTOR DIMENSIONS WEIGHT

UPC

PACKAGE CONTENT

EXTERNAL POWER REQUIREMENT	NONE
CPU	Min. Intel 2.0 Celeron, Pentium Intel Duo, AMD 3800+ or
	higher
CPU SPEED	2.0 Ghz or faster
MEMORY	1024MB
HARD DISK	480MB available hard disk space
SYSTEM BUS	PCI Express x16
SLOT	SINGLE
CHASSIS	N/A
MONITOR	Digital flat-panel (DFP) displays or DVI-I Compatilbe or
	digital CRT display or High-resolution VGA monitor
INTERNET ACCESS	NO
USB	NO
CD DVD	YES
POWER SUPPLY	300 Watt or higher
MCE WINXP WINXP64 WINVISTA32 WINVISTA64
Low Profile Half-Height

[PRODUCT] : 11.75 X 9.5 X 3 inches [RETAIL BOX] : 11.75 X 9.5 X 3 inches [S BUILDER] : 11.75 X 7.25 X 2 inches

[PRODUCT WEIGHT] : .20 LBS [PRODUCT WITH CONTENT WEIGHT] : 1.5 LBS

RETAIL PACKAGE UPC : 757448008135

● DIAMOND VIPER 4550PE3512HS	● QUICK START GUIDE
● INSTALL CD
● DIAMOND WARRANTY CARD

PRODUCT WEBPAGE	http://www.diamondmm.com/4550PE3512HS.php
PRODUCT NOTES	California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
	defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
	heating the solder.
