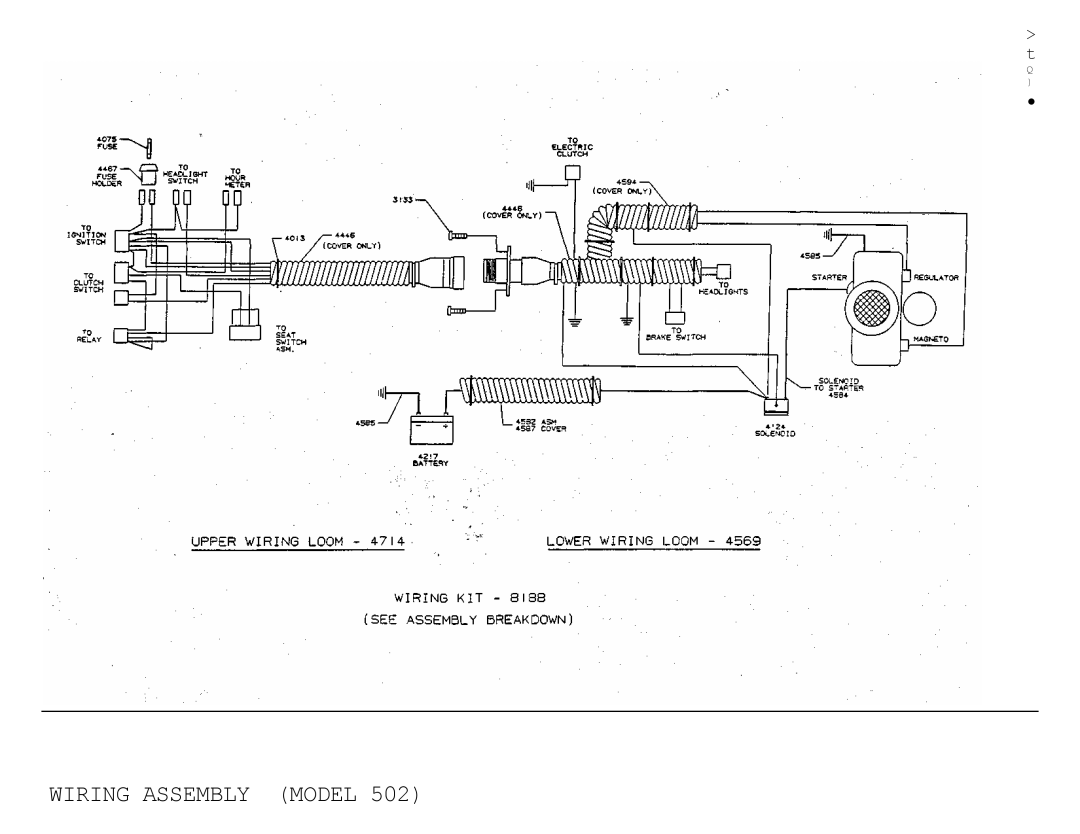

WIRING ASSEMBLY (MODEL 502)

Image 33

Dixon 502 manual Wiring Assembly Model

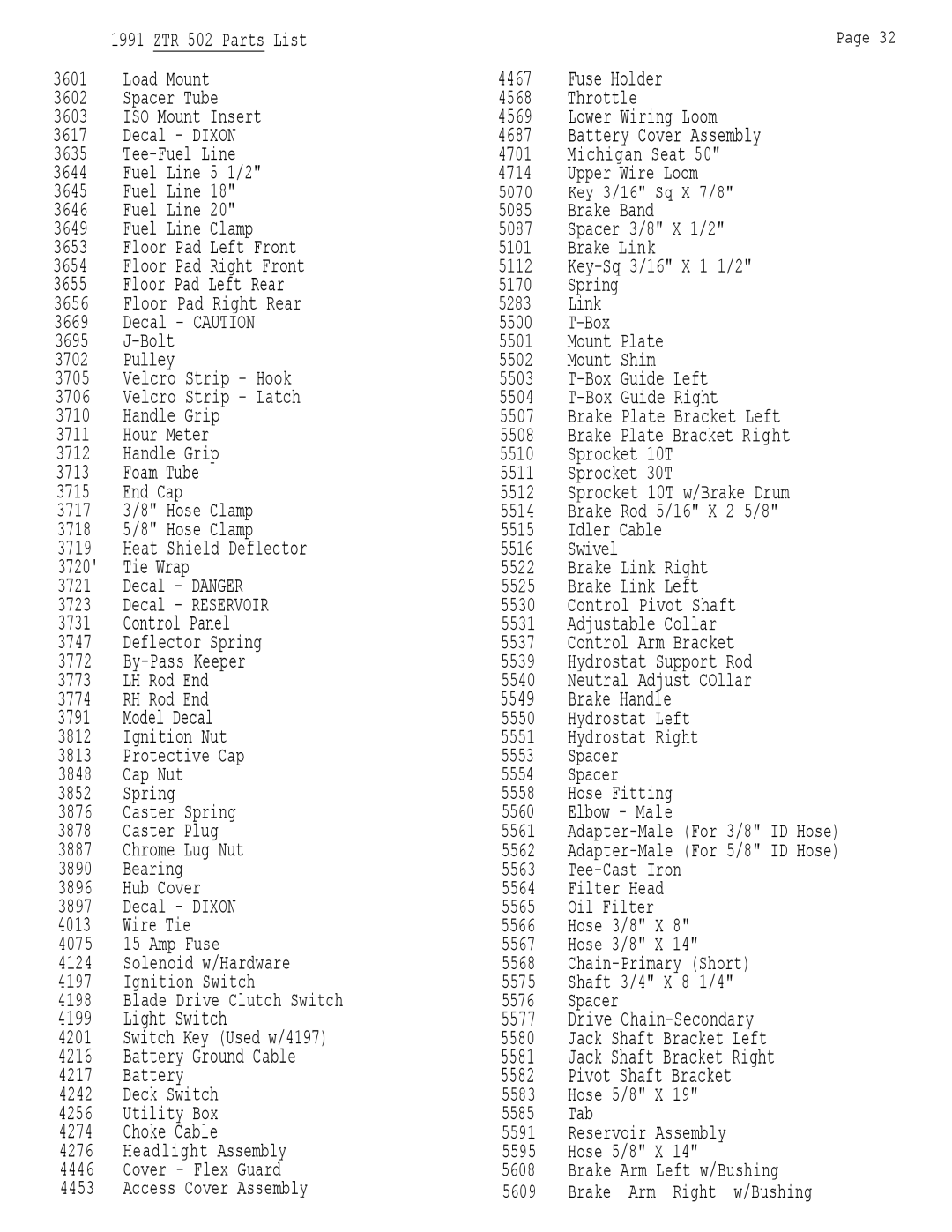

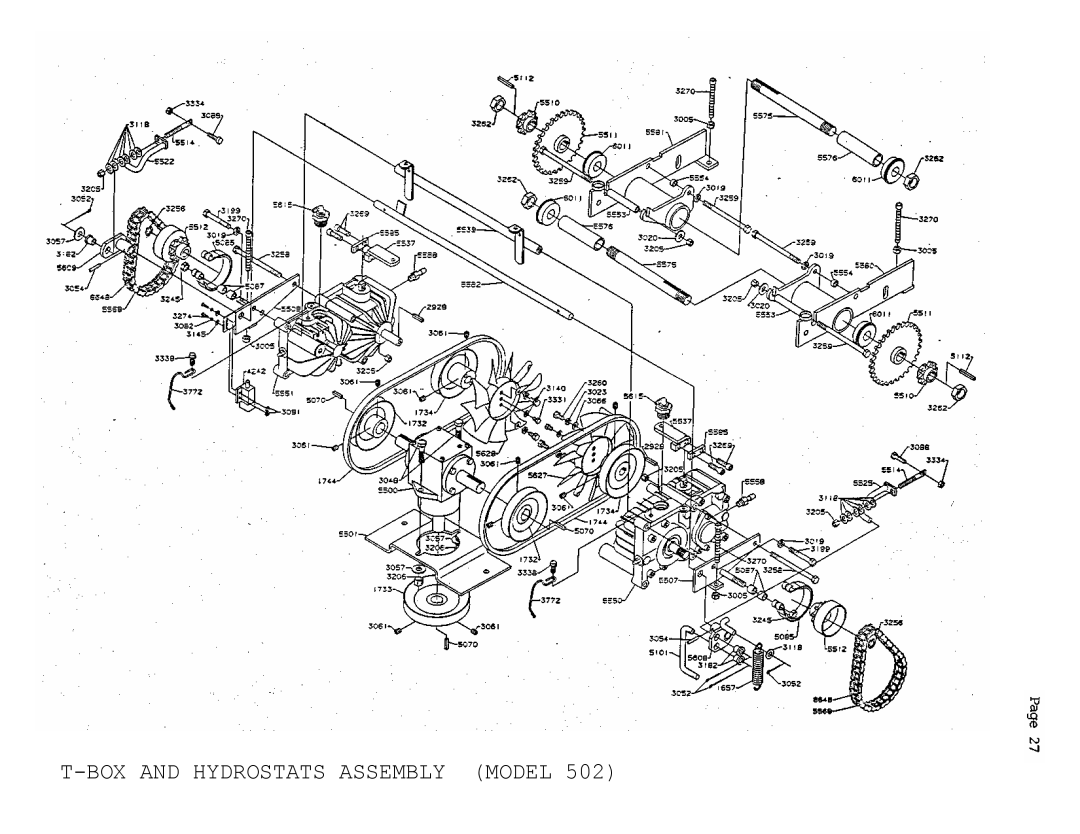

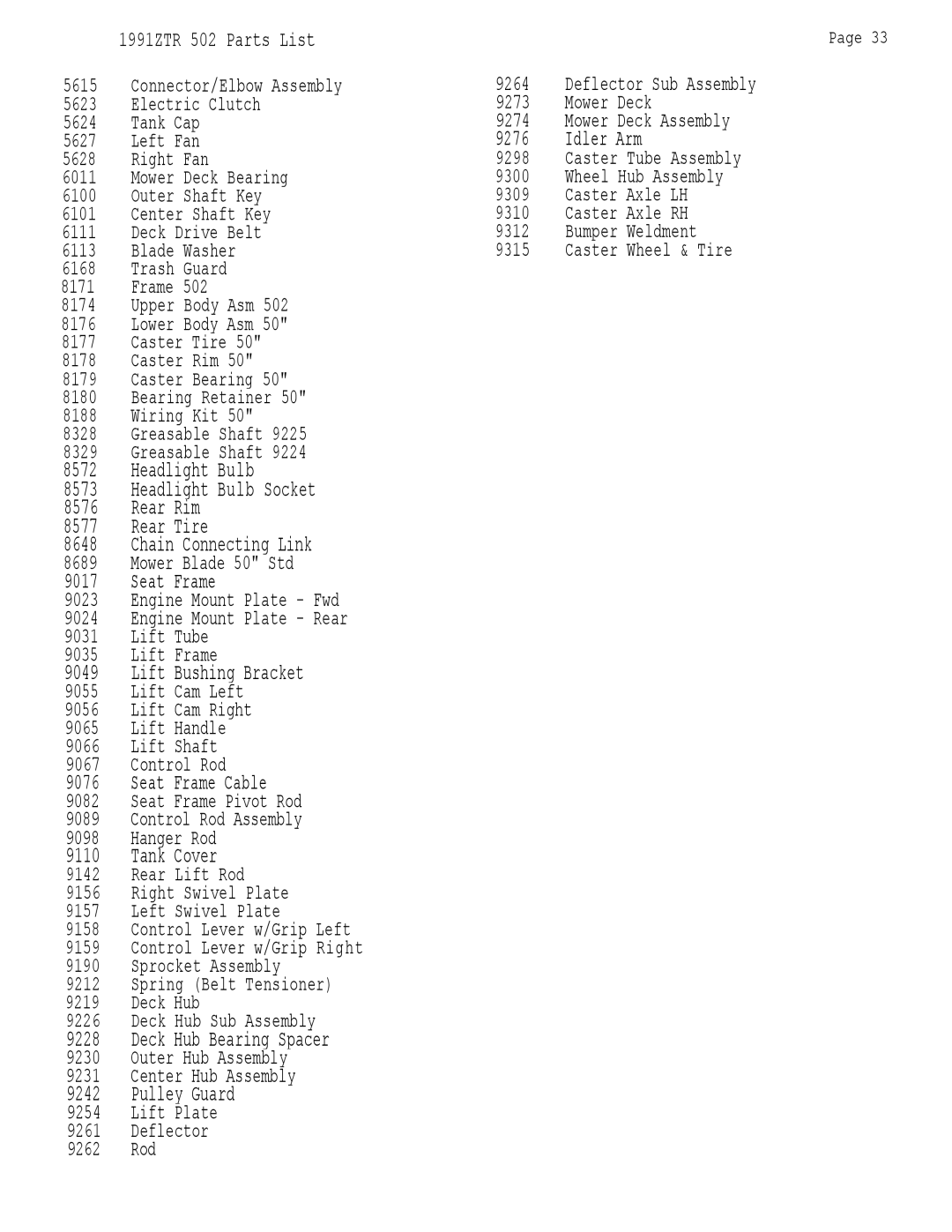

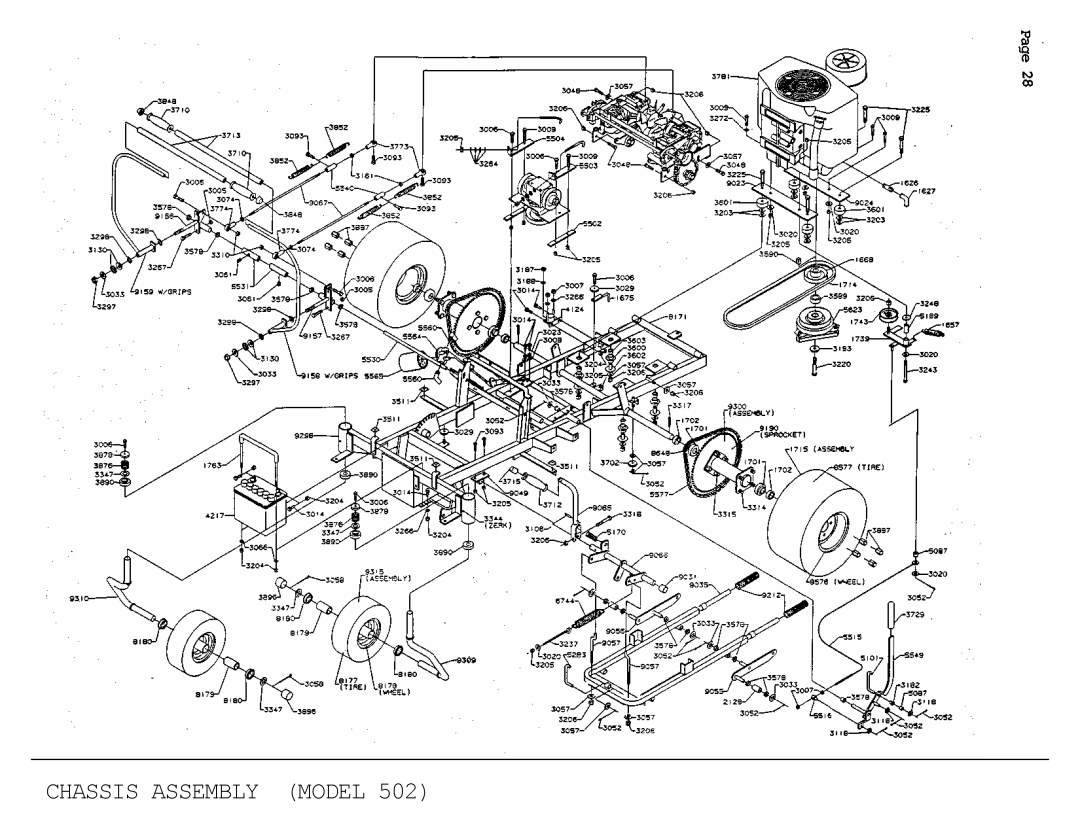

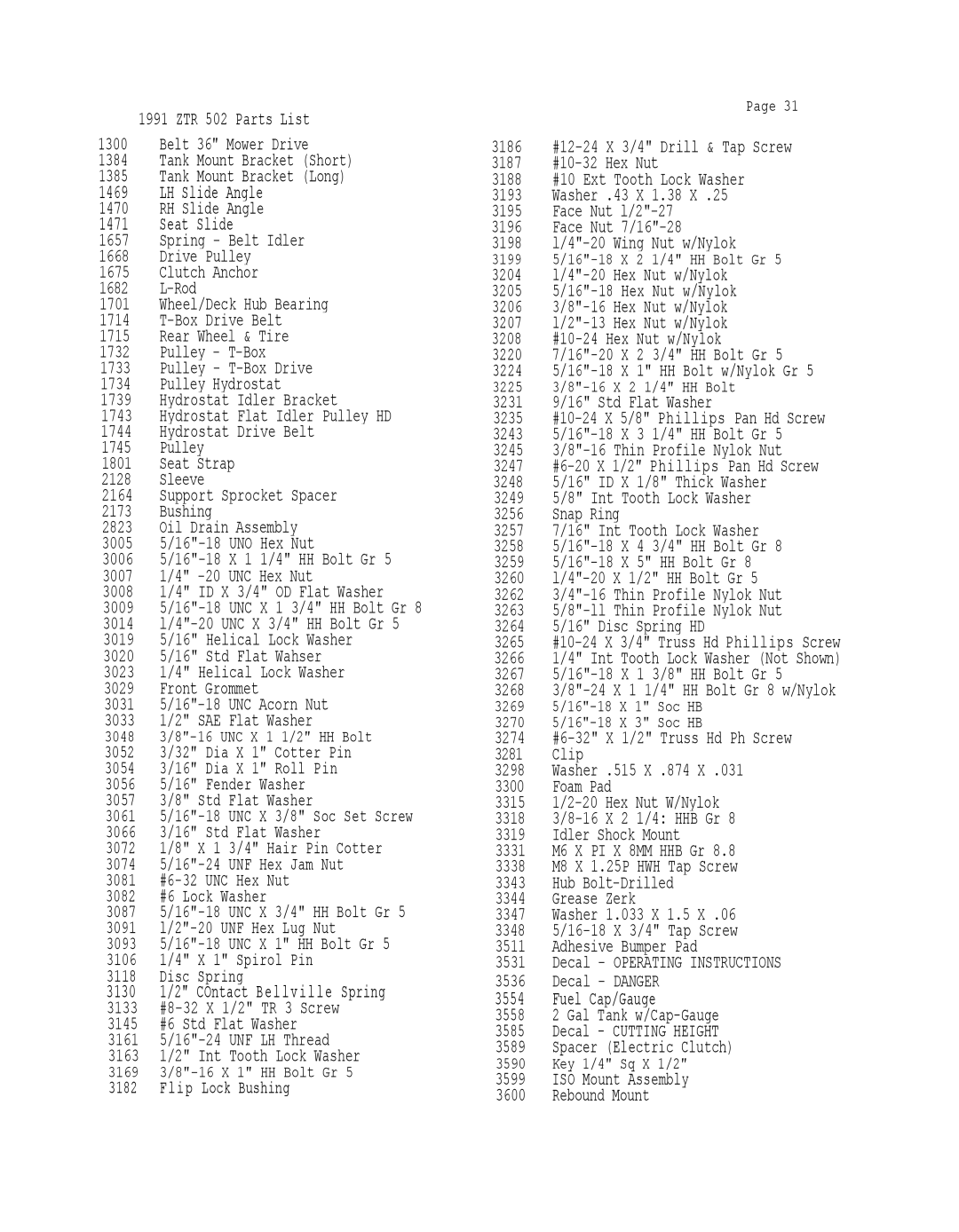

Contents

Page Index Safety Important Read Carefully See your dealer for warranty service, parts and repairs Satisfactory use of this product Always look behind you before backing up Safety Safety Reminders Read Carefully Before Operation Alcohol or drugs Safety RemindersPage Specifications Subject to Change Without Notice Blade Drive Warner electric clutchChassis 11 GA rectangular tube SET UP and Service Seat assembly instructions Seat Assembly Instructions Repeat above procedure on left side Raise rear body cover to fully open positionFlat washer and jam nut. See Illustration Position mower deck under chassis Mower Deck Installation Adjustment Points Leveling PrincipalsLeveling the Deck Final Preparation Remove battery from chassis No shifting or clutching required Sound judgment by the owner will prevent accidents Operation Instructions Light SwitchThrottle Control Lever Mower Deck CUT Height Lift Lever Maintenance Schedule Care and Maintenance Model Reverse procedure to re-install deck assembly Cutter Blade RemovalBelt Tension Repeat above procedures on opposite hydrostat Page Adjustment Points for T-BOX Belt Tension Forward lever stop adjustment Zerks used Primary and final driveEach front wheel caster Operation Care and Maintenance Model Cleaning the Mower Poor cut quality Trouble Shooting Mower CUT QualityImproper blades Uneven tire pressures Reduce mowing speed Side or the other Manual Drive adjustmentRepair Box belts slipping Mower Battery discharge Battery Required Battery water lowLow battery condition Clutch switch Deck Assembly Model 5O2 Body Assembly Model BOX and Hydrostats Assembly Model Chassis Assembly Model Fuel & Hydraulics Tanks & Fittings Assembly Model Wiring Assembly Model LH Slide Angle 1471 Seat SlideFuel Cap/Gauge 4013 Wire Tie 4569 Lower Wiring Loom4199 Light Switch 5577 Drive Chain-Secondary 4216 Battery Ground Cable 5581 Rear Rim Headlight BulbRear Tire Seat Frame
