DV604i

Multimedia DVD Receiver featuring a 6.2” digital TFT LCD

This Quick Start Guide gives you the basics to

start using your DV604i. Please visit

www.dualav.com/support/manuals.pdf to download a complete owner’s manual or call customer

service at 1-866-382-5476 (Monday-Friday, 9AM-5PM EST).

Installation

Copyright and Trademark Notes

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and

is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. DVD Logo is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries. SD Logo is a trademark of SD-3C, LLC. iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. Dual Electronics Corporation is not affiliated with Apple, Inc. Other trademarks and trade names are those of their respective owners.

Wiring Diagram - Inputs/Outputs

Control Locations

3

1

4



5



6



7

2

8



9



1.

Eject - Press to eject disc

6.

Power/Volume/Mute

2.

MicroSD Card

7.

Tune/Track Down

3.

Reset

8.

USB Slot

4.

Mode

9.

AV Input

5.

Tune/Track Up





Remote Control















1. Power

15. Audio



1

2

3

4

2.

Mode

16. Goto











3.

Play/Pause

17. EQ/Loud











4. Mute

18. Number keys









5

5.

Title

19. Root









27







6















6.

Sub Title

20.

OSD

26

















7







(On Screen Display)

25



















9

















8

7.

Setup

21.

Local/Random

24







10

8.

Angle







22.

Seek Down/

23







11











9.

Slow

22







12



Prevous Track

21







13















10.

Volume UP

23.

AS/PS/Repeat

20







14

19







15















11.

Zoom

24.

Stereo/Program

18









12.

Select

25.

Stop



















13.

Seek UP/Next Track

26.

Enter









16

14.

Volume Down

27.

Band









17

Audio Control

Tap VOL to select between Volume, Bass, Treble, Balance and Fader. You can adjust the level for each audio option by turning the rotary left and right.

Main Menu

In the Menu mode, press the desired icon

to enter the corresponding mode: Tuner, Disc, USB, iPod, microSD Card, AV Front , AV Rear, Camera or Setup.

Tuner Operation

1. Current Mode Indicator

2.Information Display

3.Tune Up

4.Tune Down

5. Mute On/OFF

6.Setup

7.EQ(Pop/Rock/Classic/Jazz)

8.Preset Station Display

9.LOC

10.LOUD

11.AS/PS

DVD Operations

CD Operations

iPod Operation

General Operation

One-Year Limited Warranty

•Call us toll-free at 1-866-382-5476

(Monday-Friday, 9:00 a.m. to 5:00 p.m. EST)

•E-mail us at cs@dualav.com

www.dualav.com

©2013 Dual Electronics Corp.

NSA0314-V02

Printed in China

Page 1 Page 1
Page 1
Image 1

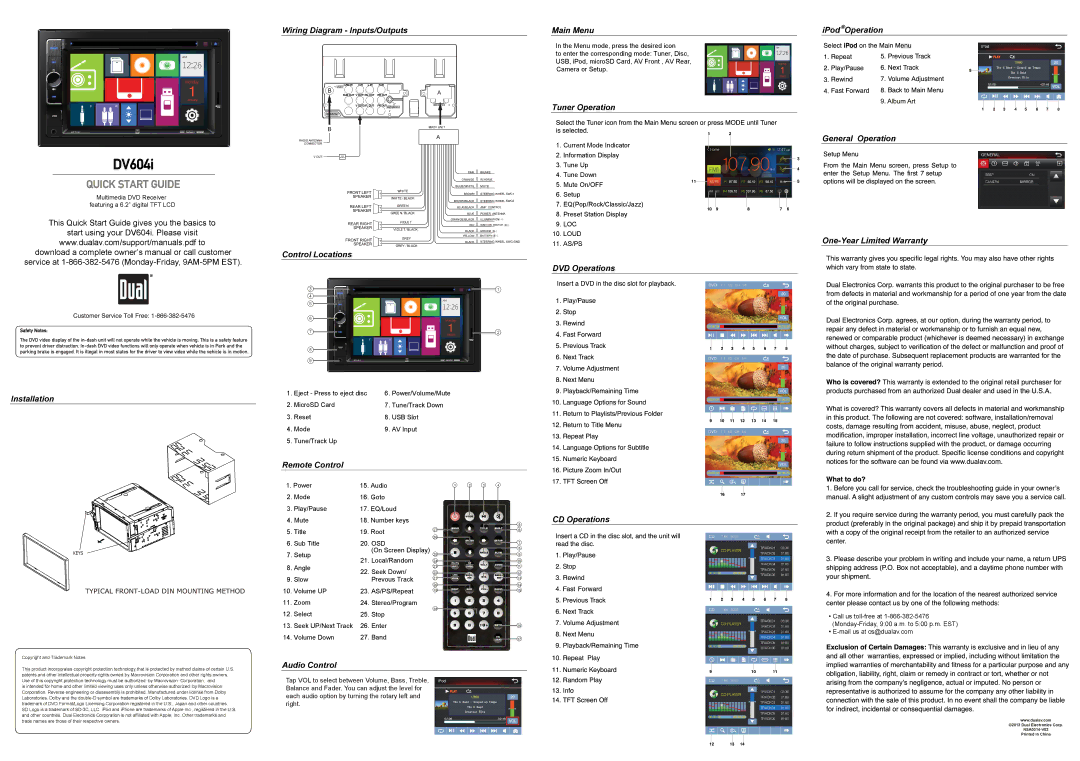

Dual DV604i warranty Installation, Wiring Diagram Inputs/Outputs Control Locations, Remote Control, Audio Control
