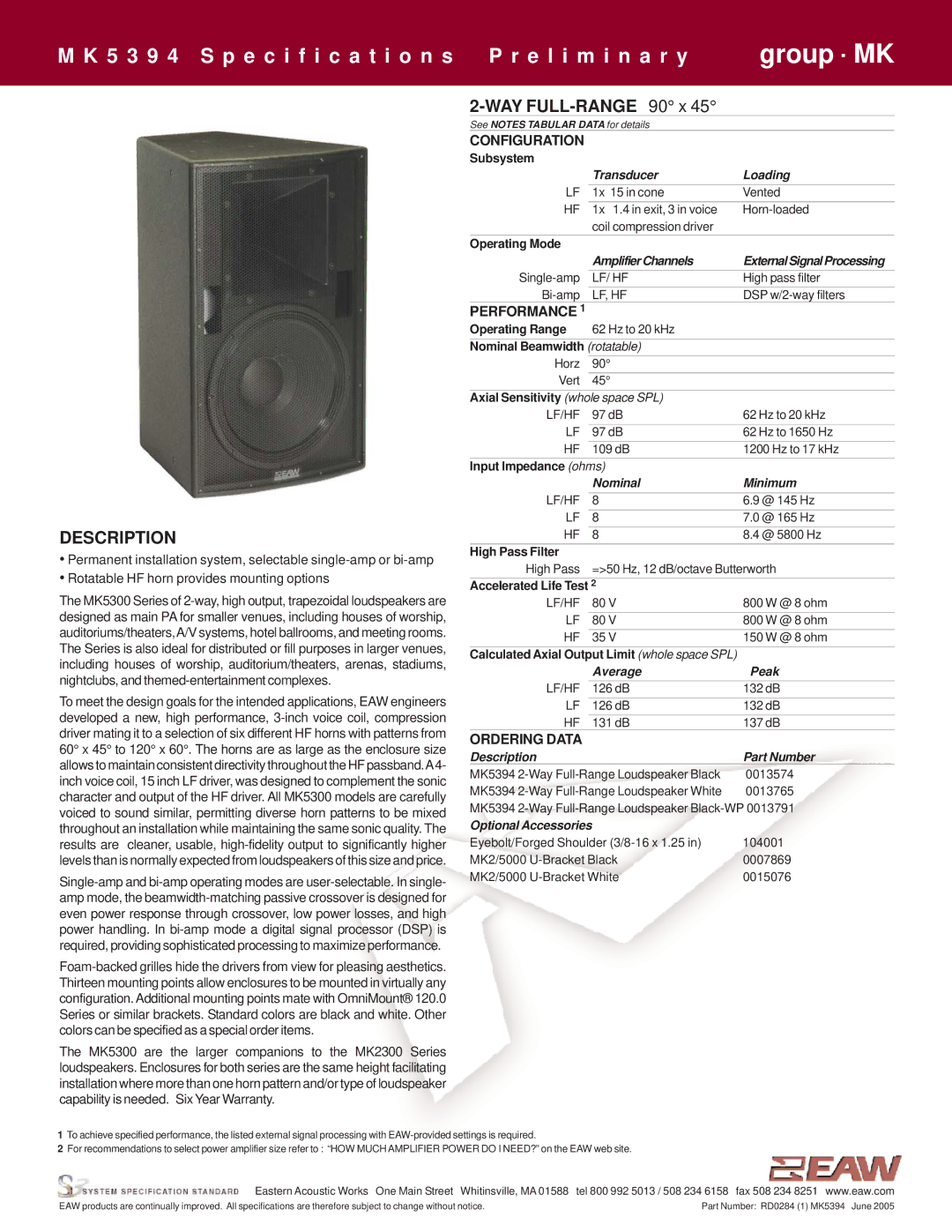

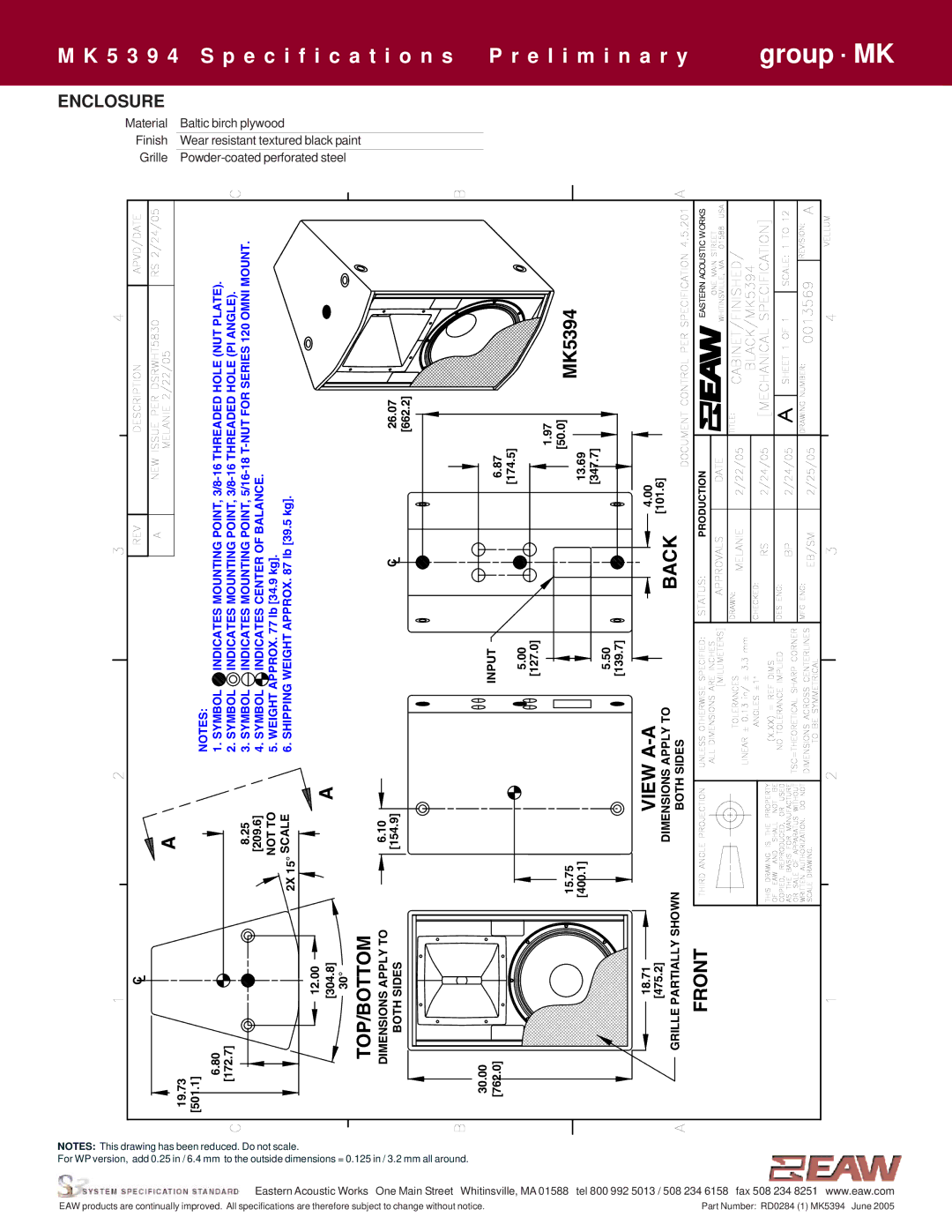

M K 5 3 9 4 S p e c i f i c a t i o n s P r e l i m i n a r y

group · MK





DESCRIPTION

Permanent installation system, selectable single-amp or bi-amp

Rotatable HF horn provides mounting options

2-WAY FULL-RANGE 90° x 45°

See NOTES TABULAR DATA for details

CONFIGURATION

Subsystem

Transducer

Loading

LF

1x 15 in cone

Vented

HF

1x 1.4 in exit, 3 in voice

Horn-loaded



coil compression driver



Operating Mode

AmplifierChannels

ExternalSignalProcessing

Single-amp

LF/ HF

High pass filter

Bi-amp

LF, HF

DSP w/2-way filters

PERFORMANCE 1





Operating Range

62 Hz to 20 kHz



Nominal Beamwidth (rotatable)



Horz

90°



Vert

45°



Axial Sensitivity (whole space SPL)



LF/HF

97 dB

62 Hz to 20 kHz

LF

97 dB

62 Hz to 1650 Hz

HF

109 dB

1200 Hz to 17 kHz

Input Impedance (ohms)



LF/HF

Nominal

Minimum

8

6.9 @ 145 Hz

LF

8

7.0 @ 165 Hz

HF

8

8.4 @ 5800 Hz

High Pass Filter





High Pass

=>50 Hz, 12 dB/octave Butterworth

Accelerated Life Test 2

The MK5300 Series of 2-way, high output, trapezoidal loudspeakers are designed as main PA for smaller venues, including houses of worship, auditoriums/theaters,A/V systems, hotel ballrooms, and meeting rooms. The Series is also ideal for distributed or fill purposes in larger venues, including houses of worship, auditorium/theaters, arenas, stadiums, nightclubs, and themed-entertainment complexes.

To meet the design goals for the intended applications, EAW engineers developed a new, high performance, 3-inch voice coil, compression driver mating it to a selection of six different HF horns with patterns from 60° x 45° to 120° x 60°. The horns are as large as the enclosure size allows to maintain consistent directivity throughout the HF passband.A4- inch voice coil, 15 inch LF driver, was designed to complement the sonic character and output of the HF driver. All MK5300 models are carefully voiced to sound similar, permitting diverse horn patterns to be mixed throughout an installation while maintaining the same sonic quality. The results are cleaner, usable, high-fidelity output to significantly higher levels than is normally expected from loudspeakers of this size and price.

Single-amp and bi-amp operating modes are user-selectable. In single- amp mode, the beamwidth-matching passive crossover is designed for even power response through crossover, low power losses, and high power handling. In bi-amp mode a digital signal processor (DSP) is required, providing sophisticated processing to maximize performance.

Foam-backed grilles hide the drivers from view for pleasing aesthetics. Thirteen mounting points allow enclosures to be mounted in virtually any configuration. Additional mounting points mate with OmniMount® 120.0 Series or similar brackets. Standard colors are black and white. Other colors can be specified as a special order items.

The MK5300 are the larger companions to the MK2300 Series loudspeakers. Enclosures for both series are the same height facilitating installation where more than one horn pattern and/or type of loudspeaker capability is needed. Six Year Warranty.

LF/HF

80 V

800 W @ 8 ohm

LF



80 V

800 W @ 8 ohm

HF



35 V

150 W @ 8 ohm

Calculated Axial Output Limit (whole space SPL)



LF/HF



Average

Peak



126 dB

132 dB

LF



126 dB

132 dB

HF



131 dB

137 dB

ORDERING DATA





Description



Part Number

MK5394 2-Way Full-Range Loudspeaker Black

0013574

MK5394 2-Way Full-Range Loudspeaker White

0013765

MK5394 2-Way Full-Range Loudspeaker Black-WP 0013791

Optional Accessories





Eyebolt/Forged Shoulder (3/8-16 x 1.25 in)

104001

MK2/5000 U-Bracket Black

0007869

MK2/5000 U-Bracket White

0015076

1To achieve specified performance, the listed external signal processing with EAW-provided settings is required.

2For recommendations to select power amplifier size refer to : “HOW MUCH AMPLIFIER POWER DO I NEED?” on the EAW web site.

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com

EAW products are continually improved. All specifications are therefore subject to change without notice.

Part Number: RD0284 (1) MK5394 June 2005

Page 1
Image 1
EAW MK5394 specifications Description, Configuration, Performance, Ordering Data

MK5394 specifications
