LC-4300: Your Best Value in Portable Multimedia.

KEY FEATURES:

High-impact picture with 450 Lumens brightness.

Lightweight, easy to carry... the ideal portable PC companion.

New RS-232 control cable and software permits remote control of the projector from the computer.

Three polysilicon LCD panels with 921,600 pixels total, 550 TV lines resolution and 16.7 million colors.

Built-in preset keystone elimination makes it perfect for desktop presentations.

OTHER IMPORTANT FEATURES:

Short-throw lens projects image sizes from 30 to 300 diagonal.

• High light output, long-life 200 -Watt, Metal Halide lamp.

• Instant rear screen projection button.

• Digital on-screen menu display.

• Complete all-in-one system with built-in 3-watt speaker/amplifier.

LC-4300 SPECIFICATIONS:

Screen Brightness

. . . . . . . .

. . . . . . . . . . . . . . .450 ANSI Lumens

Illumination Uniformity

. . . . . . . . . . . . . . . . . . . . . . . . . .90%

Size of Color Palette

. . . . . . . . . . . . . . . . . . . .16.7 Million

Contrast Ratio . .

. . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .100 :1

Horizontal Resolution

. . . . . . . . . . . . . . . . . . .550 TV Lines

Projection Lamp .

. . . . . . . . . .

. . .200-Watt, Long-Life Metal-Halide

Light - RGB Distribution

. . . . . . . . . . .Dichroic Mirror System

Imaging System

. . . . .3 x 1.3” polysilicon TFT panels

Screen Pixels

. . . . . . . . . . . . . . .640x480 =307,200

Total Pixels

. . . . . . . . .

. . . . . . . . . .(307,200 x 3 ) = 921,600

Lens Type

. . . . . . . . .

. . . . . . . . . .Manual Zoom and Focus

Image Min. - Max. (Diag.) . . .

. . . . . . . . . . . . . .30” - 300” diagonal

Image Min. - Max. (Wide) . . .

. . . . . . . . . .2’- 20’ (1.59m - 15.93m)

Throw - Min. - Max

. . . . . . .5.2’ - 52.3’ (1.59m - 15.93m)

Width-to-Throw Factor

. . . . . . . . . . . . . . . .Approx. 2.0 - 2.6

Elevation: Front

. . . . . . . . . . . . . . . . . . . . .8 degrees

Keystone Elimination

Built-In Offset, Ratio (Bottom:Top) 1:9

Scanning

. . .Auto: H Sync. 15-37.9kHz; V Sync. 50-70kHz

Image Orientation

. . . . . . . .

. . . . . . . .Normal, Reversed, Inverted

Remote Control .

. . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .Infrared

Computer Standards

. . . . . . . . . . .VGA, EGA, CGA, MAC

Computer Channels

. . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Computer Inputs

. . . . .Supplied VGA& MAC Cable to HDB 15 x 1

SPECIFICATIONS (cont.)

Computer Monitor Out . . . . . . . . . . . . . . . . . . . . . . . . .HDB 15 x 1 Computer Audio In . . . . . . . . . . . . . . . . . . . . . . . . . .RCAx 2 (L/R) Video Standards . . . . . . . . . . . . . . .NTSC/PAL/SECAM/NTSC 4.43 Video Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Video Input . . . . . . . . . . . . . . . . . . .RCAx 1, BNC x 1, S-Video x 1 Video Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCAx 1 Video Audio Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCAx 2 Audio - Amplifier . . . . . . . . . . . . . . .3 Watts RMS mono (THD 10%) Audio - Built-in Speaker . . . . . . . . . . . . . .2” x 3.5” (5cm x 9cm) x 1 Audio - Audio Monitor . . . . . . . . . . . . . . . . . . . . . . . .RCAx 2 (L/R) Audio - Speaker Output . . . . . . . . . . . . . . . . . . . . . . . .MiniJack x 1 Size (HxWxD) . . . . . . . .6.2” x 16.8” x 15” (158 x 430 x 385 mm) Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21.8 Lb. (9.9 kg) Power Requirements . . . . . . . . . . . . . . . . . . . . . . .120V 50/60 Hz Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . .285 Watts Power Cord . . . . . . . . . . . . . . . . . . . .10’ (3M) Type 3, Detachable Safety Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ULListed Warranty - Projector . . . . . . . . . . . . . . . . . . . .1 Year Parts & Labor Warranty - Projection Lamp . . . . . . . . . . .90 Days Or 2,000 Hours,

Whichever Occurs First.

Specifications subject to change without notice.

©1997 EIKI International, Inc.

Printed in the USA. 1/8/97

A-Key to better communications.

Eiki International, Inc., 26794 Vista Terrace Dr., Lake Forest, CA 92630 Phone: 800-242-3454; Fax: 800-457-3454, E-mail: eikiusa@ibm.net

EIKI CANADA, 355 Cranston Cres., P.O. Box 156, Midland, ON L4R 4K8 Tel: 800-563-3454, Fax: 800-567-4069 E-mail: eikicda@eiki.ca

Visit our World Wide Web site: http://www.eiki.ca

Page 1

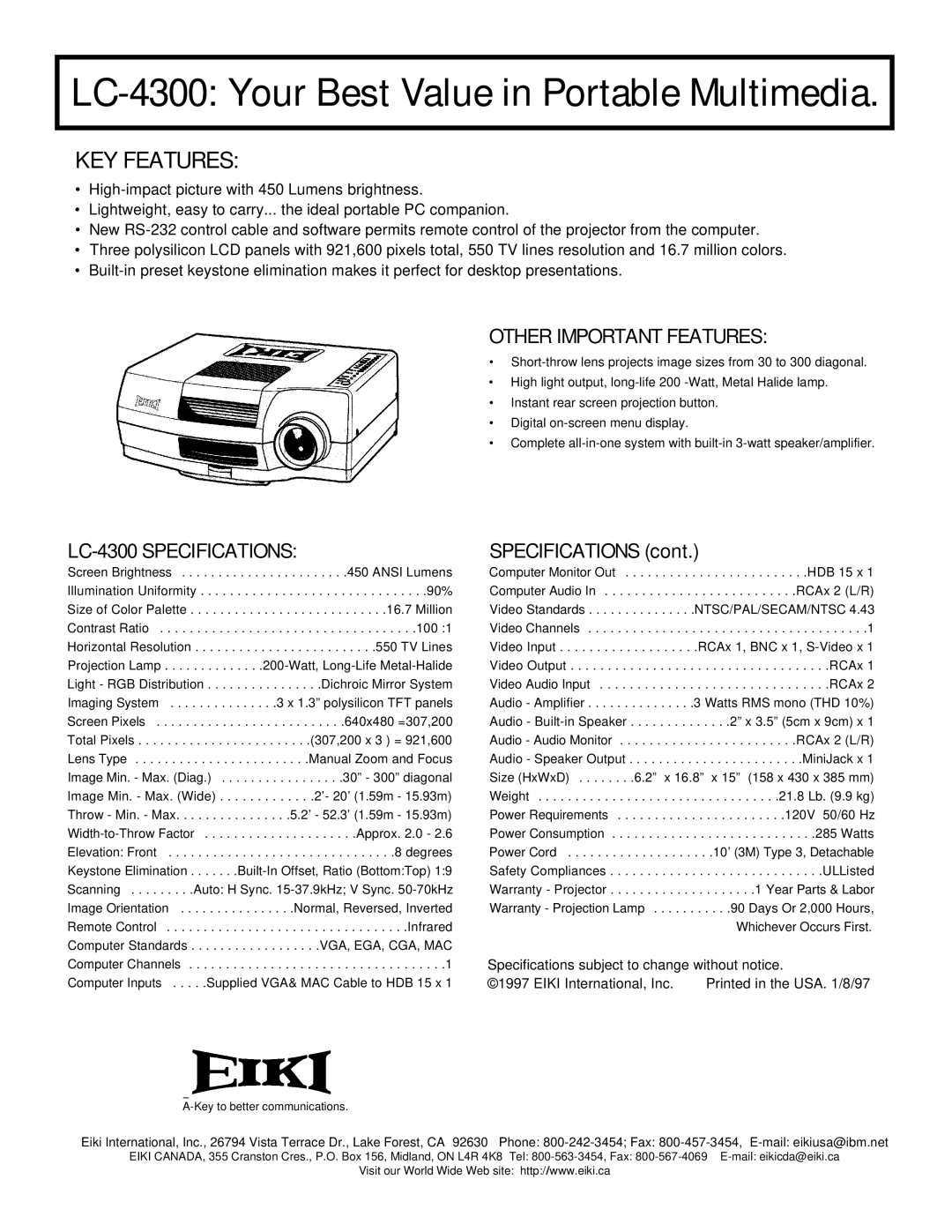

Image 1
Eiki specifications LC-4300 Your Best Value in Portable Multimedia, KEY Features, Other Important Features

LC-4300 specifications

The Eiki LC-4300 is a versatile and advanced LCD projector designed for a variety of applications, from business presentations to educational settings. It combines cutting-edge technology with user-friendly features to deliver high-quality images and seamless operation.

One of the standout features of the Eiki LC-4300 is its impressive brightness rating. With a luminous output of up to 4,200 ANSI lumens, this projector is capable of producing vivid images even in well-lit environments. This makes it an ideal choice for conference rooms, classrooms, and other venues where ambient light can be a challenge. The projector also boasts a high contrast ratio, allowing for deeper blacks and more dynamic color representations, essential for showcasing detailed graphics and video content.

The LC-4300 utilizes advanced LCD technology, which contributes to its exceptional color accuracy and image clarity. With a native resolution of 1024 x 768 (XGA), the projector ensures that presentations are sharp and detailed, while also supporting higher resolutions for more demanding applications. This flexibility allows users to connect a range of devices, from laptops to Blu-ray players, without compromising image quality.

Another key characteristic of the Eiki LC-4300 is its connectivity options. The projector comes equipped with multiple input ports, including HDMI, VGA, and USB, enabling easy connection to various sources. This versatility is particularly beneficial in multi-user environments, where different users may need to connect their devices quickly and efficiently.

In terms of operational efficiency, the Eiki LC-4300 features a lamp life of up to 5,000 hours in normal mode, and even longer in eco mode. This helps lower maintenance costs and reduces the need for frequent replacements. The projector is also designed with eco-friendly considerations, as it consumes less power while operating, thus making it suitable for environmentally conscious organizations.

Ease of use is another hallmark of the LC-4300, with intuitive controls and a user-friendly interface that simplifies setup and operation. It also includes a range of image adjustment features, such as keystone correction and zoom functionality, enabling users to achieve the perfect image projection regardless of the installation environment.

Overall, the Eiki LC-4300 stands out as a robust and reliable solution for anyone in need of a high-performance projector. Whether for corporate presentations or educational lectures, this model delivers impressive performance and ease of use, making it a worthy investment for a wide range of applications.
