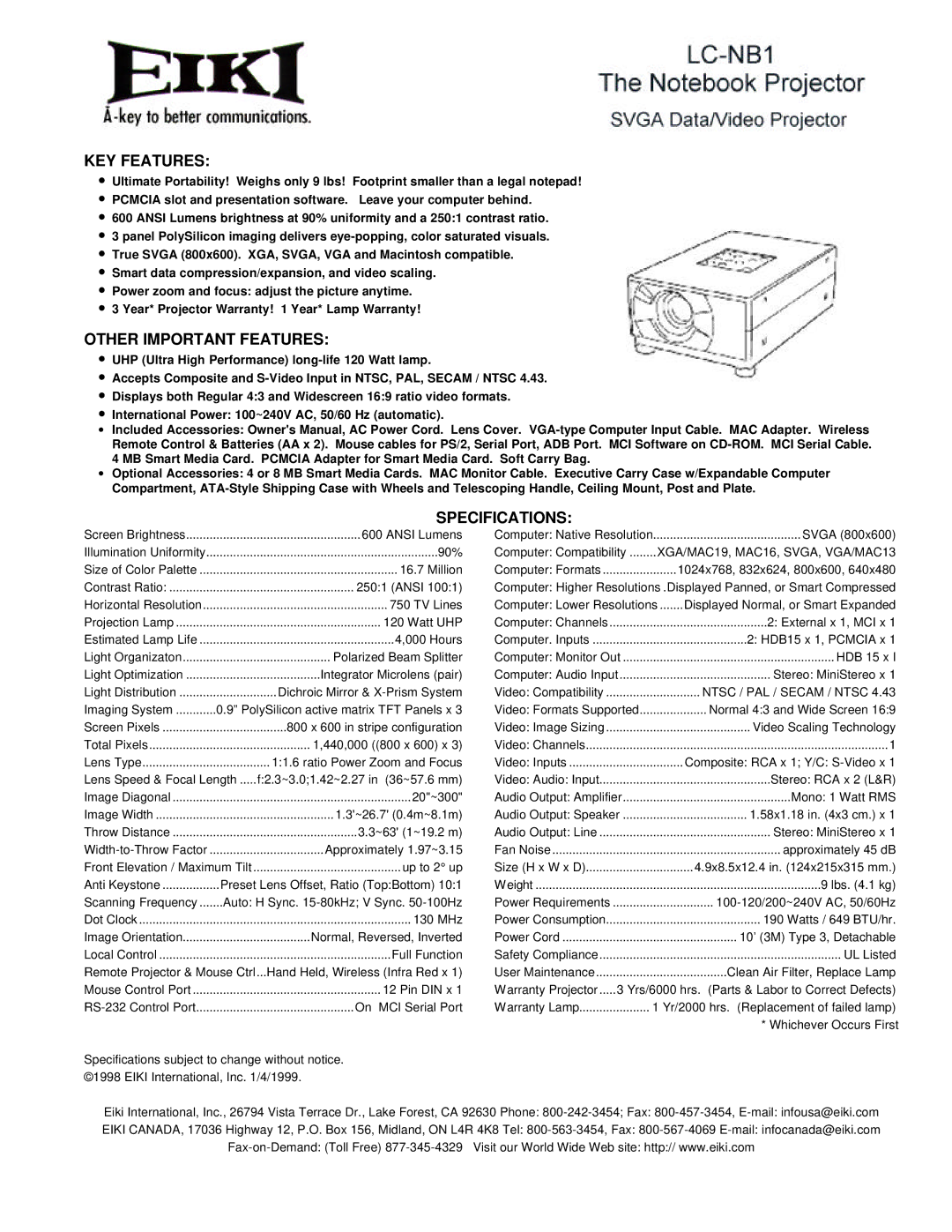

KEY FEATURES:
∙Ultimate Portability! Weighs only 9 lbs! Footprint smaller than a legal notepad!
∙PCMCIA slot and presentation software. Leave your computer behind.
∙600 ANSI Lumens brightness at 90% uniformity and a 250:1 contrast ratio.
∙3 panel PolySilicon imaging delivers
∙True SVGA (800x600). XGA, SVGA, VGA and Macintosh compatible.
∙Smart data compression/expansion, and video scaling.
∙Power zoom and focus: adjust the picture anytime.
∙3 Year* Projector Warranty! 1 Year* Lamp Warranty!
OTHER IMPORTANT FEATURES:
∙UHP (Ultra High Performance)
∙Accepts Composite and
∙Displays both Regular 4:3 and Widescreen 16:9 ratio video formats.
∙International Power: 100~240V AC, 50/60 Hz (automatic).
∙Included Accessories: Owner's Manual, AC Power Cord. Lens Cover.
∙Optional Accessories: 4 or 8 MB Smart Media Cards. MAC Monitor Cable. Executive Carry Case w/Expandable Computer Compartment,
SPECIFICATIONS:
Screen Brightness | 600 ANSI Lumens | |
Illumination Uniformity | 90% | |
Size of Color Palette | 16.7 Million | |
Contrast Ratio: | 250:1 (ANSI 100:1) | |
Horizontal Resolution | 750 TV Lines | |
Projection Lamp | 120 Watt UHP | |
Estimated Lamp Life | 4,000 Hours | |
Light Organizaton | Polarized Beam Splitter | |
Light Optimization | Integrator Microlens (pair) | |
Light Distribution | Dichroic Mirror & | |
Imaging System | 0.9” PolySilicon active matrix TFT Panels x 3 | |
Screen Pixels | 800 x 600 in stripe configuration | |
Total Pixels | 1,440,000 ((800 x 600) x 3) | |
Lens Type | 1:1.6 ratio Power Zoom and Focus | |
Lens Speed & Focal Length | f:2.3~3.0;1.42~2.27 in (36~57.6 mm) | |
Image Diagonal | 20"~300" | |
Image Width | 1.3'~26.7' (0.4m~8.1m) | |
Throw Distance | 3.3~63' (1~19.2 m) | |
Approximately 1.97~3.15 | ||
Front Elevation / Maximum Tilt | up to 2° up | |
Anti Keystone | Preset Lens Offset, Ratio (Top:Bottom) 10:1 | |
Scanning Frequency | Auto: H Sync. | |
Dot Clock | 130 MHz | |
Image Orientation | Normal, Reversed, Inverted | |
Local Control | Full Function | |
Remote Projector & Mouse Ctrl... | Hand Held, Wireless (Infra Red x 1) | |
Mouse Control Port | 12 Pin DIN x 1 | |
On MCI Serial Port |
Specifications subject to change without notice. ©1998 EIKI International, Inc. 1/4/1999.
Computer: Native Resolution | ............................................ SVGA (800x600) |
Computer: Compatibility | XGA/MAC19, MAC16, SVGA, VGA/MAC13 |
Computer: Formats | 1024x768, 832x624, 800x600, 640x480 |
Computer: Higher Resolutions .Displayed Panned, or Smart Compressed
Computer: Lower Resolutions | Displayed Normal, or Smart Expanded |
Computer: Channels | 2: External x 1, MCI x 1 |
Computer. Inputs | 2: HDB15 x 1, PCMCIA x 1 |
Computer: Monitor Out | HDB 15 x I |
Computer: Audio Input | Stereo: MiniStereo x 1 |
Video: Compatibility | NTSC / PAL / SECAM / NTSC 4.43 |
Video: Formats Supported | Normal 4:3 and Wide Screen 16:9 |
Video: Image Sizing | Video Scaling Technology |
Video: Channels | 1 |
Video: Inputs | Composite: RCA x 1; Y/C: |
Video: Audio: Input | Stereo: RCA x 2 (L&R) |
Audio Output: Amplifier | Mono: 1 Watt RMS |
Audio Output: Speaker | 1.58x1.18 in. (4x3 cm.) x 1 |
Audio Output: Line | Stereo: MiniStereo x 1 |
Fan Noise | approximately 45 dB |
Size (H x W x D) | 4.9x8.5x12.4 in. (124x215x315 mm.) |
Weight | 9 lbs. (4.1 kg) |
Power Requirements | |
Power Consumption | 190 Watts / 649 BTU/hr. |
Power Cord | 10’ (3M) Type 3, Detachable |
Safety Compliance | UL Listed |
User Maintenance | Clean Air Filter, Replace Lamp |
Warranty Projector | 3 Yrs/6000 hrs. (Parts & Labor to Correct Defects) |
Warranty Lamp | 1 Yr/2000 hrs. (Replacement of failed lamp) |
| * Whichever Occurs First |
