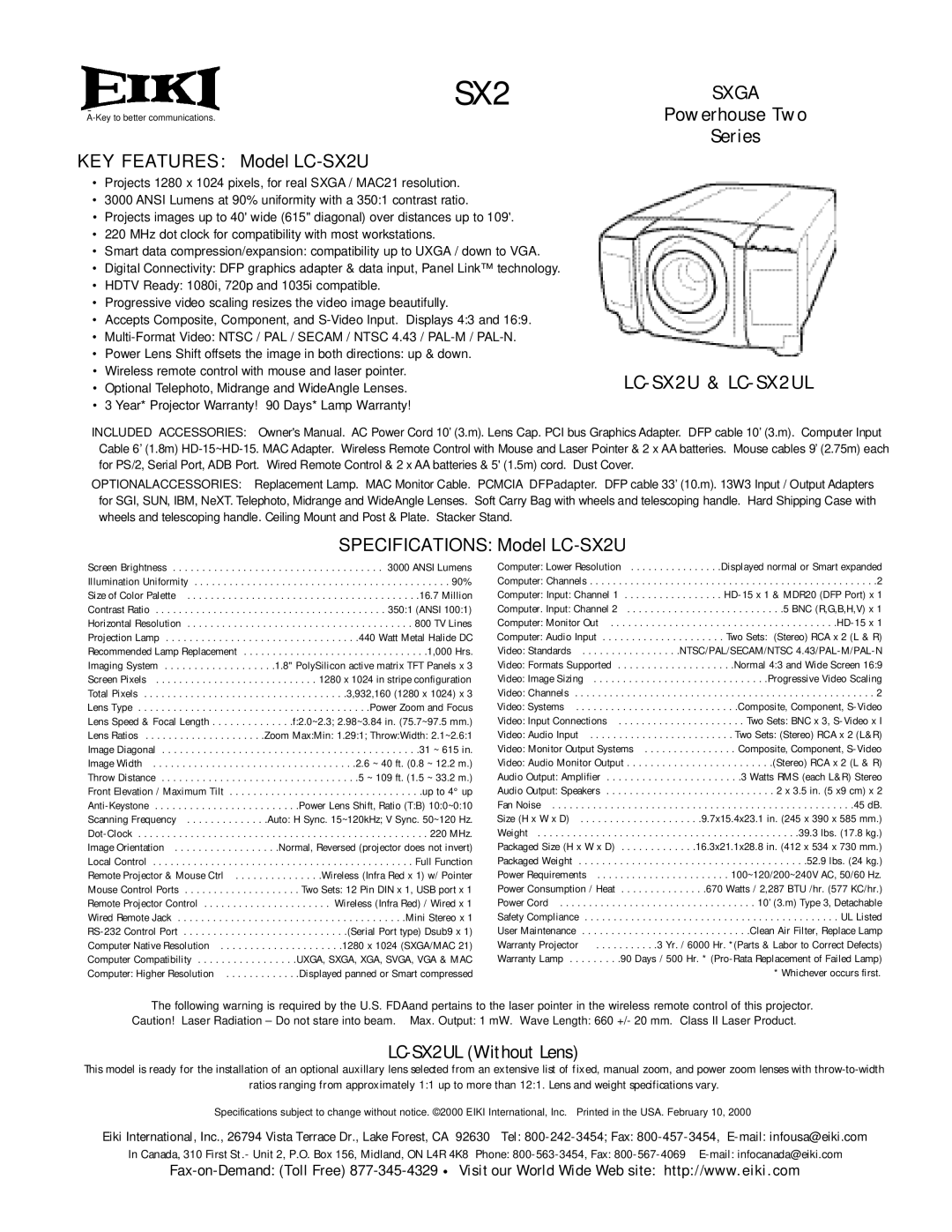

SX2

A-Key to better communications.

KEY FEATURES: Model LC-SX2U

Projects 1280 x 1024 pixels, for real SXGA / MAC21 resolution.

3000 ANSI Lumens at 90% uniformity with a 350:1 contrast ratio.

Projects images up to 40' wide (615" diagonal) over distances up to 109'.

220 MHz dot clock for compatibility with most workstations.

Smart data compression/expansion: compatibility up to UXGA / down to VGA.

Digital Connectivity: DFP graphics adapter & data input, Panel Link™ technology.

HDTV Ready: 1080i, 720p and 1035i compatible.

Progressive video scaling resizes the video image beautifully.

Accepts Composite, Component, and S-Video Input. Displays 4:3 and 16:9.

Multi-Format Video: NTSC / PAL / SECAM / NTSC 4.43 / PAL-M / PAL-N.

Power Lens Shift offsets the image in both directions: up & down.

Wireless remote control with mouse and laser pointer.

Optional Telephoto, Midrange and WideAngle Lenses.

3 Year* Projector Warranty! 90 Days* Lamp Warranty!

SXGA

Powerhouse Two

Series

LC-SX2U & LC-SX2UL

INCLUDED ACCESSORIES: Owner's Manual. AC Power Cord 10’ (3.m). Lens Cap. PCI bus Graphics Adapter. DFP cable 10’ (3.m). Computer Input Cable 6’ (1.8m) HD-15~HD-15. MAC Adapter. Wireless Remote Control with Mouse and Laser Pointer & 2 x AA batteries. Mouse cables 9’ (2.75m) each for PS/2, Serial Port, ADB Port. Wired Remote Control & 2 x AA batteries & 5' (1.5m) cord. Dust Cover.

OPTIONALACCESSORIES: Replacement Lamp. MAC Monitor Cable. PCMCIA DFPadapter. DFP cable 33’ (10.m). 13W3 Input / Output Adapters for SGI, SUN, IBM, NeXT. Telephoto, Midrange and WideAngle Lenses. Soft Carry Bag with wheels and telescoping handle. Hard Shipping Case with wheels and telescoping handle. Ceiling Mount and Post & Plate. Stacker Stand.

SPECIFICATIONS: Model LC-SX2U

Screen Brightness

. . . . . . . . . . . . . . . . . . . . 3000 ANSI Lumens

Illumination Uniformity

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90%

Size of Color Palette

. . . . . . . . . . . . . . . . . . . . . . . . . .16.7 Million

Contrast Ratio

. . . . . . . . . . . . . . . . . . . . . 350:1 (ANSI 100:1)

Horizontal Resolution

. . . . . . . . . . . . . . . . . . . . . . . . . 800 TV Lines

Projection Lamp

. . . . . . . . . . . . . . . .440 Watt Metal Halide DC

Recommended Lamp Replacement . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .1,000 Hrs.

Imaging System

. .1.8" PolySilicon active matrix TFT Panels x 3

Screen Pixels

. . . . . . . . . 1280 x 1024 in stripe configuration

Total Pixels

. . . . . . . . . . . . . .3,932,160 (1280 x 1024) x 3

Lens Type

. . . . . . . . . . . . . . . . . .Power Zoom and Focus

Lens Speed & Focal Length

. . . . .f:2.0~2.3; 2.98~3.84 in. (75.7~97.5 mm.)

Lens Ratios

Zoom Max:Min: 1.29:1; Throw:Width: 2.1~2.6:1

Image Diagonal

. . . . . . . . . . . . . . . . . . . . . . . . . .31 ~ 615 in.

Image Width

. . . . . . . . . . . . . . . .2.6 ~ 40 ft. (0.8 ~ 12.2 m.)

Throw Distance

. . . . . . . . . . . . . . . .5 ~ 109 ft. (1.5 ~ 33.2 m.)

Front Elevation / Maximum Tilt

. . . . . . . . . . . . . . . . . . . . . . . . . . .up to 4° up

Anti-Keystone

. . . . . .Power Lens Shift, Ratio (T:B) 10:0~0:10

Scanning Frequency

.Auto: H Sync. 15~120kHz; V Sync. 50~120 Hz.

Dot-Clock

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 MHz.

Image Orientation

. .Normal, Reversed (projector does not invert)

Local Control

. . . . . . . . . . . . . . . . . . . . . . . . . Full Function

Remote Projector & Mouse Ctrl

. . . . . . . . . .Wireless (Infra Red x 1) w/ Pointer

Mouse Control Ports

. . . . . . Two Sets: 12 Pin DIN x 1, USB port x 1

Remote Projector Control

. . . . . . . . . . . Wireless (Infra Red) / Wired x 1

Wired Remote Jack

. . . . . . . . . . . . . . . . . . . . . . . .Mini Stereo x 1

RS-232 Control Port

. . . . . . . . . . . . . .(Serial Port type) Dsub9 x 1)

Computer Native Resolution

. . . . . . . . . . . . .1280 x 1024 (SXGA/MAC 21)

Computer Compatibility

. . . . .UXGA, SXGA, XGA, SVGA, VGA & MAC

Computer: Higher Resolution

. . . . . .Displayed panned or Smart compressed

Computer: Lower Resolution . . . .

. . . . . . . . . . . .Displayed normal or Smart expanded

Computer: Channels

. . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Computer: Input: Channel 1

. . . . .

. . . . . . . . . . . . HD-15 x 1 & MDR20 (DFP Port) x 1

Computer. Input: Channel 2

. . . . .

. . . . . . . . . . . . . . . . . . . . . .5 BNC (R,G,B,H,V) x 1

Computer: Monitor Out

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .HD-15 x 1

Computer: Audio Input . . .

. . . . . .

. . . . . . . . . . . . Two Sets: (Stereo) RCA x 2 (L & R)

Video: Standards

. . . .NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N

Video: Formats Supported

. . . . . . . . . . . . .Normal 4:3 and Wide Screen 16:9

Video: Image Sizing

. . . . . . . . . . . . . . . . . . .Progressive Video Scaling

Video: Channels

. . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Video: Systems

. . . . . . . . . . . . . .Composite, Component, S-Video

Video: Input Connections

. . . . . . . . . . . . . . . Two Sets: BNC x 3, S-Video x I

Video: Audio Input

. . . . . .

. . . . . . . . . . . . . . Two Sets: (Stereo) RCA x 2 (L&R)

Video: Monitor Output Systems . .

. . . . . . . . . . . . . . Composite, Component, S-Video

Video: Audio Monitor Output

. . . . . . . . . . . . . . . . . . . .(Stereo) RCA x 2 (L & R)

Audio Output: Amplifier

. . . . . . . . . . . . . . .3 Watts RMS (each L&R) Stereo

Audio Output: Speakers

. . . . . . . . . . . . . . . . . . . . 2 x 3.5 in. (5 x9 cm) x 2

Fan Noise

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 dB.

Size (H x W x D)

. . . . . .

. . . . . . . .9.7x15.4x23.1 in. (245 x 390 x 585 mm.)

Weight

. . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .39.3 lbs. (17.8 kg.)

Packaged Size (H x W x D)

. . . . . .

. . . . . . .16.3x21.1x28.8 in. (412 x 534 x 730 mm.)

Packaged Weight

. . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .52.9 lbs. (24 kg.)

Power Requirements . . . .

. . . . . .

. . . . . . . . . . . . . 100~120/200~240V AC, 50/60 Hz.

Power Consumption / Heat

. . . . . .

. . . . . . . . .670 Watts / 2,287 BTU /hr. (577 KC/hr.)

Power Cord

. . . . . . . . . . . . . . . . . 10’ (3.m) Type 3, Detachable

Safety Compliance

. . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL Listed

User Maintenance

. . . . . . . . . . . . . . . .Clean Air Filter, Replace Lamp

Warranty Projector . . . .

. . . . . .

.3 Yr. / 6000 Hr. *(Parts & Labor to Correct Defects)

Warranty Lamp

90 Days / 500 Hr. * (Pro-Rata Replacement of Failed Lamp)





* Whichever occurs first.

The following warning is required by the U.S. FDAand pertains to the laser pointer in the wireless remote control of this projector.

Caution! Laser Radiation – Do not stare into beam. Max. Output: 1 mW. Wave Length: 660 +/- 20 mm. Class II Laser Product.

LC-SX2UL (Without Lens)

This model is ready for the installation of an optional auxillary lens selected from an extensive list of fixed, manual zoom, and power zoom lenses with throw-to-width

ratios ranging from approximately 1:1 up to more than 12:1. Lens and weight specifications vary.

Specifications subject to change without notice. ©2000 EIKI International, Inc. Printed in the USA. February 10, 2000

Eiki International, Inc., 26794 Vista Terrace Dr., Lake Forest, CA 92630 Tel: 800-242-3454; Fax: 800-457-3454, E-mail: infousa@eiki.com

In Canada, 310 First St .- Unit 2, P.O. Box 156, Midland, ON L4R 4K8 Phone: 800-563-3454, Fax: 800-567-4069 E-mail: infocanada@eiki.com

Fax-on-Demand: (Toll Free) 877-345-4329 Visit our World Wide Web site: http://www.eiki.com

Page 1
