A LC-XB27N

KEY FEATURES: Model LC-XB27N

Weighs less than 6 lbs! Footprint 1/3 smaller than a sheet of paper! 2500 ANSI Lumens bright, 80% uniformity, up to a 500:1 contrast ratio. 3 panel LCD imaging delivers a rich, color saturated picture.

True XGA resolution. UXGA~VGA, WXGA and MAC compatible. Quiet operation: fan noise less than 30 dBA in Eco mode. Smart data compression / expansion, and video scaling. Convenient wide range (1.5+:1) manual zoom and focus lens. Preset image offset. Vertical digital keystone correction.

Accepts Composite, S, and Component Video in all major standards. Displays both Regular 4:3 and Widescreen 16:9 ratio video formats. Supports most HDTV resolutions. Converts Interlace to Progressive.

Variable Power Management option. Optional local or remote keylock. DVI is HDCP compatible. Slideshow Page Up/Down on remote control. Cutom warm up screen image option. Factory defaults reset.

Wireless remote with mouse and Laser pointer. 7X digital zoom.

3 Year* Projector Warranty!

XGA "Brilliant" Series

LC-XB27N

New Features:

1.Built-in RJ45 (100/10) Ethernet wired network projector control and content delivery via computer (PC-only software).

2.Optional 802.11 b/g adapter for wireless network projector control and content delivery via computer (PC-only software).

3.Optional USB computerless slideshow memory adapter (PC-only software).

Included Accessories: Projector and Network Owner’s Manual. AC Power Cord. Lens Cover. VGA type Computer Input Cable (HD15 ~ DVI-I). Wireless Remote Control With Mouse and Laser Pointer & Batteries (AAA x 2). Mouse cable for computer USB Port. CD-ROM with PC software for all network functions. Soft Carry Bag.

Optional Accessories: Replacement Lamp. Component Video Input Cable (HD15~3-RCA). DB9~Mini DIN-8 cable for RS-232 control.

Luggage-Style ("wheelie") Carrying Case with Wheels, Telescoping Handle, and Detachable Computer Compartment. ATA-Style Shipping Case with Wheels and Telescoping Handle. Ceiling Mount. Ceiling Post and Plate. 33’ (10m) Extension Cable for Serial Cable. 256 MB USB Memory Computerless Slideshow Adapter. 802.11 b/g Wireless Projector Control & Content Delivery Adapter. EZ-250 Local Control.

SPECIFICATIONS: Model LC-XB27N

Screen Brightness





2,500 ANSI Lumens / 2000 in Eco mode

Illumination Uniformity





80%

Size of Color Palette







16.7 Million

Contrast Ratio

up to 500:1 (Full ON/OFF) (Auto & Dynamic, WideAngle)

Projection Lamp







200 Watt UHP

Estimated Lamp Life





up to 2000 Hours, (in Eco mode)

Imaging System



0.7" PolySilicon active matrix TFT Panels x 3

Screen Pixels





1024 x 768 in stripe configuration

Total Pixels





2,359,296 ((1024 x 768 ) x 3)

Lens Type







Manual Zoom and Focus

Lens Specs

Speed: f:1.6~2.5; FL: 0.697~1.114 in. (17.7~28.3 mm)

Lens Ratios

Zoom Max:Min: 1.56:1; Throw:Width: 1.24~1.93:1

Image Diagonal







40~300 in. (102~762 cm)

Image Width







2.67~20 ft. (0.84~6.1 m.)

Throw Distance







3.3~38.7 ft. (1.0~11.8 m.)

Front Elevation / Maximum Tilt





up to 10° up / +/- 10°

Anti Keystone



Fixed Image Offset, Ratio (Top:Bottom) 6:1

Vertical Keystone Correction



Digital: up to 20° up or down

Scanning Frequency



Auto: H Sync. 15-100kHz; V Sync. 50-100Hz

Dot Clock







140 MHz

Image Orientation





Normal, Reversed, Inverted

Local Control / Power Management

Full Function / Auto Shutdown

Remote Proj & Mouse Ctrl

Wireless (Infra Red) with Laser Pointer x 1

Mouse Port







USB type B x 1

Service Port (for RS-232 control)





Mini DIN 8 Pin x 1

Wired Network Port







RJ45 x 1 (100/10)

Wireless Network & Computerless Slideshow Port

USB type A x 1

Computer Native Resolution





1024 x 768 (XGA)

Computer: Compatibility



UXGA, SXGA+, SXGA, WXGA,









XGA, SVGA, VGA, MAC

Computer: Formats





1600x1200, through 640x480

Computer: Higher Resolutions



Displayed panned or Smart Compressed

Computer: Lower Resolution



Displayed normal or Smart Expanded

Video: Compatibility

NTSC / PAL / SECAM / NTSC 4.43 / PAL-M&N

Video: HD Compatibility



480i/p, 575i/p, 720p, 1035i, 1080i

Video: Formats Supported



Normal 4:3 and Wide Screen 16:9

Video: Image Sizing





Video Scaling Technology

Image Signal Inputs









Computer In 1:



DVI-I x 1 (HD15 via supplied Input Cable)

Computer: In 2:/ Component In / Computer Monitor out :

HD15 x 1

Video In :







RCA x 1 (Composite) S-Video x 1 (Y/C)

Audio Signal Inputs









Computer 1 & 2 / Component

Stereo: Ministereo x 1

Composite/S-Video





RCA x 2 (L & R)

Audio: Amplifier





Mono: 1 Watt RMS

Audio: Built In Speakers



1.1 in. (2.8 cm) x 1

Audio: Output





Stereo: Ministereo x 1 (Variable)

Fan Noise







35.7 dBA / 29.8 dBA in Eco mode

Cabinet Size** (HxWxD)

2.28 x 9.66 x 6.82in. (69.5 x 294.5 x 208mm.)









** excluding legs and lens

Weight







5.7 lbs. (2.6 kg)

Packaged Size (H x W x D) 13.2 x 16.2 x 14.2in. (334 x 410 x 360mm.)

Packaged Weight







14.1 lb (6.4kg)

Power Requirements





100-240V AC, 50/60Hz

Power Consumption

280 W / 210 W in Eco (Standby 14 W / 9 in Eco)

Heat

955 BTU/hr (241 Kcal/hr) / 717 BTU/hr (181 Kcal/hr) in Eco

Power Cord







10’ (3M) Type 3, Detachable

Safety Compliance







cUL , UL, IEC

Electronics Compliance





FCC Class B, CE

Security Facilities





Kensington® Security Slot

Operating Temperature





41~95°F (5~35°C)

User Maintenance





Clean Air Filter, Replace Lamp

Warranty: (to the original end-use customer)



Projector:

3 Yr. / 6000 Hour Use. *(Parts & Labor to Correct Defects)

Lamp:





90 Days (Failed Lamp Replaced Pro-Rata)









* Whichever occurs first

Caution! Laser Radiation – Do not stare into beam. Max. Output: 1 mW. Wave Length: 640 ~ 660 nm. Class II Laser Product. Lamp contains Mercury. Do not put in trash. Dispose of as Hazardous Waste, according to Local, State or Federal Laws.

Specifications subject to change without notice. ©2006 Eiki International, Inc. Issued February 10, 2006.

Eiki International, Inc., 30251 Esperanza, Rancho Santa Margarita, CA 92688-2132. Tel: 800-242-3454; Fax: 800-457-3454, E-mail: usa@eiki.com

In Canada: 310 First St., Unit 2, P.O. Box 156, Midland, ON L4R 4K8. Tel: 800-563-3454, Fax: 800-567-4069, E-mail: infocanada@eiki.com Visit our World Wide Web site: http://www.eiki.com

Page 1 Page 1
Page 1

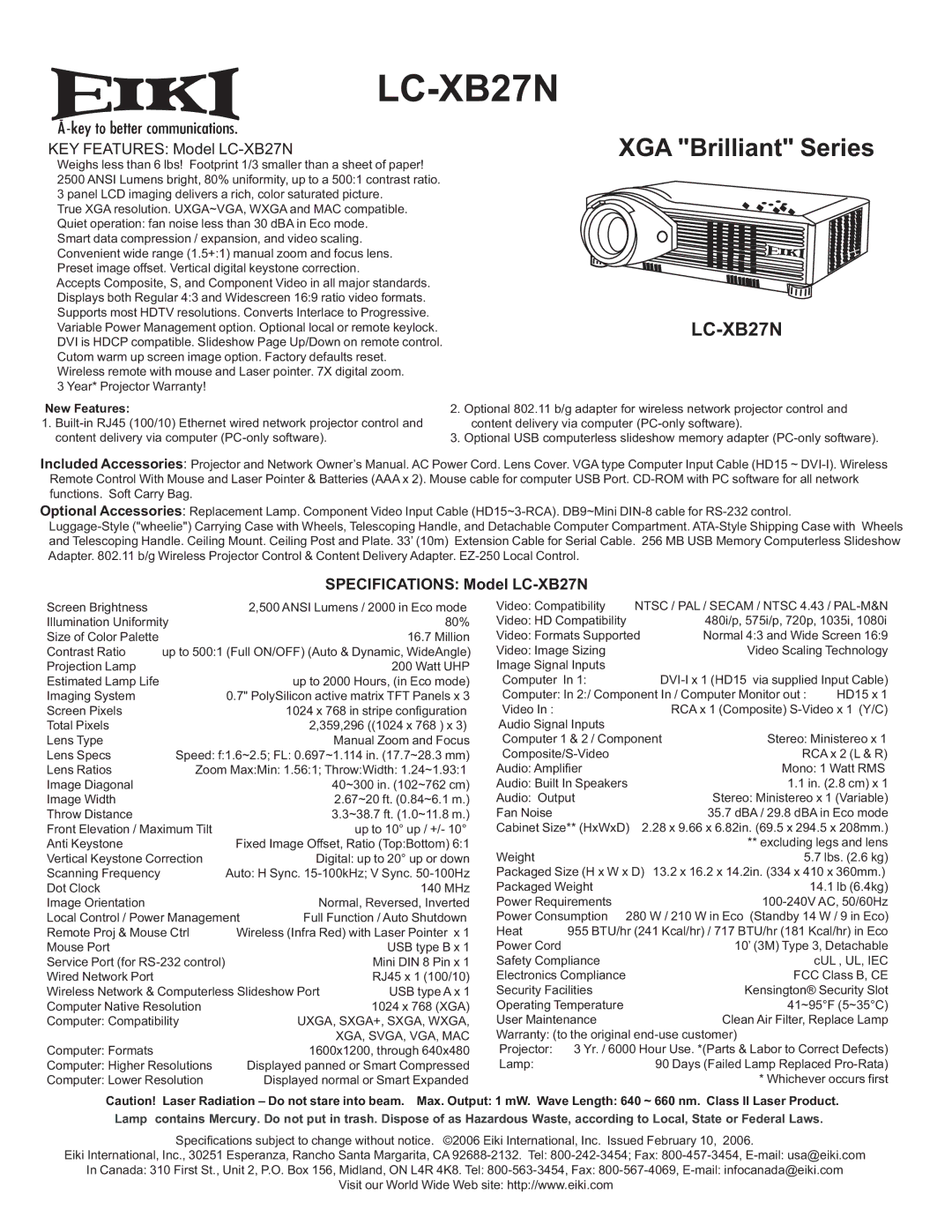

Image 1
