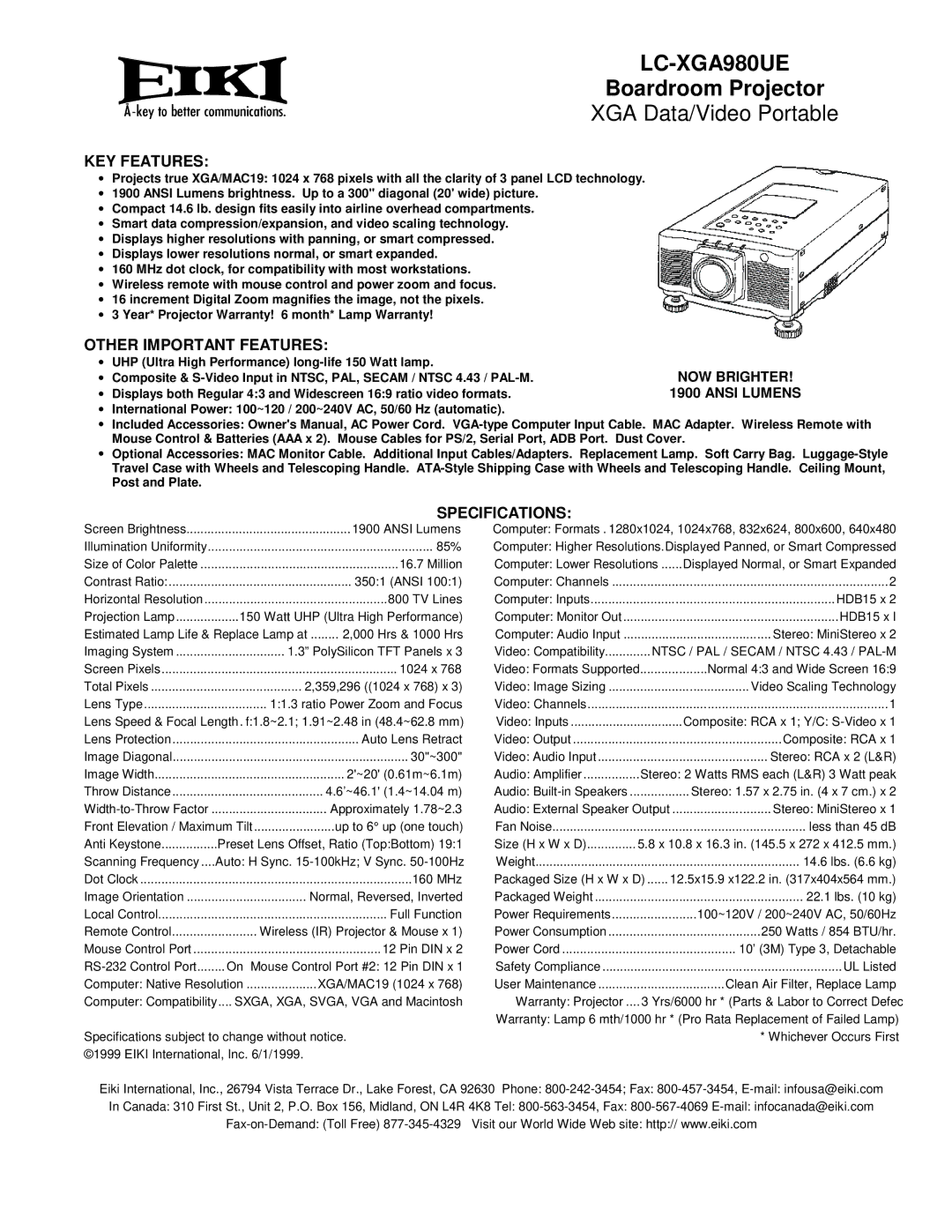

NOW BRIGHTER!
1900 ANSI LUMENS

LC-XGA980UE

  Boardroom Projector

XGA Data/Video Portable

KEY FEATURES:

Projects true XGA/MAC19: 1024 x 768 pixels with all the clarity of 3 panel LCD technology.

1900 ANSI Lumens brightness. Up to a 300" diagonal (20' wide) picture.

Compact 14.6 lb. design fits easily into airline overhead compartments.

Smart data compression/expansion, and video scaling technology.

Displays higher resolutions with panning, or smart compressed.

Displays lower resolutions normal, or smart expanded.

160 MHz dot clock, for compatibility with most workstations.

Wireless remote with mouse control and power zoom and focus.

16 increment Digital Zoom magnifies the image, not the pixels.

3 Year* Projector Warranty! 6 month* Lamp Warranty!

OTHER IMPORTANT FEATURES:

UHP (Ultra High Performance) long-life 150 Watt lamp.

Composite & S-Video Input in NTSC, PAL, SECAM / NTSC 4.43 / PAL-M.

Displays both Regular 4:3 and Widescreen 16:9 ratio video formats.

International Power: 100~120 / 200~240V AC, 50/60 Hz (automatic).

Included Accessories: Owner's Manual, AC Power Cord. VGA-type Computer Input Cable. MAC Adapter. Wireless Remote with Mouse Control & Batteries (AAA x 2). Mouse Cables for PS/2, Serial Port, ADB Port. Dust Cover.

Optional Accessories: MAC Monitor Cable. Additional Input Cables/Adapters. Replacement Lamp. Soft Carry Bag. Luggage-Style Travel Case with Wheels and Telescoping Handle. ATA-Style Shipping Case with Wheels and Telescoping Handle. Ceiling Mount, Post and Plate.

SPECIFICATIONS:

Screen Brightness

1900 ANSI Lumens

Illumination Uniformity

85%

Size of Color Palette

16.7 Million

Contrast Ratio:

350:1 (ANSI 100:1)

Horizontal Resolution

800 TV Lines

Projection Lamp

150 Watt UHP (Ultra High Performance)

Estimated Lamp Life & Replace Lamp at

2,000 Hrs & 1000 Hrs

Imaging System

1.3” PolySilicon TFT Panels x 3

Screen Pixels

1024 x 768

Total Pixels

2,359,296 ((1024 x 768) x 3)

Lens Type

1:1.3 ratio Power Zoom and Focus

Lens Speed & Focal Length. f:1.8~2.1; 1.91~2.48 in (48.4~62.8 mm)

Lens Protection

Auto Lens Retract

Image Diagonal

30"~300"

Image Width

2'~20' (0.61m~6.1m)

Throw Distance

4.6’~46.1' (1.4~14.04 m)

Width-to-Throw Factor

Approximately 1.78~2.3

Front Elevation / Maximum Tilt

.......................up to 6° up (one touch)

Anti Keystone

Preset Lens Offset, Ratio (Top:Bottom) 19:1

Scanning Frequency ....Auto: H Sync. 15-100kHz; V Sync. 50-100Hz

Dot Clock

160 MHz

Image Orientation

Normal, Reversed, Inverted

Local Control

Full Function

Remote Control

Wireless (IR) Projector & Mouse x 1)

Mouse Control Port

12 Pin DIN x 2

RS-232 Control Port

On Mouse Control Port #2: 12 Pin DIN x 1

Computer: Native Resolution

XGA/MAC19 (1024 x 768)

Computer: Compatibility

.... SXGA, XGA, SVGA, VGA and Macintosh

Specifications subject to change without notice. ©1999 EIKI International, Inc. 6/1/1999.

Computer: Formats . 1280x1024, 1024x768, 832x624, 800x600, 640x480

Computer: Higher Resolutions.Displayed Panned, or Smart Compressed

Computer: Lower Resolutions

Displayed Normal, or Smart Expanded

Computer: Channels

2

Computer: Inputs

HDB15 x 2

Computer: Monitor Out

HDB15 x I

Computer: Audio Input

Stereo: MiniStereo x 2

Video: Compatibility

NTSC / PAL / SECAM / NTSC 4.43 / PAL-M

Video: Formats Supported

Normal 4:3 and Wide Screen 16:9

Video: Image Sizing

Video Scaling Technology

Video: Channels

1

Video: Inputs

Composite: RCA x 1; Y/C: S-Video x 1

Video: Output

Composite: RCA x 1

Video: Audio Input

Stereo: RCA x 2 (L&R)

Audio: Amplifier

Stereo: 2 Watts RMS each (L&R) 3 Watt peak

Audio: Built-in Speakers

Stereo: 1.57 x 2.75 in. (4 x 7 cm.) x 2

Audio: External Speaker Output

............................ Stereo: MiniStereo x 1

Fan Noise

less than 45 dB

Size (H x W x D)

5.8 x 10.8 x 16.3 in. (145.5 x 272 x 412.5 mm.)

Weight

14.6 lbs. (6.6 kg)

Packaged Size (H x W x D)

12.5x15.9 x122.2 in. (317x404x564 mm.)

Packaged Weight

22.1 lbs. (10 kg)

Power Requirements

100~120V / 200~240V AC, 50/60Hz

Power Consumption

250 Watts / 854 BTU/hr.

Power Cord

10’ (3M) Type 3, Detachable

Safety Compliance

UL Listed

User Maintenance

Clean Air Filter, Replace Lamp

Warranty: Projector ....

3 Yrs/6000 hr * (Parts & Labor to Correct Defec

Warranty: Lamp 6 mth/1000 hr * (Pro Rata Replacement of Failed Lamp) * Whichever Occurs First

Eiki International, Inc., 26794 Vista Terrace Dr., Lake Forest, CA 92630 Phone: 800-242-3454; Fax: 800-457-3454, E-mail: infousa@eiki.com In Canada: 310 First St., Unit 2, P.O. Box 156, Midland, ON L4R 4K8 Tel: 800-563-3454, Fax: 800-567-4069 E-mail: infocanada@eiki.com Fax-on-Demand: (Toll Free) 877-345-4329 Visit our World Wide Web site: http:// www.eiki.com
