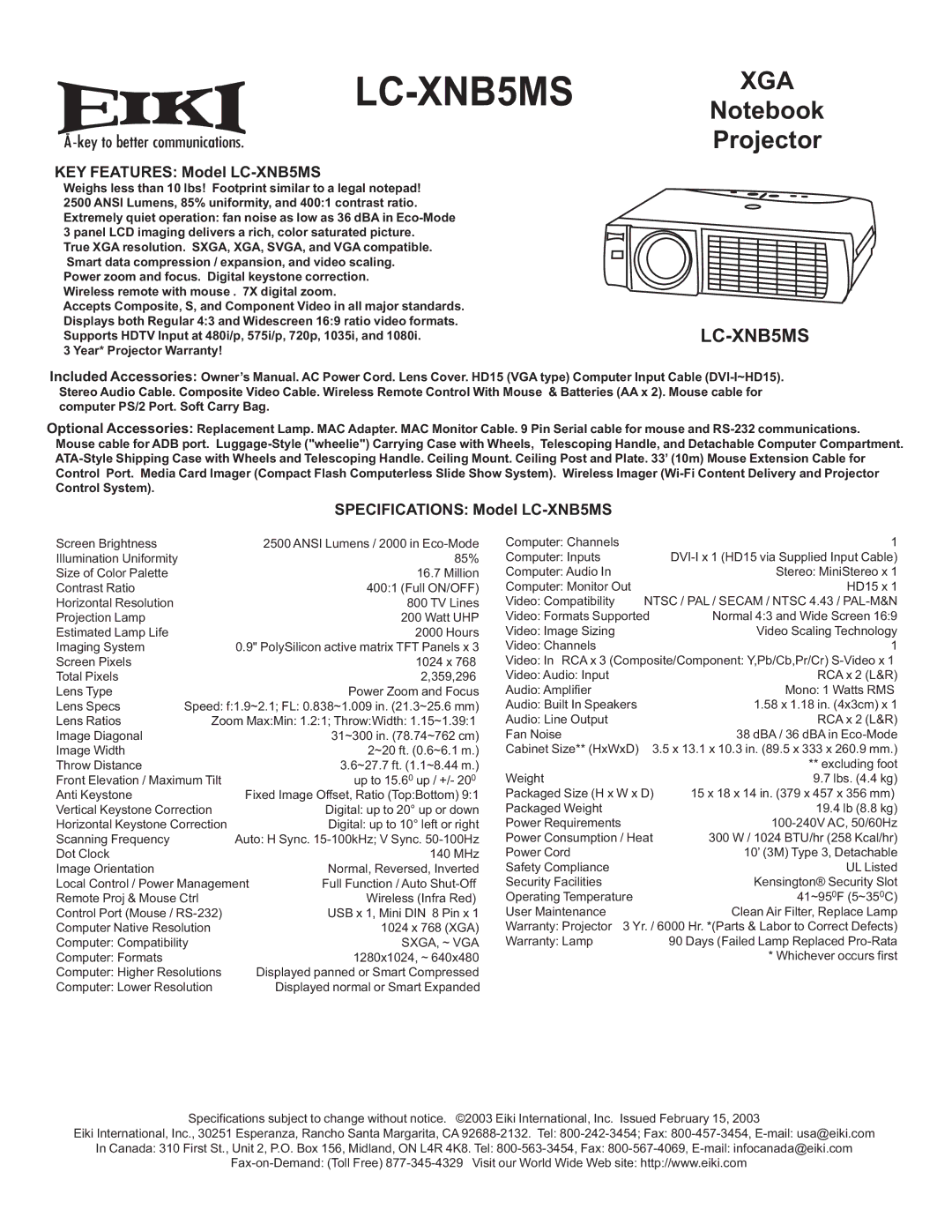

ALC-XNB5MS
KEY FEATURES: Model LC-XNB5MS
Weighs less than 10 lbs! Footprint similar to a legal notepad!
2500 ANSI Lumens, 85% uniformity, and 400:1 contrast ratio. Extremely quiet operation: fan noise as low as 36 dBA in
True XGA resolution. SXGA, XGA, SVGA, and VGA compatible. Smart data compression / expansion, and video scaling. Power zoom and focus. Digital keystone correction.
Wireless remote with mouse . 7X digital zoom.
Accepts Composite, S, and Component Video in all major standards. Displays both Regular 4:3 and Widescreen 16:9 ratio video formats. Supports HDTV Input at 480i/p, 575i/p, 720p, 1035i, and 1080i.
3 Year* Projector Warranty!
XGA
Notebook
Projector
LC-XNB5MS
Included Accessories: Owner’s Manual. AC Power Cord. Lens Cover. HD15 (VGA type) Computer Input Cable
Optional Accessories: Replacement Lamp. MAC Adapter. MAC Monitor Cable. 9 Pin Serial cable for mouse and
SPECIFICATIONS: Model LC-XNB5MS
Screen Brightness |
|
| 2500 ANSI Lumens / 2000 in |
Illumination Uniformity |
|
| 85% |
Size of Color Palette |
|
| 16.7 Million |
Contrast Ratio |
|
| 400:1 (Full ON/OFF) |
Horizontal Resolution |
|
| 800 TV Lines |
Projection Lamp |
|
| 200 Watt UHP |
Estimated Lamp Life |
|
| 2000 Hours |
Imaging System |
| 0.9" PolySilicon active matrix TFT Panels x 3 | |
Screen Pixels |
|
| 1024 x 768 |
Total Pixels |
|
| 2,359,296 |
Lens Type |
|
| Power Zoom and Focus |
Lens Specs | Speed: f:1.9~2.1; FL: 0.838~1.009 in. (21.3~25.6 mm) | ||
Lens Ratios | Zoom Max:Min: 1.2:1; Throw:Width: 1.15~1.39:1 | ||
Image Diagonal |
|
| 31~300 in. (78.74~762 cm) |
Image Width |
|
| 2~20 ft. (0.6~6.1 m.) |
Throw Distance |
|
| 3.6~27.7 ft. (1.1~8.44 m.) |
Front Elevation / Maximum Tilt |
| up to 15.60 up / +/- 200 | |
Anti Keystone |
| Fixed Image Offset, Ratio (Top:Bottom) 9:1 | |
Vertical Keystone Correction |
| Digital: up to 20° up or down | |
Horizontal Keystone Correction |
| Digital: up to 10° left or right | |
Scanning Frequency |
| Auto: H Sync. | |
Dot Clock |
|
| 140 MHz |
Image Orientation |
|
| Normal, Reversed, Inverted |
Local Control / Power Management | Full Function / Auto | ||
Remote Proj & Mouse Ctrl |
| Wireless (Infra Red) | |
Control Port (Mouse / |
| USB x 1, Mini DIN 8 Pin x 1 | |
Computer Native Resolution |
| 1024 x 768 (XGA) | |
Computer: Compatibility |
| SXGA, ~ VGA | |
Computer: Formats |
|
| 1280x1024, ~ 640x480 |
Computer: Higher Resolutions |
| Displayed panned or Smart Compressed | |
Computer: Lower Resolution |
| Displayed normal or Smart Expanded | |
Computer: Channels |
| 1 |
Computer: Inputs |
| |
Computer: Audio In |
| Stereo: MiniStereo x 1 |
Computer: Monitor Out |
| HD15 x 1 |
Video: Compatibility | NTSC / PAL / SECAM / NTSC 4.43 / | |
Video: Formats Supported | Normal 4:3 and Wide Screen 16:9 | |
Video: Image Sizing |
| Video Scaling Technology |
Video: Channels |
| 1 |
Video: In RCA x 3 (Composite/Component: Y,Pb/Cb,Pr/Cr) | ||
Video: Audio: Input |
| RCA x 2 (L&R) |
Audio: Amplifier |
| Mono: 1 Watts RMS |
Audio: Built In Speakers |
| 1.58 x 1.18 in. (4x3cm) x 1 |
Audio: Line Output |
| RCA x 2 (L&R) |
Fan Noise |
| 38 dBA / 36 dBA in |
Cabinet Size** (HxWxD) | 3.5 x 13.1 x 10.3 in. (89.5 x 333 x 260.9 mm.) | |
|
| ** excluding foot |
Weight |
| 9.7 lbs. (4.4 kg) |
Packaged Size (H x W x D) | 15 x 18 x 14 in. (379 x 457 x 356 mm) | |
Packaged Weight |
| 19.4 lb (8.8 kg) |
Power Requirements |
| |
Power Consumption / Heat | 300 W / 1024 BTU/hr (258 Kcal/hr) | |
Power Cord |
| 10’ (3M) Type 3, Detachable |
Safety Compliance |
| UL Listed |
Security Facilities |
| Kensington® Security Slot |
Operating Temperature |
| 41~950F (5~350C) |
User Maintenance |
| Clean Air Filter, Replace Lamp |
Warranty: Projector | 3 Yr. / 6000 Hr. *(Parts & Labor to Correct Defects) |
Warranty: Lamp | 90 Days (Failed Lamp Replaced |
| * Whichever occurs first |
Specifications subject to change without notice. ©2003 Eiki International, Inc. Issued February 15, 2003
