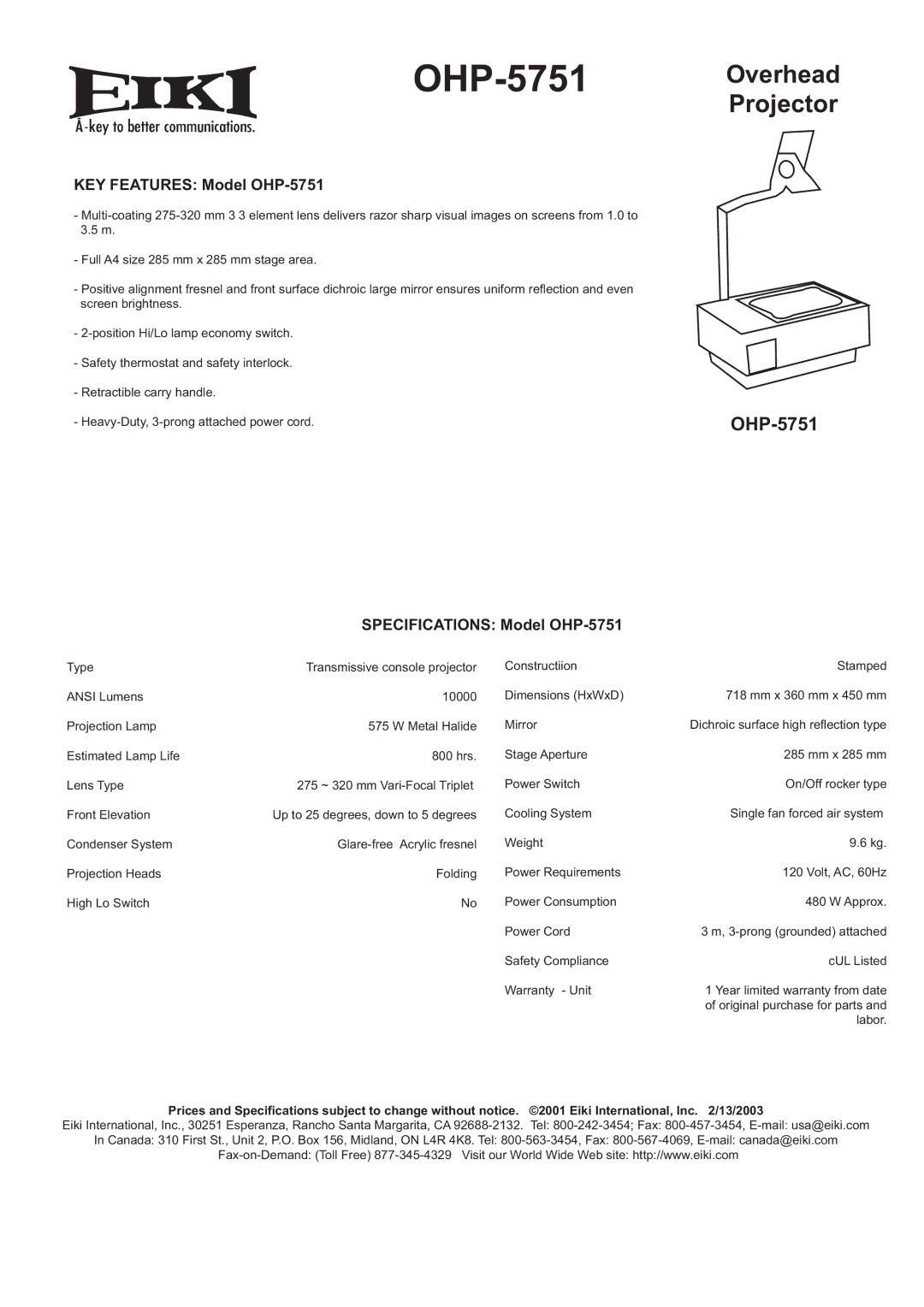

A

OHP-5751

Overhead Projector

KEY FEATURES: Model OHP-5751

-Multi-coating 275-320 mm 3 3 element lens delivers razor sharp visual images on screens from 1.0 to 3.5 m.

-Full A4 size 285 mm x 285 mm stage area.

-Positive alignment fresnel and front surface dichroic large mirror ensures uniform reflection and even screen brightness.

-2-position Hi/Lo lamp economy switch.

-Safety thermostat and safety interlock.

-Retractible carry handle.

- Heavy-Duty, 3-prong attached power cord.

OHP-5751



SPECIFICATIONS: Model OHP-5751

Type

Transmissive console projector

Constructiion

Stamped

ANSI Lumens

10000

Dimensions (HxWxD)

718 mm x 360 mm x 450 mm

Projection Lamp

575 W Metal Halide

Mirror

Dichroic surface high reflection type

Estimated Lamp Life

800 hrs.

Stage Aperture

285 mm x 285 mm

Lens Type

275 ~ 320 mm Vari-Focal Triplet

Power Switch

On/Off rocker type

Front Elevation

Up to 25 degrees, down to 5 degrees

Cooling System

Single fan forced air system

Condenser System

Glare-free Acrylic fresnel

Weight

9.6 kg.

Projection Heads

Folding

Power Requirements

120 Volt, AC, 60Hz

High Lo Switch

No

Power Consumption

480 W Approx.





Power Cord

3 m, 3-prong (grounded) attached





Safety Compliance

cUL Listed





Warranty - Unit

1 Year limited warranty from date







of original purchase for parts and







labor.

Prices and Specifications subject to change without notice. ©2001 Eiki International, Inc. 2/13/2003

Eiki International, Inc., 30251 Esperanza, Rancho Santa Margarita, CA 92688-2132. Tel: 800-242-3454; Fax: 800-457-3454, E-mail: usa@eiki.com

In Canada: 310 First St., Unit 2, P.O. Box 156, Midland, ON L4R 4K8. Tel: 800-563-3454, Fax: 800-567-4069, E-mail: canada@eiki.com Fax-on-Demand: (Toll Free) 877-345-4329 Visit our World Wide Web site: http://www.eiki.com

Page 1
Image 1
Eiki specifications Overhead Projector, KEY Features Model OHP-5751, Specifications Model OHP-5751

OHP-5751 specifications

The Eiki OHP-5751 is a versatile overhead projector regarded for its reliability and excellent performance in classroom and conference settings. Designed with educators and presenters in mind, this overhead projector combines advanced technology with user-friendly features that enhance visual presentations.

One of the standout features of the OHP-5751 is its high-quality optics, which ensures bright and clear images. The projector utilizes a powerful 300-watt halogen lamp that provides a luminance that can easily cut through ambient light, making it suitable for any environment. This feature is especially important in classrooms and conference rooms where lighting conditions can vary greatly. The projector’s lens delivers sharp and vivid colors, making text and images easily readable from a distance.

The Eiki OHP-5751 also boasts an adjustable head that allows users to tilt the projection surface easily. This flexibility enables presenters to adapt the angle of displayed materials according to the room’s layout and audience position, ensuring optimal viewability. Additionally, the projector features a wide projection area, accommodating larger visuals or multiple documents simultaneously. This family of projectors comes with a built-in transparency shield that protects the overhead sheets from dust and scratches, prolonging their usability.

With a lightweight yet durable design, the OHP-5751 is built for portability. Whether moving between classrooms or setting up in varied locations, users find the OHP-5751 easy to transport. The inclusion of integrated storage for accessories, such as pens and transparency sheets, adds to its convenience.

The OHP-5751 is equipped with various input options, enabling connections to different devices, including DVD players or computers. This feature enhances the versatility of presentations, allowing users to integrate multimedia elements seamlessly.

In summary, the Eiki OHP-5751 stands out for its exceptional optical performance, flexibility in projection angle, portability, and multi-device compatibility. Its combination of practical features and high-quality imaging technology makes it a reliable choice for educators and professionals alike, ensuring impactful visual communication in diverse settings.
