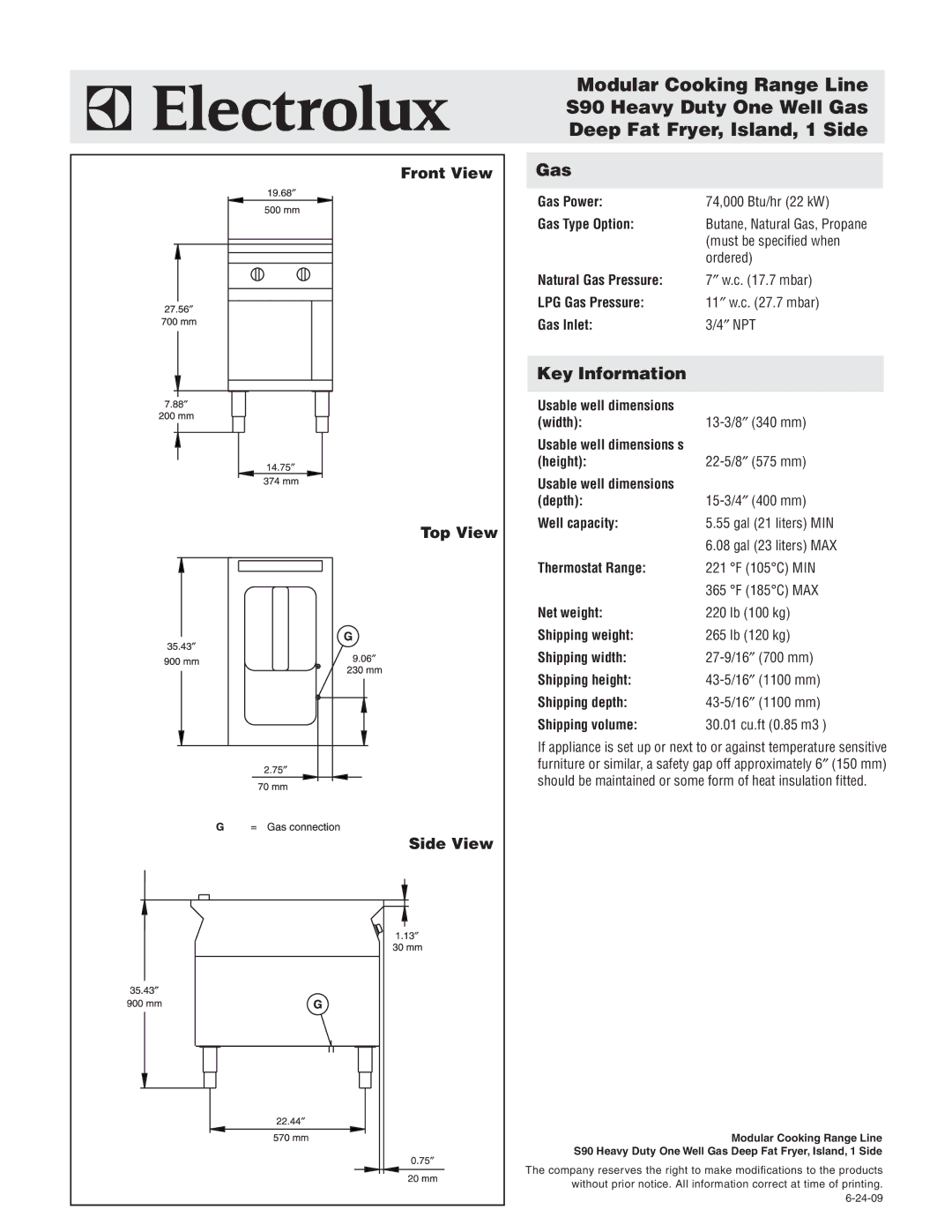

Electrolux 584102 warranty Front View Top View Side View, Key Information

Front View

Top View

Side View

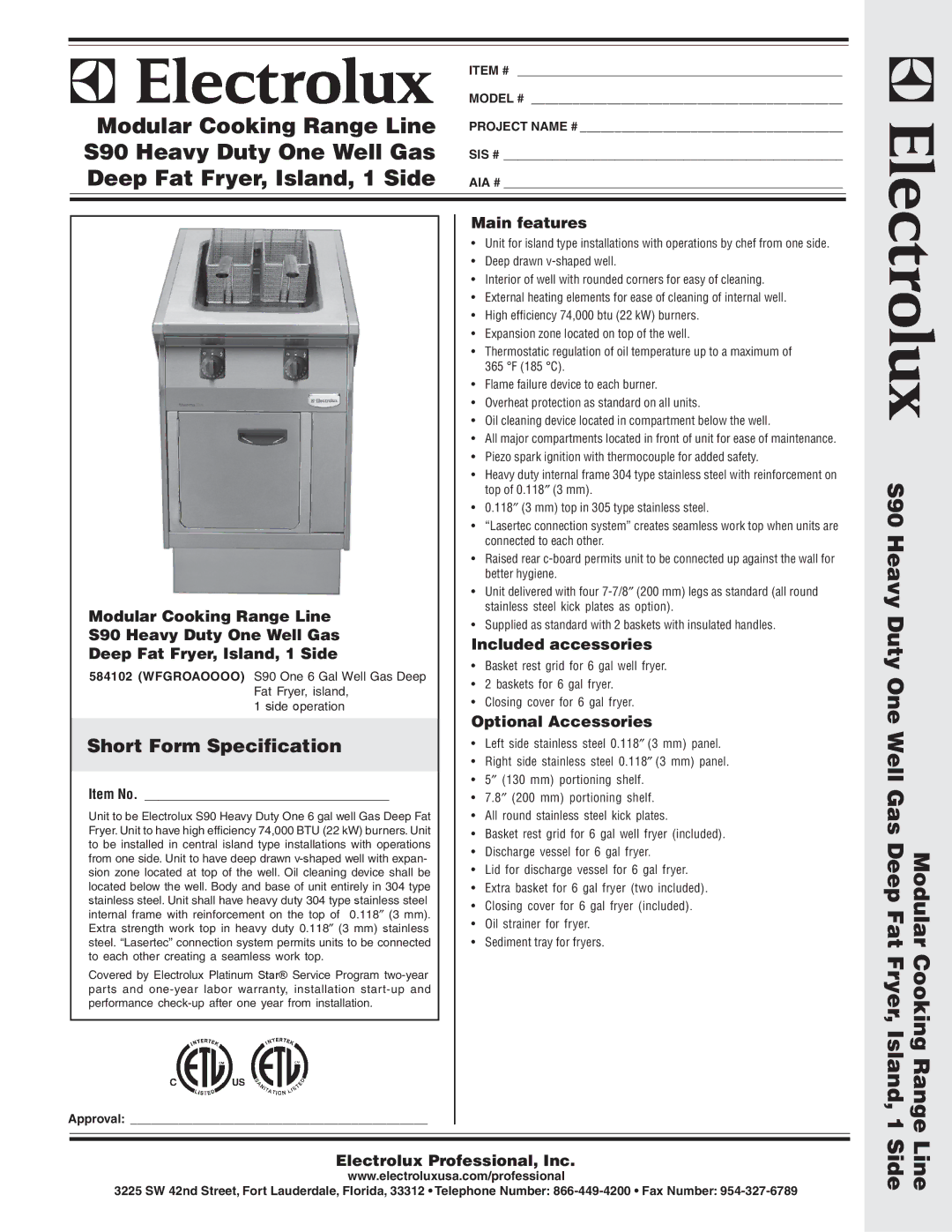

Modular Cooking Range Line S90 Heavy Duty One Well Gas Deep Fat Fryer, Island, 1 Side

Gas

Gas Power:	74,000 Btu/hr (22 kW)
Gas Type Option:	Butane, Natural Gas, Propane
	(must be specified when
	ordered)
Natural Gas Pressure:	7″ w.c. (17.7 mbar)
LPG Gas Pressure:	11″ w.c. (27.7 mbar)
Gas Inlet:	3/4″ NPT

Key Information

Usable well dimensions	13-3/8″ (340 mm)
(width):
Usable well dimensions s	22-5/8″ (575 mm)
(height):
Usable well dimensions	15-3/4″ (400 mm)
(depth):
Well capacity:	5.55 gal (21 liters) MIN
	6.08 gal (23 liters) MAX
Thermostat Range:	221 °F (105°C) MIN
	365 °F (185°C) MAX
Net weight:	220 lb (100 kg)
Shipping weight:	265 lb (120 kg)
Shipping width:	27-9/16″ (700 mm)
Shipping height:	43-5/16″ (1100 mm)
Shipping depth:	43-5/16″ (1100 mm)
Shipping volume:	30.01 cu.ft (0.85 m3 )

If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap off approximately 6″ (150 mm) should be maintained or some form of heat insulation fitted.

Modular Cooking Range Line S90 Heavy Duty One Well Gas Deep Fat Fryer, Island, 1 Side

The company reserves the right to make modifications to the products without prior notice. All information correct at time of printing.

6-24-09
