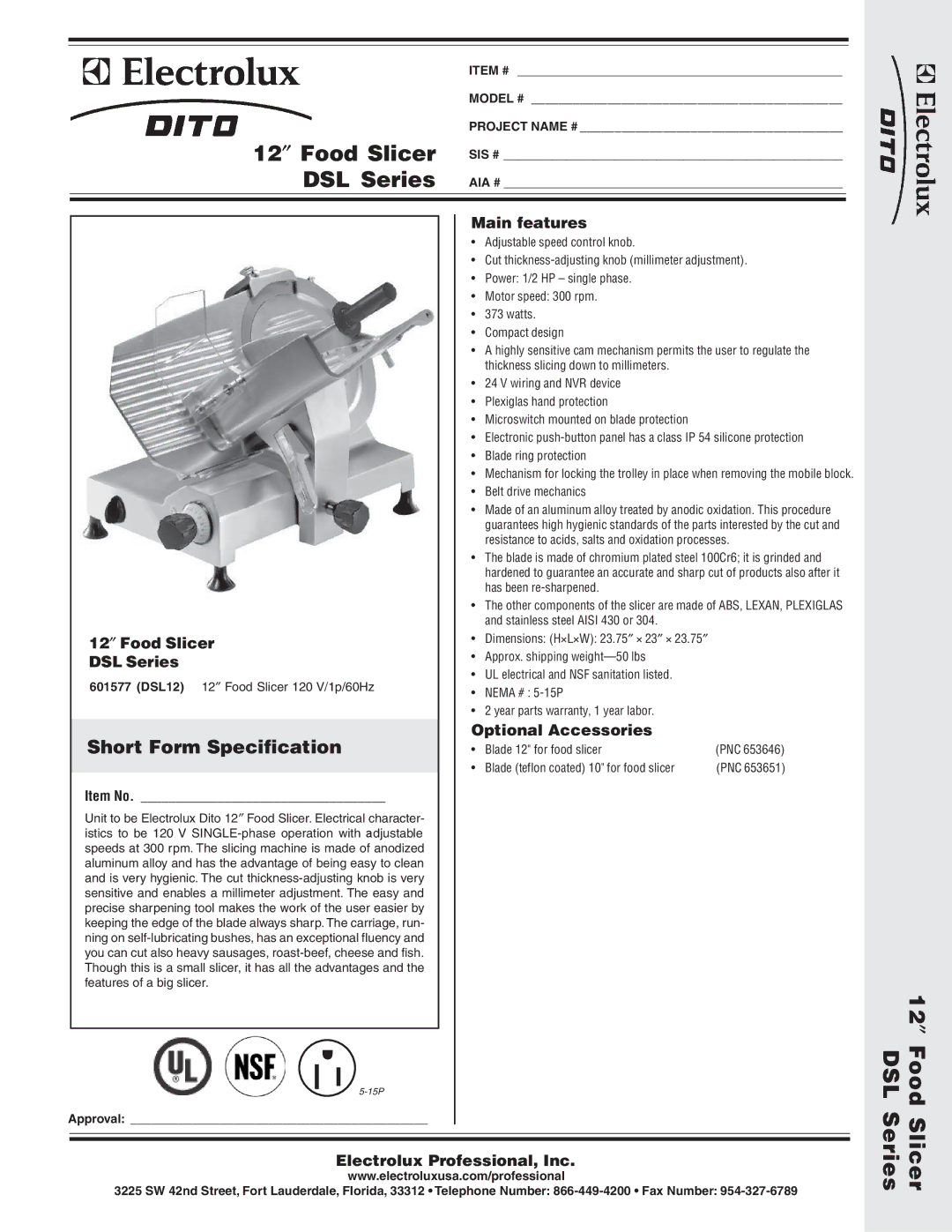

ITEM # _______________________________________________



MODEL # _____________________________________________



PROJECT NAME # ______________________________________

12Food Slicer

SIS # _________________________________________________

DSL Series

AIA # _________________________________________________











Main features













• Adjustable speed control knob.







• Cut thickness-adjusting knob (millimeter adjustment).



• Power: 1/2 HP – single phase.







• Motor speed: 300 rpm.







373 watts.







Compact design







• A highly sensitive cam mechanism permits the user to regulate the





thickness slicing down to millimeters.







• 24 V wiring and NVR device







Plexiglas hand protection







• Microswitch mounted on blade protection







• Electronic push-button panel has a class IP 54 silicone protection



Blade ring protection







• Mechanism for locking the trolley in place when removing the mobile block.



Belt drive mechanics







• Made of an aluminum alloy treated by anodic oxidation. This procedure





guarantees high hygienic standards of the parts interested by the cut and





resistance to acids, salts and oxidation processes.



• The blade is made of chromium plated steel 100Cr6; it is grinded and





hardened to guarantee an accurate and sharp cut of products also after it





has been re-sharpened.







• The other components of the slicer are made of ABS, LEXAN, PLEXIGLAS





and stainless steel AISI 430 or 304.





12Food Slicer

Dimensions: (H×L×W): 23.75″ × 23″ × 23.75″





DSL Series

Approx. shipping weight—50 lbs





601577 (DSL12) 12″ Food Slicer 120 V/1p/60Hz

• UL electrical and NSF sanitation listed.





NEMA # : 5-15P













• 2 year parts warranty, 1 year labor.





Short Form Specification

Optional Accessories





Blade 12" for food slicer

(PNC 653646)



Blade (teflon coated) 10" for food slicer

(PNC 653651)

Item No. ___________________________________









Unit to be Electrolux Dito 12″ Food Slicer. Electrical character-









istics to be 120 V SINGLE-phase operation with adjustable









speeds at 300 rpm. The slicing machine is made of anodized









aluminum alloy and has the advantage of being easy to clean









and is very hygienic. The cut thickness-adjusting knob is very









sensitive and enables a millimeter adjustment. The easy and









precise sharpening tool makes the work of the user easier by









keeping the edge of the blade always sharp. The carriage, run-









ning on self-lubricating bushes, has an exceptional fluency and









you can cut also heavy sausages, roast-beef, cheese and fish.









Though this is a small slicer, it has all the advantages and the









features of a big slicer.



















5-15P

Approval: ___________________________________________

Electrolux Professional, Inc.

www.electroluxusa.com/professional

3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789

12Food Slicer DSL Series

Page 1
