ITEM # _______________________________________________



MODEL # _____________________________________________



PROJECT NAME # ______________________________________

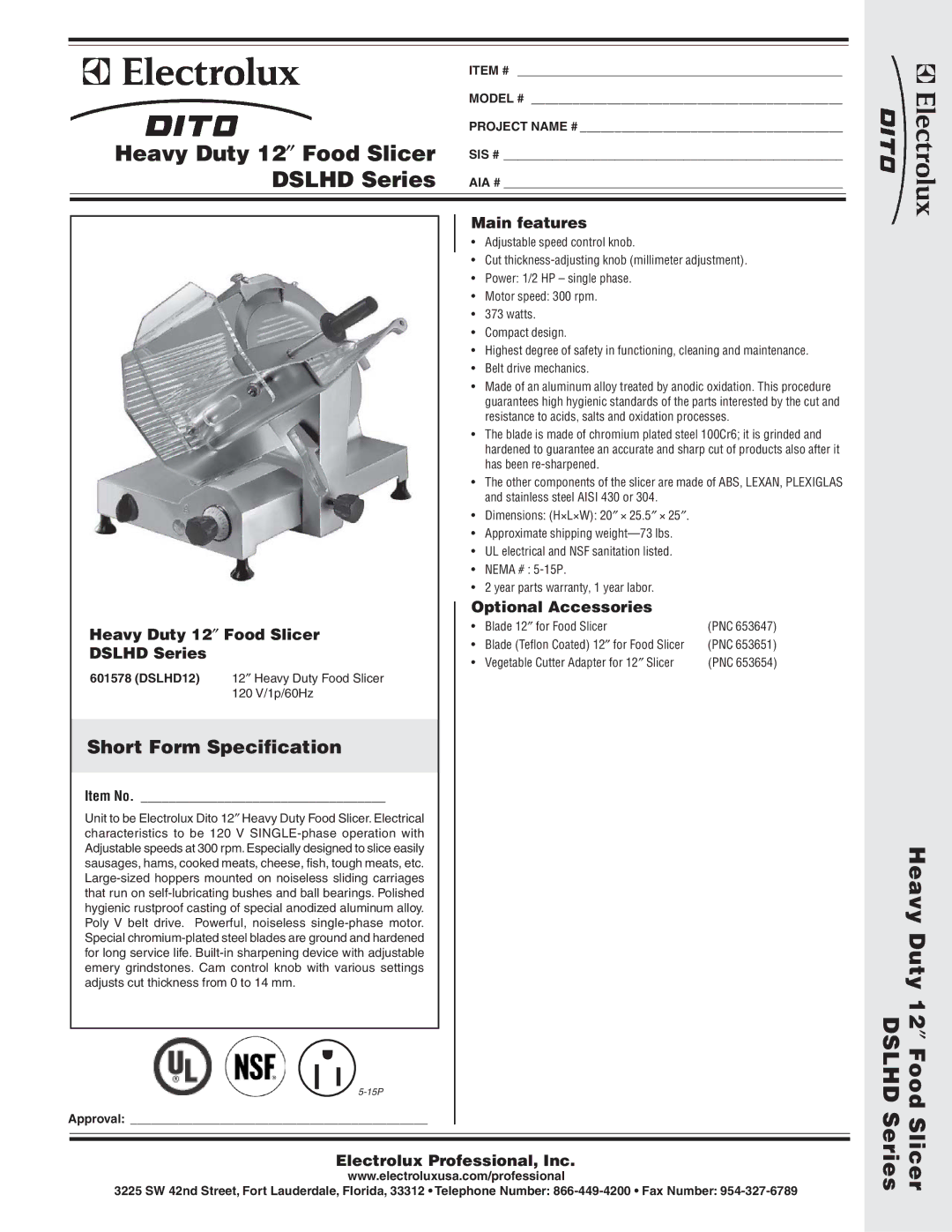

Heavy Duty 12Food Slicer

SIS # _________________________________________________

DSLHD Series

AIA # _________________________________________________





Heavy Duty 12Food Slicer

DSLHD Series

601578 (DSLHD12) 12″ Heavy Duty Food Slicer

120 V/1p/60Hz

Short Form Specification

Item No. ___________________________________

Unit to be Electrolux Dito 12″ Heavy Duty Food Slicer. Electrical characteristics to be 120 V SINGLE-phase operation with Adjustable speeds at 300 rpm. Especially designed to slice easily sausages, hams, cooked meats, cheese, fish, tough meats, etc. Large-sized hoppers mounted on noiseless sliding carriages that run on self-lubricating bushes and ball bearings. Polished hygienic rustproof casting of special anodized aluminum alloy. Poly V belt drive. Powerful, noiseless single-phase motor. Special chromium-plated steel blades are ground and hardened for long service life. Built-in sharpening device with adjustable emery grindstones. Cam control knob with various settings adjusts cut thickness from 0 to 14 mm.

Main features

Adjustable speed control knob.

Cut thickness-adjusting knob (millimeter adjustment).

Power: 1/2 HP – single phase.

Motor speed: 300 rpm.

373 watts.

Compact design.

Highest degree of safety in functioning, cleaning and maintenance.

Belt drive mechanics.

Made of an aluminum alloy treated by anodic oxidation. This procedure guarantees high hygienic standards of the parts interested by the cut and resistance to acids, salts and oxidation processes.

The blade is made of chromium plated steel 100Cr6; it is grinded and hardened to guarantee an accurate and sharp cut of products also after it has been re-sharpened.

The other components of the slicer are made of ABS, LEXAN, PLEXIGLAS and stainless steel AISI 430 or 304.

Dimensions: (H×L×W): 20″ × 25.5″ × 25″.

Approximate shipping weight—73 lbs.

UL electrical and NSF sanitation listed.

NEMA # : 5-15P.

2 year parts warranty, 1 year labor.

Optional Accessories

• Blade 12″ for Food Slicer

(PNC 653647)

Blade (Teflon Coated) 12″ for Food Slicer

(PNC 653651)

Vegetable Cutter Adapter for 12″ Slicer

(PNC 653654)

Heavy Duty 12Food DSLHD

5-15P

Approval: ___________________________________________

Electrolux Professional, Inc.

www.electroluxusa.com/professional

3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789

Series

Slicer

Page 1
