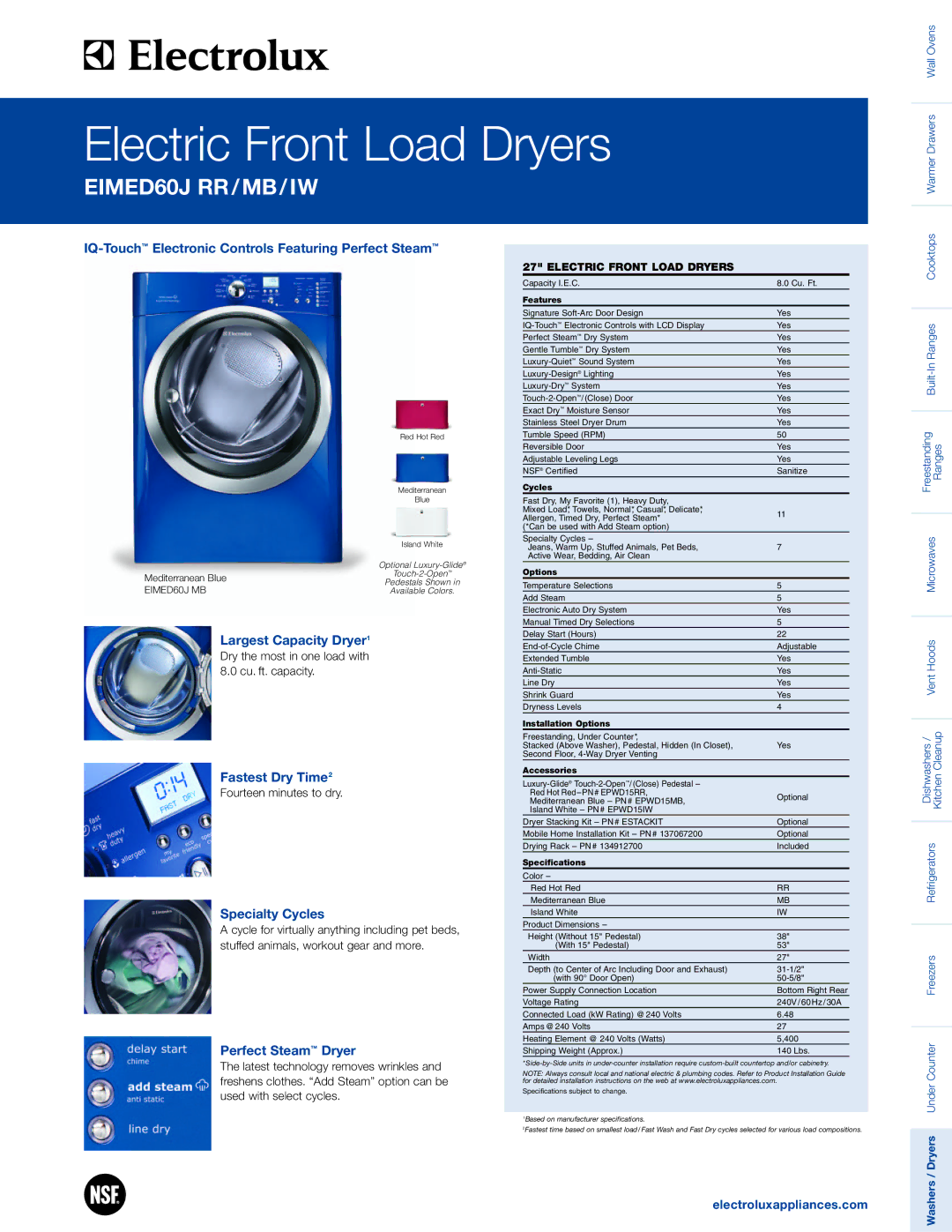

Electric Front Load Dryers
EIMED60J RR/MB/ IW

Electrolux Major Appliances, N.A.

USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
EIMED60J 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.

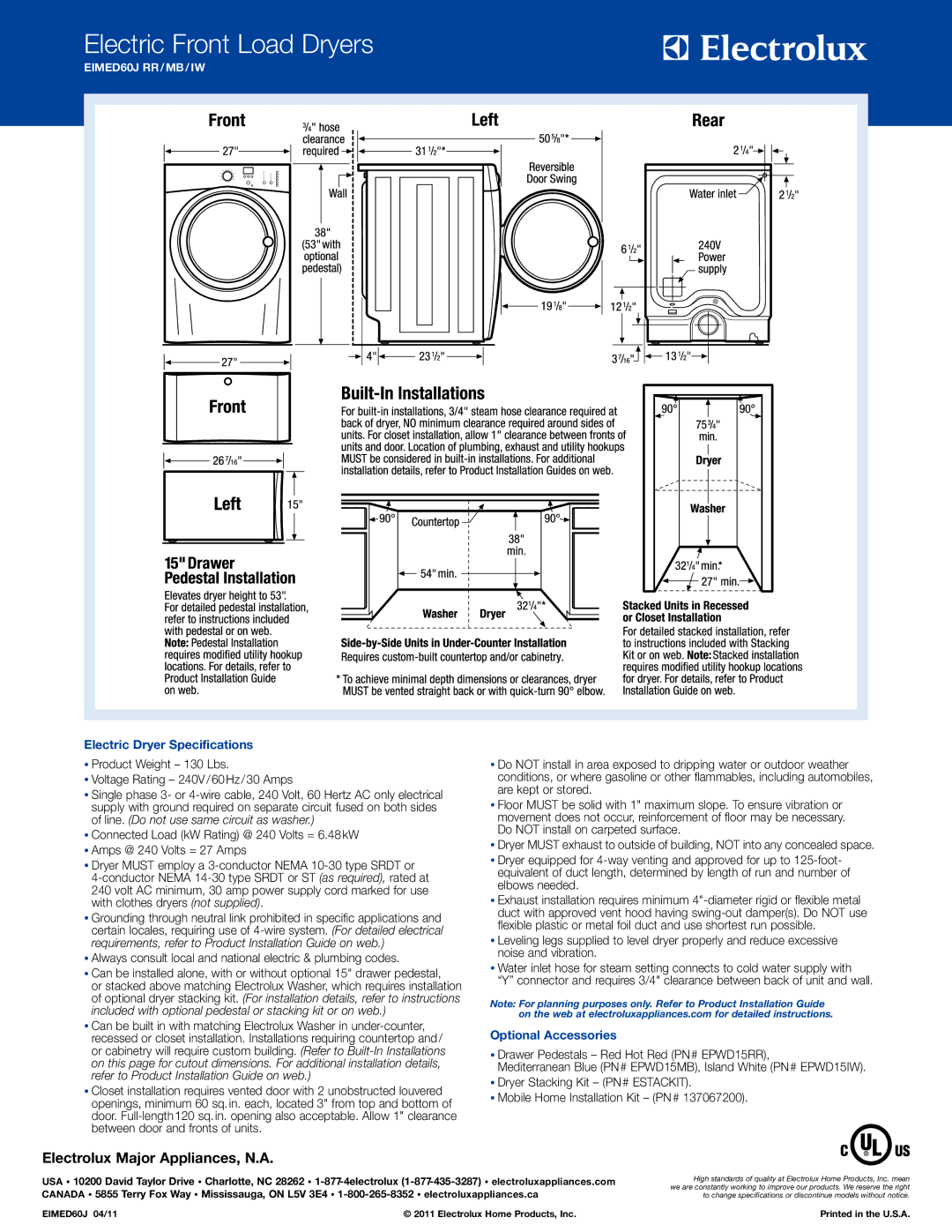

Electric Dryer Specifications
•
Product Weight – 130 Lbs.
•
Voltage Rating – 240V/60Hz /30 Amps
•
Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides
of line. (Do not use same circuit as washer.)
•
Connected Load (kW Rating) @ 240 Volts = 6.48kW
•
Amps @ 240 Volts = 27 Amps
•
Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or
4-conductor NEMA 14-30 type SRDT or ST (as required), rated at
240 volt AC minimum, 30 amp power supply cord marked for use
with clothes dryers (not supplied).
•
Grounding through neutral link prohibited in specific applications and
certain locales, requiring use of 4-wire system. (For detailed electrical
requirements, refer to Product Installation Guide on web.)
•
Always consult local and national electric & plumbing codes.
•
Can be installed alone, with or without optional 15" drawer pedestal,
or stacked above matching Electrolux Washer, which requires installation
of optional dryer stacking kit. (For installation details, refer to instructions
included with optional pedestal or stacking kit or on web.)
•
Can be built in with matching Electrolux Washer in under-counter,
recessed or closet installation. Installations requiring countertop and/
or cabinetry will require custom building. (Refer to Built-In Installations
on this page for cutout dimensions. For additional installation details,
refer to Product Installation Guide on web.)
•
Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq.in. each, located 3" from top and bottom of
door. Full-length120 sq.in. opening also acceptable. Allow 1" clearance
between door and fronts of units.
•
Do NOT install in area exposed to dripping water or outdoor weather
conditions, or where gasoline or other flammables, including automobiles,
are kept or stored.
•
Floor MUST be solid with 1" maximum slope. To ensure vibration or
movement does not occur, reinforcement of floor may be necessary.
Do NOT install on carpeted surface.
•
DryerMUST exhaust to outside of building, NOT into any concealed space.
•
Dryer equipped for 4-way venting and approved for up to 125-foot-
equivalent of duct length, determined by length of run and number of
elbows needed.
•
Exhaust installation requires minimum 4"-diameter rigid or flexible metal
duct with approved vent hood having swing-out damper(s). Do NOT use
flexible plastic or metal foil duct and use shortest run possible.
•
Leveling legs supplied to level dryer properly and reduce excessive
noise and vibration.
•
Water inlet hose for steam setting connects to cold water supply with
“Y” connector and requires 3/4" clearance between back of unit and wall.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
Drawer Pedestals – Red Hot Red (PN# EPWD15RR),
Mediterranean Blue (PN# EPWD15MB), Island White (PN# EPWD15IW).
•
Dryer Stacking Kit – (PN# ESTACKIT).
•
Mobile Home Installation Kit – (PN# 137067200).
