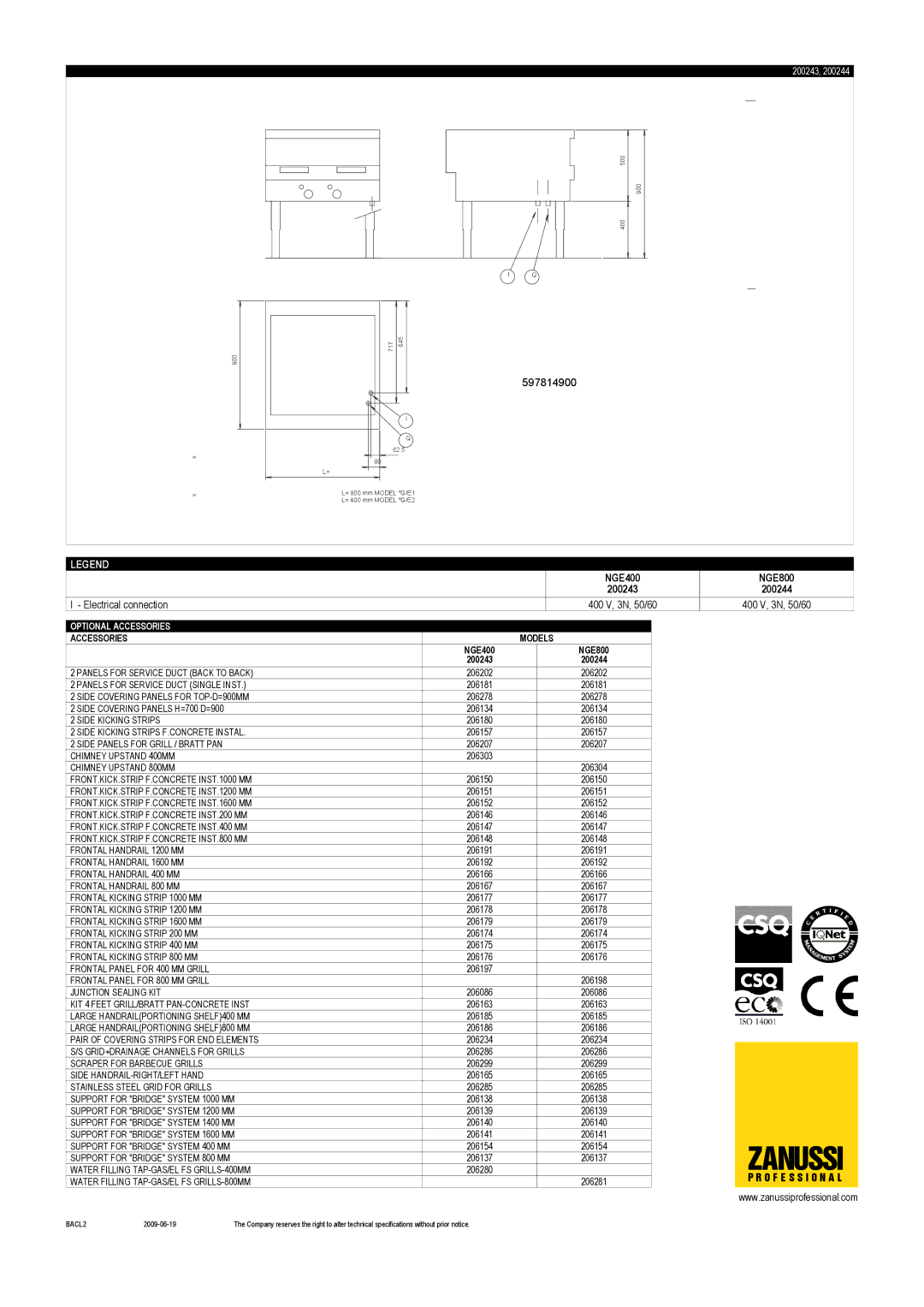

Electrolux NGE400, NGE800 dimensions Range Composition, Functional and Construction Features

RANGE

COMPOSITION

N 900: a range of over 150 models for the professional caterer designed to guarantee the highest level of performance, reliability, energy saving, safety standards and ergonomic operation. These concepts are reflected in the total modularity of the range that ensures innumerable configurations, either free-standing, bridged or cantilever. N900 demonstrates how advanced technology can satisfy the needs of the professional caterer.

The models detailed on this sheet are 2 electric grills in half and a full module versions ideal for grilling fish and meats.

Model 200244

FUNCTIONAL AND CONSTRUCTION FEATURES

�Incoloy armoured heating elements positioned beneath the cooking grids.

�Each half module is provided with one bank of three heating elements (2,5 Kw each).

�Temperature control thermostat for each bank of elements.

�'Power on' indicator light.

�Worktop in 20/10 stainless steel. Front and side panels in stainless steel with Scotch Brite finish.

�All models have right-angled side edges to allow flush fitting joins between units, eliminating gaps and possible dirt traps.

�Cast-iron grids and stainless steel splashguard on three sides.

�Large pull-out excess fat container. The use of water in those containers permits the fast lowering of the fats temperature thus guaranteeing a genuine cooking and the evaporation of the water permits

			N 900
ELECTRIC GRILLS			ZANUSSI
			P R O F E S S I O N A L
to maintain the foods delicate.	Productivity (full module)
� The grids are suitable on two	� 336 hamburger fresh 100 gr
sides: the first side, sloped with	� 240 Pilard of veal 80 gr
drainage channels, can be dedicated	� 420	Sliced zucchini 1/2 cm
to very fatty meats and the second	� 168	Pork ribs 160 gr
side, flat, can be used to cook fish,	� 360	Sliced turkey 100 gr
vegetables or hamburgers.	� 108	Sliced salmon 200 gr
� The special design of the control	� 60 Angler 500 gr
knob system guarantees against	� 12 Turbot 1 kg
water infiltration.
� All models can be installed on
cantilever system.

� Main connections can be via the base of the unit.

� All models provided with service duct to facilitate installation.

� IPX5 water protection.

TECHNICAL DATA
CHARACTERISTICS		MODELS
	NGE400		NGE800
	200243		200244
Power supply	Electric		Electric
External dimensions - mm
width	400		800
depth	900		900
height	850		850
Power - kW
installed-electric	7.5		15
Net weight - kg.	60		94
Supply voltage	400 V, 3N, 50/60		400 V, 3N, 50/60
