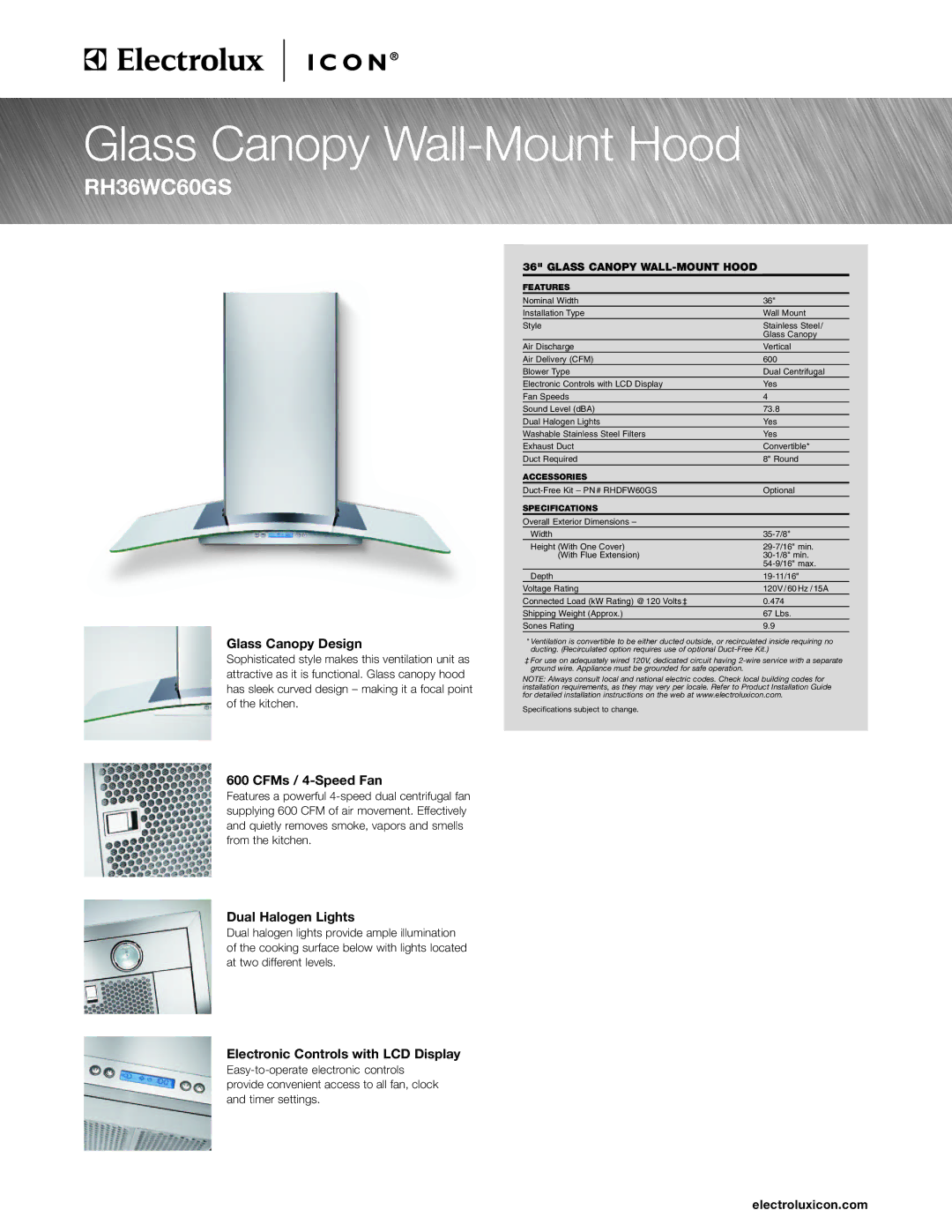

Glass Canopy Wall-Mount Hood

RH36WC60GS

	Top	10 13/16"
Air outlet - 7 7/8" diam.		Wiring box

4 9/16"

Controls

2 9/16"

13 3/16"

Dimensions		301/8"
		min.
from base of
hood to ceiling,		54 9/16"
and include		max.
clearance
required for
installation.
	29 7/16"
	(min.
	height
	with one
	cover)

35 7/8"

19 11/16"

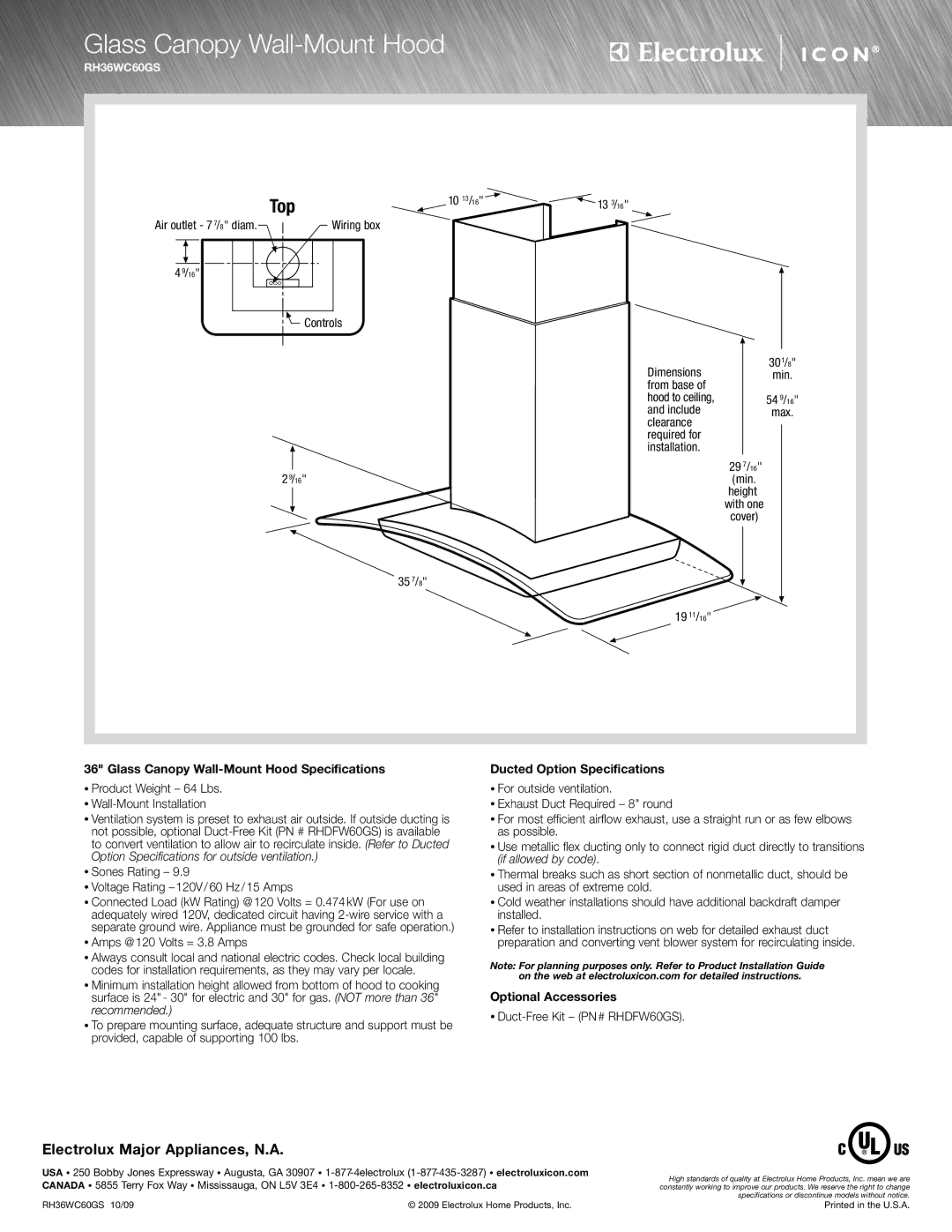

36" Glass Canopy Wall-Mount Hood Specifications

•Product Weight – 64 Lbs.

•Wall-Mount Installation

•Ventilation system is preset to exhaust air outside. If outside ducting is not possible, optional Duct-Free Kit (PN # RHDFW60GS) is available to convert ventilation to allow air to recirculate inside. (Refer to Ducted Option Specifications for outside ventilation.)

•Sones Rating – 9.9

•Voltage Rating – 120V/60 Hz/15 Amps

•Connected Load (kW Rating) @120 Volts = 0.474kW (For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.)

•Amps @120 Volts = 3.8 Amps

•Always consult local and national electric codes. Check local building codes for installation requirements, as they may vary per locale.

•Minimum installation height allowed from bottom of hood to cooking surface is 24" - 30" for electric and 30" for gas. (NOT more than 36" recommended.)

•To prepare mounting surface, adequate structure and support must be provided, capable of supporting 100 lbs.

Ducted Option Specifications

•For outside ventilation.

•Exhaust Duct Required – 8" round

•For most efficient airflow exhaust, use a straight run or as few elbows as possible.

•Use metallic flex ducting only to connect rigid duct directly to transitions (if allowed by code).

•Thermal breaks such as short section of nonmetallic duct, should be used in areas of extreme cold.

•Cold weather installations should have additional backdraft damper installed.

•Refer to installation instructions on web for detailed exhaust duct preparation and converting vent blower system for recirculating inside.

Note: For planning purposes only. Refer to Product Installation Guide on the web at electroluxicon.com for detailed instructions.

Optional Accessories

•Duct-Free Kit – (PN# RHDFW60GS).
