ITEM # _______________________________________________



MODEL # _____________________________________________

Modular Cooking Range Line

PROJECT NAME # ______________________________________

S90 Electric Solid Top on

SIS # _________________________________________________

Electric Oven, C-Board, 1 Side

AIA # _________________________________________________





Modular Cooking Range Line

S90 Electric Solid Top on Electric Oven, C-Board, 1 Side

584148 (WLWWCFOOOC) S90 Electric Solid Top, electric oven, c-board,

1side operation – 208 V

584149 (WLXWCFOOOC) S90 Electric Solid Top, electric oven, c-board,

1side operation – 240 V

Short Form Specification

Item No. ___________________________________

Unit to be Electrolux S90 Heavy Duty Electric Solid Top on Electric Oven. Electric characteristics to be ___208 V or ___240 V three phase. Unit to have raised rear c-board for against the wall or back to back unit installation. Unit shall have joint free large cooking surface with 4 heating areas with individual temperature settings for each zone from as low as 212 °F (100 °C) to as high as 842 °F (450 °C). Large flat cooking surface made of mild steel permits the use of a number of various sized pots and pans, all easily moved across the surface without lifting. Body and open base of unit entirely in 304 stainless steel. Unit shall have heavy duty 304 stainless steel internal frame. Extra strength work top in heavy duty 0.118″ (3 mm) stainless steel. “Lasertec” connection system permits units to be connected to each other creating a seamless work top.

Covered by Electrolux Platinum Star® Service Program two-year parts and one-year labor warranty, installation start-up and perfor- mance check-up after one year from installation.

Main features

•4 high powered heating electric zones.

•Solid top made of mild steel, smooth pore-free and easy to clean.

•4 heating zones independently controlled.

•Surface temperature can be regulated with two power levels up to 842 °F (450 °C) for a very high degree of accuracy.

•Joint free large cooking surface.

•Rapid heat up of the plate and continuously ready for use.

•Setting different temperature zones provides a temperature gradient over the plate for different cooking needs.

•Various sizes of pans can be used at the same time due to large surface area with no intermediate sectors.

•Pans can easily be moved from one area to another without lifting.

•Base compartment consists of an electric heated standard oven for base heat. Ovens equipped with one stainless steel grid and one enameled baking tray.

•Oven temperature up to 644 °F (340 °C).

•Thick steel base plate in the oven for an even temperature distribution and storage.

•Heavy duty internal frame in 304 type stainless steel.

•Control parts are protected against water and heat.

•All major components can be accessed from the front for ease of maintenance.

•“Lasertec connection system” creates seamless work top when units are connected to each other.

•Raised rear c-board permits unit to be connected up against the wall for better hygiene.

•Unit delivered with four 7-7/8″ (200 mm) legs as standard (all round stainless steel kick plates as option).

Optional Accessories

•Set 4 castors (2 with brake).

•Left side stainless steel 0.118″ (3 mm) panel.

•Right side stainless steel 0.118″ (3 mm) panel.

•5″ (130 mm) portioning shelf.

•7.8″ (200 mm) portioning shelf.

•All round stainless steel kick plates.

•Polinox steel wool for solid top cleaning.

Modular CookingRange S90 Electric Solid Top on Electric Oven, C-Board,

Approval: ___________________________________________

Electrolux Professional, Inc.

www.electroluxusa.com/professional

3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789

Line 1 Side

Page 1 Page 2

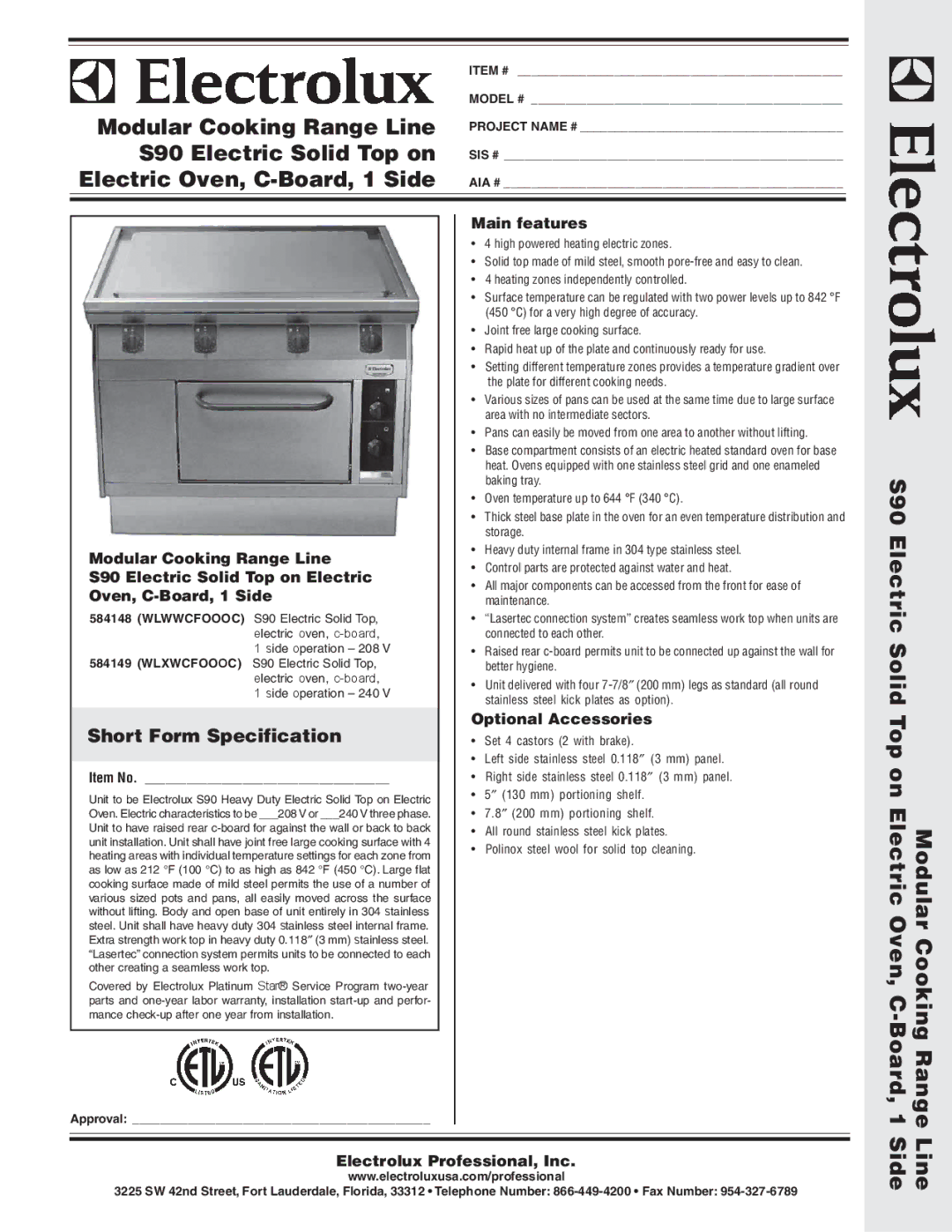

Page 1
