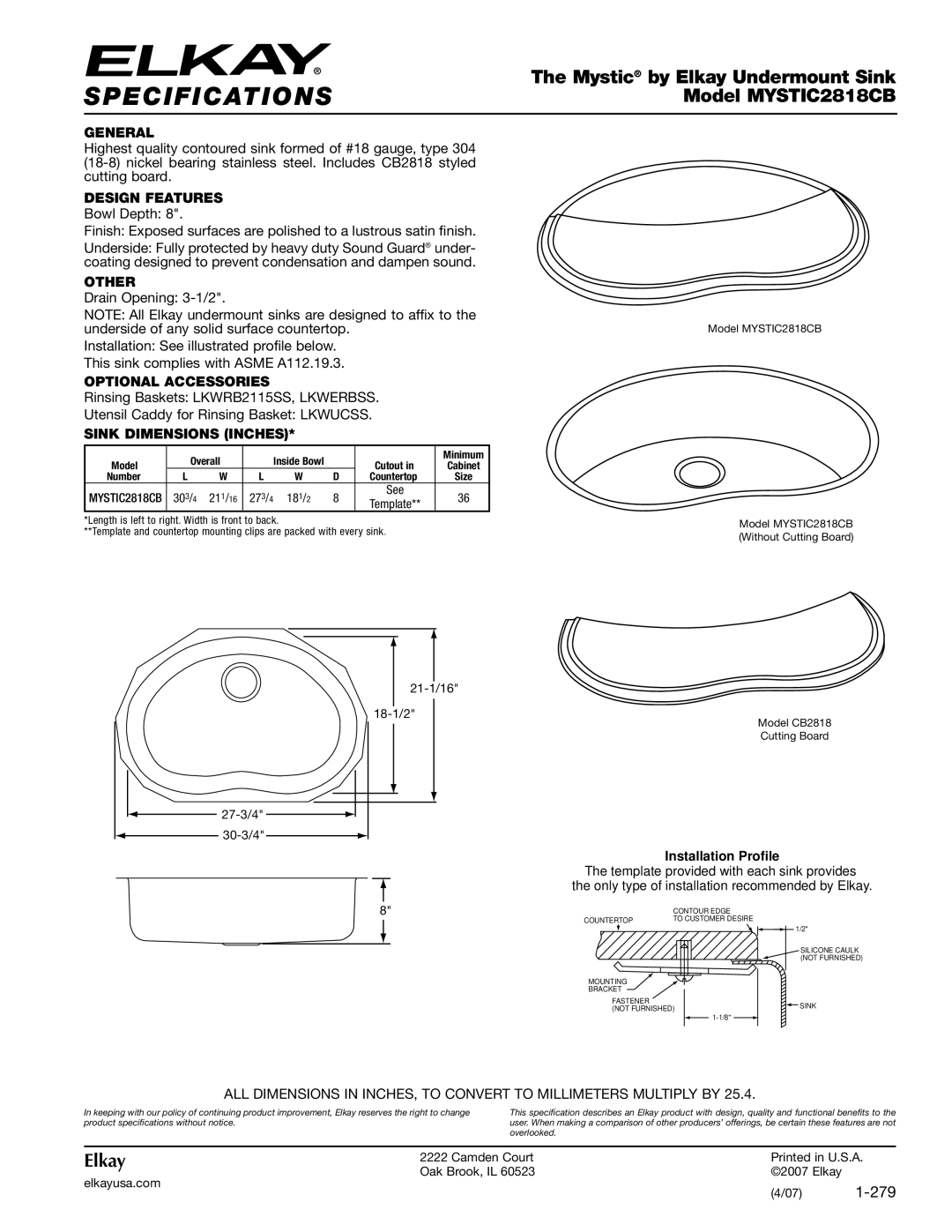

® | The Mystic® by Elkay Undermount Sink | |
SPECIFICATIONS | ||
Model MYSTIC2818CB | ||
|
|
GENERAL
Highest quality contoured sink formed of #18 gauge, type 304
DESIGN FEATURES
Bowl Depth: 8".
Finish: Exposed surfaces are polished to a lustrous satin finish.
Underside: Fully protected by heavy duty Sound Guard® under- coating designed to prevent condensation and dampen sound.
OTHER
Drain Opening:
NOTE: All Elkay undermount sinks are designed to affix to the underside of any solid surface countertop.
Installation: See illustrated profile below. This sink complies with ASME A112.19.3.
OPTIONAL ACCESSORIES
Rinsing Baskets: LKWRB2115SS, LKWERBSS.
Utensil Caddy for Rinsing Basket: LKWUCSS.
SINK DIMENSIONS (INCHES)*
|
| Overall |
| Inside Bowl |
|
| Minimum |
Model |
|
|
| Cutout in | Cabinet | ||
Number | L | W | L | W | D | Countertop | Size |
MYSTIC2818CB 303/4 211/16 273/4 181/2 | 8 | See | 36 | |
Template** | ||||
|
|
| ||
*Length is left to right. Width is front to back. |
|
|
| |
**Template and countertop mounting clips are packed with every sink. |
|
8"
Model MYSTIC2818CB
Model MYSTIC2818CB
(Without Cutting Board)
Model CB2818
Cutting Board
Installation Profile
The template provided with each sink provides the only type of installation recommended by Elkay.
| CONTOUR EDGE |
COUNTERTOP | TO CUSTOMER DESIRE |
1/2"
SILICONE CAULK (NOT FURNISHED)
MOUNTING
BRACKET
FASTENER | SINK | |
(NOT FURNISHED) | ||
| ||
|
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice.
This specification describes an Elkay product with design, quality and functional benefits to the user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
