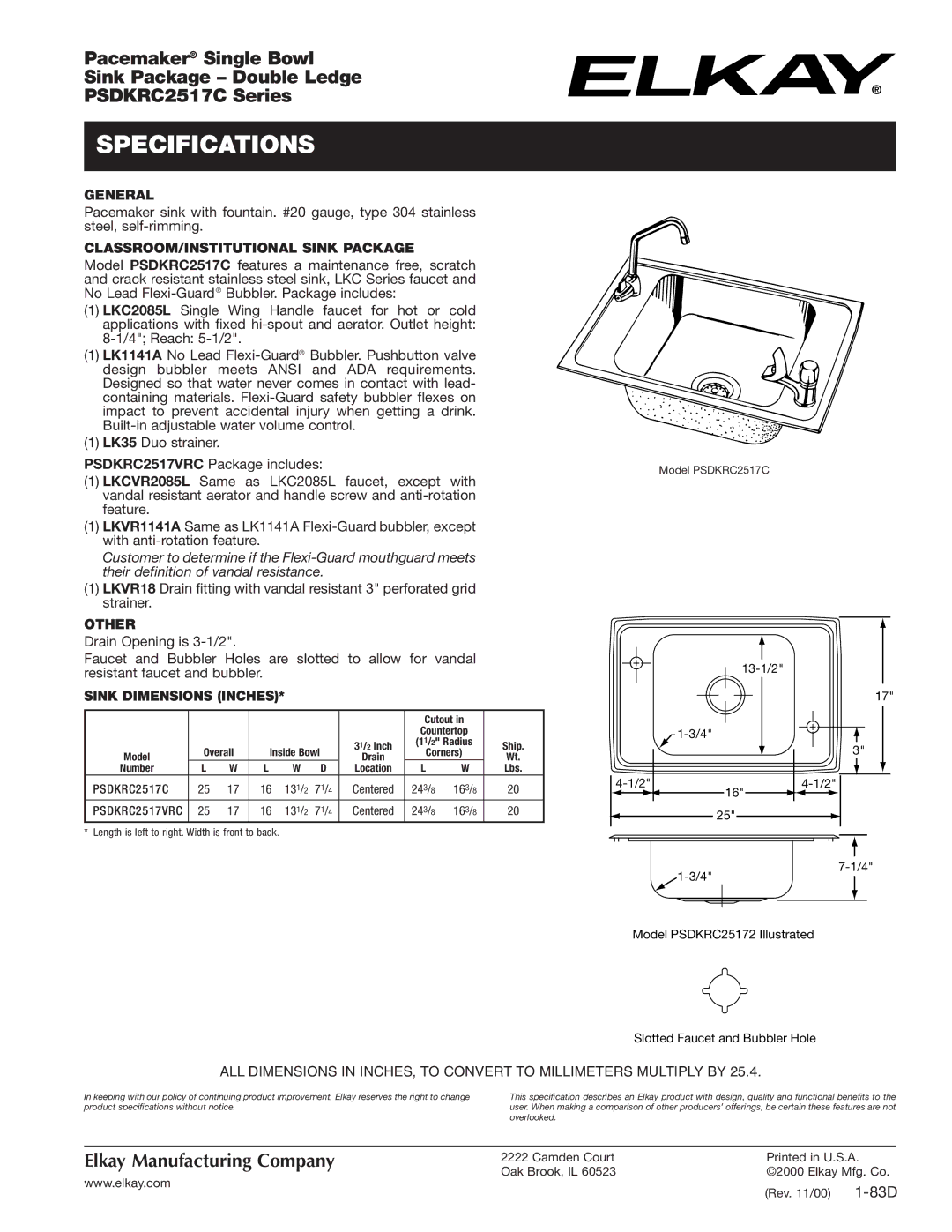

Pacemaker® Single Bowl

Sink Package – Double Ledge

PSDKRC2517C Series

SPECIFICATIONS

GENERAL

Pacemaker sink with fountain. #20 gauge, type 304 stainless steel, self-rimming.

CLASSROOM/INSTITUTIONAL SINK PACKAGE

Model PSDKRC2517C features a maintenance free, scratch and crack resistant stainless steel sink, LKC Series faucet and No Lead Flexi-Guard®Bubbler. Package includes:

(1)LKC2085L Single Wing Handle faucet for hot or cold applications with fixed hi-spout and aerator. Outlet height: 8-1/4"; Reach: 5-1/2".

(1)LK1141A No Lead Flexi-Guard®Bubbler. Pushbutton valve design bubbler meets ANSI and ADA requirements. Designed so that water never comes in contact with lead- containing materials. Flexi-Guard safety bubbler flexes on impact to prevent accidental injury when getting a drink. Built-in adjustable water volume control.

(1) LK35 Duo strainer.

PSDKRC2517VRC Package includes:

(1)LKCVR2085L Same as LKC2085L faucet, except with vandal resistant aerator and handle screw and anti-rotation feature.

(1)LKVR1141A Same as LK1141A Flexi-Guard bubbler, except with anti-rotation feature.

Customer to determine if the Flexi-Guard mouthguard meets their definition of vandal resistance.

(1)LKVR18 Drain fitting with vandal resistant 3" perforated grid strainer.

OTHER

Drain Opening is 3-1/2".

Faucet and Bubbler Holes are slotted to allow for vandal resistant faucet and bubbler.

SINK DIMENSIONS (INCHES)*















Cutout in

















Countertop





Overall

Inside Bowl

31/2 Inch

(11/2" Radius

Ship.

Model

Drain

Corners)

Wt.

Number

L

W

L

W

D

Location

L

W

Lbs.

PSDKRC2517C

25

17

16

131/2

71/4

Centered

243/8

163/8

20

PSDKRC2517VRC

25

17

16

131/2

71/4

Centered

243/8

163/8

20

* Length is left to right. Width is front to back.

®

Model PSDKRC2517C



13-1/2"



17"



1-3/4"



3"

4-1/2"

4-1/2"



16"



25"

7-1/4"

1-3/4"

Model PSDKRC25172 Illustrated

Slotted Faucet and Bubbler Hole

ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice.

This specification describes an Elkay product with design, quality and functional benefits to the user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.

Elkay Manufacturing Company

2222 Camden Court

Printed in U.S.A.

Oak Brook, IL 60523

©2000 Elkay Mfg. Co.

www.elkay.com



(Rev. 11/00) 1-83D





Page 1
Image 1
Elkay PSDKRC25172, PSDKRC2517VRC specifications Specifications, General, CLASSROOM/INSTITUTIONAL Sink Package, Other

PSDKRC2517C, PSDKRC25172, PSDKRC2517VRC specifications

The Elkay PSDKRC25172, PSDKRC2517VRC, and PSDKRC2517C represent a trio of innovative devices designed for enhanced kitchen functionality, quality, and aesthetics. At the heart of these products is Elkay’s commitment to offering premium solutions suitable for both residential and commercial settings.

One of the standout features of these models is their robust construction. Made from high-quality stainless steel, they are engineered to withstand daily wear and tear while maintaining an elegant appearance. The durable finish not only resists rust and corrosion but also ensures easy cleaning, making it ideal for busy kitchens.

The PSDKRC25172 boasts a spacious double bowl design, perfect for multitasking in meal preparation and clean-up. It allows users to efficiently separate tasks, such as washing vegetables and cleaning dishes simultaneously. This feature enhances workflow and ensures that everything is done quickly and efficiently. Meanwhile, the PSDKRC2517VRC and PSDKRC2517C models provide a mix of single and double bowl configurations, catering to diverse user preferences and kitchen layouts.

All three models are outfitted with advanced sound-dampening technology, which minimizes noise during use. This is particularly beneficial in homes and restaurants where a peaceful ambiance is desired. The innovative design also promotes optimal drainage, helping to prevent clogs and maintain cleanliness.

In terms of installation, Elkay has made it straightforward. Each model supports undermount installation, allowing for a seamless transition between the countertop and sink. This design not only maximizes counter space but also creates an elegant and streamlined look.

The Elkay PSDKRC25172, PSDKRC2517VRC, and PSDKRC2517C also incorporate practical features such as deep bowls which accommodate large pots and baking sheets, ensuring that no task is too big. Accessibility and ease of use are further improved with rounded corners that provide a clean aesthetic while allowing for easy cleaning.

Moreover, these sinks feature multiple hole configurations to suit various faucet styles, making customization easy. From traditional to modern faucets, users can select fixtures that complement their kitchen decor.

Overall, the Elkay PSDKRC25172, PSDKRC2517VRC, and PSDKRC2517C emerge as top-tier choices for anyone looking to enhance their kitchen experience. They blend functionality with style, ensuring that they can handle the demands of everyday life while contributing to an attractive kitchen environment. With Elkay’s reputation for quality and innovation, these models exemplify the brand's dedication to excellence in kitchen design.
