17A2 17" All-in-OneTouchcomputer

Expanded Versatility for POS Applications

Elo TouchSystems 17A2 17" All-in-one touchcomputer

provides an attractive ultra-compact 17” touch solution that can fit virtually anywhere in any point-of-service environment.

Expanded versatility, bigger screen, and improved serviceability all in a compact design

The 17A2 touchcomputer with dual video display support includes a choice of Elo TouchSystems newest breakthrough touch technology, Acoustic Pulse Recognition, AccuTouch five-wire resistive, IntelliTouch surface acoustic wave or CarrollTouch Infrared. Its 1280 X 1024 SXGA resolution with a 5 x 4 aspect ratio displays clear, precise graphics for improvedreadability.A variety of optionalfield-replace- able peripherals can easily be integrated into the 17A2's compact design including: magnetic stripe reader, vacuum fluorescent, rear-facing customer display, biometric finger- print recognition device, and speaker bar with/without a built-in single or omni-directional barcode scanner.

Designed for public access

The silent, fanless, spill and tamper resistant design of the 17A2 and its compact integrated peripherals, make this touchcomputer a preferred choice for point-of-sale, kiosk and point-of-interest applications.

Features

■Space saving, integrated, all-in-one touchcomputer with the footprint of a standard 17" LCD display

■Silent, fanless Intel Celeron M design-ideal for POS, kiosk and POI applications

■Industry standard VESA mounting options— configurable as a desktop or wall-mount

■Choice of Microsoft Windows Embedded for POS (WEPOS), XP Professional or Microsoft Windows XP Embedded operating systems

■Full range of “field” replaceable and serviceable POS options such as an integrated MSR, vacuum fluorescent, rear-facing customer display, biometric fingerprint recognition device, and speaker bar with/without a built in single or omni-directional barcode scanner

■Availablewith AccuTouchfive-wire resistive, CarrollTouch Infrared, IntelliTouch surface acoustic wave or Acoustic Pulse Recognition (APR) touch technologies

■Integrated (optional)wireless LAN & DVD for expanded access and advanced media applications

■One Ethernet, two serial, and four high-speed USB 2.0 ports for maximum expansion

■Designed for public access with cables hidden from user's view; OSD and cable lockout function to mini- mize public tampering

Page 1 Page 2
Page 1
Image 1
Elo TouchSystems manual 17A2 17 All-in-OneTouchcomputer, Expanded Versatility for POS Applications, Features
Page 1 Page 2

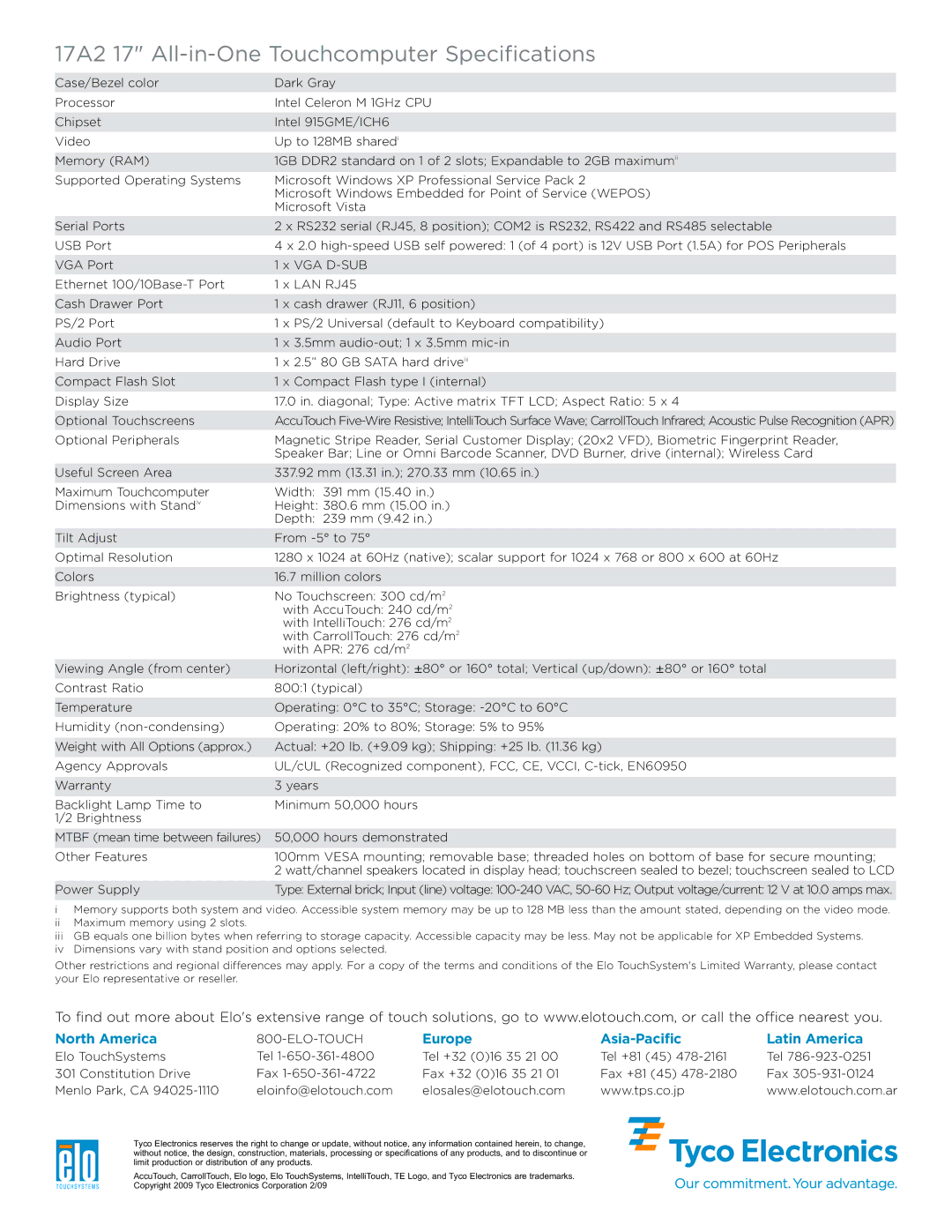

17A2 specifications

Elo TouchSystems has long been a leader in the touchscreen technology market, and their 17A2 model is a testament to their commitment to innovative design and user-friendly interfaces. The Elo 17A2 is an all-in-one touchmonitor that integrates seamlessly into a wide range of environments, from retail applications to hospitality solutions.

One of the standout features of the Elo 17A2 is its high-quality display. This model boasts a 17-inch diagonal screen with a resolution of 1280 x 1024 pixels, ensuring clear and vibrant visuals that capture the attention of users. The LCD technology utilized in the 17A2 provides excellent color reproduction and contrast, making it suitable for viewing in various lighting conditions.

The Elo 17A2 incorporates Elo’s patented IntelliTouch technology, which is recognized for its ability to deliver a fast and responsive touch experience. This technology utilizes a unique optical method to detect touch, enabling accurate and precise inputs. Whether users are executing simple taps or complex gestures, the IntelliTouch system ensures that every interaction is smooth and immediate.

Another characteristic that sets the Elo 17A2 apart is its durability. Designed with robustness in mind, this touchscreen monitor is built to withstand the rigors of high-traffic environments. The screen surface is treated with an anti-glare coating that not only reduces reflections but also resists scratches, making it ideal for public use.

Connectivity is also a strong suit for the Elo 17A2. The monitor features multiple input options, including VGA and DVI, providing versatility for integration with various computer systems. The VESA mount compatibility allows for easy installation in diverse settings, whether it’s on a desktop or mounted on a wall.

The Elo 17A2 is designed with energy efficiency in mind. It consumes less power compared to many conventional displays, which not only reduces energy costs but also aligns with sustainability goals in various organizations.

In conclusion, the Elo TouchSystems 17A2 is a feature-rich touchscreen monitor that excels in performance, durability, and ease of integration. Its advanced touch technologies, high-resolution display, and robust build make it a reliable choice for businesses seeking to enhance user interaction while maintaining aesthetic appeal. Whether used in retail, hospitality, or customer service, the Elo 17A2 remains a top contender in the touchscreen market.
