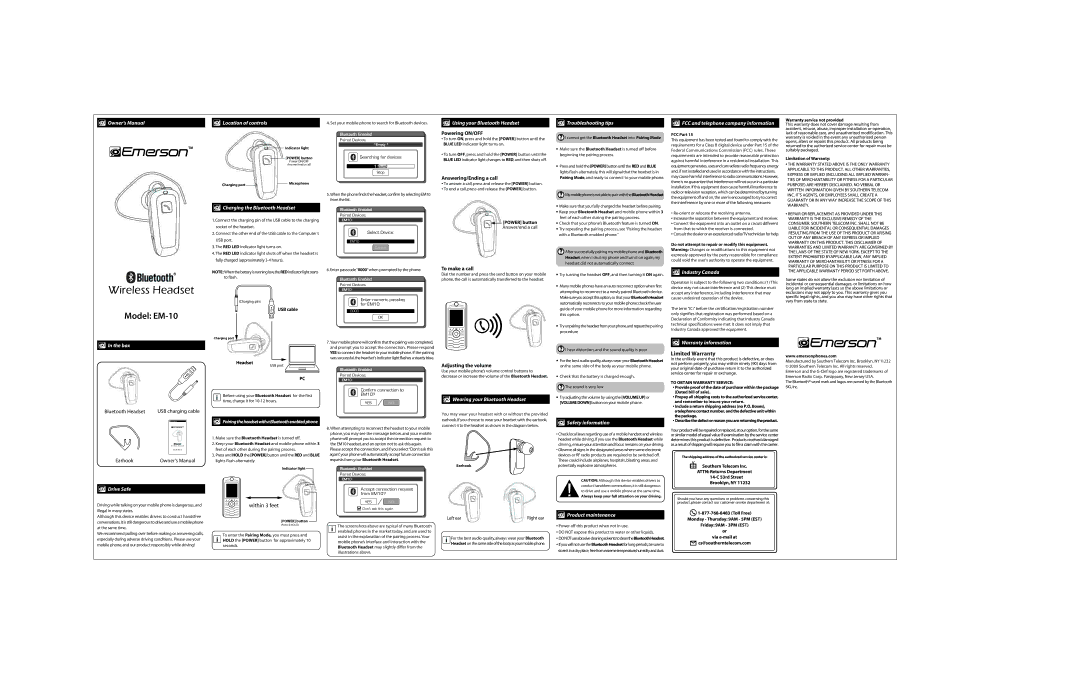

Owner’s Manual
®
Wireless Headset
Model: EM-10
Location of controls
Indicator light
[POWER] button
Power ON/OFF
Answer/end a call
Charging port | Microphone |
|
Charging the Bluetooth Headset
1.Connect the charging pin of the USB cable to the charging socket of the headset.
2.Connect the other end of the USB cable to the Computer’s USB port.
3.The RED LED indicator light turns on.
4.The RED LED indicator light shuts off when the headset is fully charged (approximately
NOTE: Whenthebatteryisrunninglow, theREDindicatorlightstarts to flash.
(Charging pin)
USB cable
4. Set your mobile phone to search for Bluetooth devices.
Bluetooth:
Enabled
Paired Devices:
*Empty *
Searching for devices
1found Stop
5.When the phone finds the headset, confirm by selecting EM10 from the list.
Bluetooth:
Enabled
Paired Devices:
EM10
Select Device:
EM10
Cancel
6. Enter passcode“0000” when prompted by the phone.
Bluetooth:
Enabled
Paired Devices:
EM10
Enter numeric passkey for EM10:
0000
OK
Using your Bluetooth Headset
Powering ON/OFF
•To turn ON, press and hold the [POWER] button until the BLUE LED indicator light turns on.
•To turn OFF, press and hold the [POWER] button until the BLUE LED indicator light changes to RED, and then shuts off.
Answering/Ending a call
•To answer a call, press and release the [POWER] button.
•To end a call, press and release the [POWER] button.
[POWER] button
Answer/end a call
To make a call
Dial the number and press the send button on your mobile phone, the call is automatically transferred to the headset.
Troubleshooting tips
I cannot get the Bluetooth Headset into Pairing Mode
•Make sure the Bluetooth Headset is turned off before beginning the pairing process.
•Press and hold the [POWER] buttonuntil the RED and BLUE lights flash alternately, this will signal that the headset is in Pairing Mode, and ready to connect to your mobile phone.
Mymobilephoneisnotabletopair withtheBluetoothHeadset
•Make sure that you fully charged the headset before pairing.
•Keep your Bluetooth Headset and mobile phone within 3 feet of each other during the pairing process.
•Check that your phone’s Bluetooth feature is turned ON.
•Try repeating the pairing process, see “Pairing the headset with a Bluetooth enabled phone.”
After successfully pairing my mobile phone and Bluetooth Headset,when I shut my phone and turn it on again, my headset did not automatically connect
•Try turning the headset OFF, and then turning it ON again.
•Many mobile phones have an auto reconnect option when first attempting to reconnect to a newly paired Bluetooth device. Makesureyouacceptthisoption, so that your BluetoothHeadset automatically reconnects to your mobile phone;check the user guide of your mobile phone for more information regarding this option.
•Tryunpairingtheheadsetfromyourphone, andrepeatthepairing procedure
FCC and telephone company information
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. This equipment generates, usesandcanradiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference toradiocommunications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer oranexperienced radio/TV technician for help.
Do not attempt to repair or modify this equipment. Warning: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Industry Canada
Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.
Warranty service not provided
This warranty does not cover damage resulting from accident, misuse, abuse, improper installation or operation, lack of reasonable care, and unauthorized modification. This warranty is voided in the event any unauthorized person opens, alters or repairs this product. All products being returned to the authorized service center for repair must be suitably packaged.
Limitation of Warranty:
•THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRAN- TIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION GIVEN BY SOUTHERN TELECOM INC. IT’S AGENTS, OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.
•REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. SOUTHERN TELECOM INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF NEW YORK. EXCEPT TO THE EXTENT PROHIBITED BYAPPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion nor limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.
In the box
Bluetooth Headset | USB charging cable | ||
|
|
| |
|
| Owner’s Manual |
|
|
|
| ® |
| Wireless Headset | ||
| Model: | ||
Earhook | Owner’s Manual | ||
Drive Safe
Driving while talking on your mobile phone is dangerous, and
Charging port
Headset |
|
| |
USB port | |||
| |||
|
| PC | |
Before using your Bluetooth Headset for the first time, charge it for
PairingtheheadsetwithaBluetoothenabledphone
1.Make sure the Bluetooth Headset is turned off.
2.Keep your Bluetooth Headset and mobile phone within 3 feet of each other during the pairing process.
3.Press and HOLD the [POWER] button until the RED and BLUE lights flash alternately.
Indicator light
within 3 feet
7.Your mobile phone will confirm that the pairing was completed, and prompt you to accept the connection. Please respond YES to connect the headset to your mobile phone. If the pairing was successful, the headset’s indicator light flashes a steady blue.
Bluetooth:
Enabled
Paired Devices:
EM10
Confirm connection to
EM10?
YES / NO
8.When attempting to reconnect the headset to your mobile phone, you may see the message below, and your mobile phone will prompt you to accept the connection request to the EM10 headset, and an option not to ask this again.
Please accept the connection, and if you select“Don’t ask this again”, your phone will automatically accept future connection requests from your Bluetooth Headset.
Bluetooth:
Enabled
Paired Devices:
EM10
Accept connection request from EM10?
YES / NO
Don’t ask this again
Adjusting the volume
Use your mobile phone’s volume control buttons to decrease or increase the volume of the Bluetooth Headset.
Wearing your Bluetooth Headset
You may wear your headset with or without the provided earhook. If you choose to wear your headset with the earhook, connect it to the headset as shown in the diagram below.
Earhook
I hear distortion, and the sound quality is poor
•For the best audio quality, always wear your Bluetooth Headset onthe same side of the body as your mobile phone.
•Check that the battery is charged enough.
The sound is very low
•Try adjusting the volume by using the [VOLUME UP] or [VOLUME DOWN] button on your mobile phone.
Safety information
•Check local laws regarding use of a mobile handset and wireless headset while driving. If you use the Bluetooth Headset while driving, ensure your attention and focus remains on your driving.
•Observe all signs in the designated areas where some electronic devices or RF radio products are required to be switched off. These could include airplanes, hospitals, blasting areas, and potentially explosive atmospheres.
CAUTION: Although this device enables drivers to conduct handsfree conversations, it is still dangerous to drive and use a mobile phone at the same time.
Always keep your full attention on your driving.
Warranty information
Limited Warranty
In the unlikely event that this product is defective, or does not perform properly, you may within ninety (90) days from your original date of purchase return it to the authorized service center for repair or exchange.
TO OBTAIN WARRANTY SERVICE:
•Provide proof of the date of purchase within the package (Dated bill of sale).
•Prepay all shipping costs to the authorized service center, and remember to insure your return.
•Include a return shipping address (no P.O. Boxes),
a telephone contact number, and the defective unit within the package.
•Describe thedefectorreasonyou are returningtheproduct.
Your product will be repaired or replaced, at our option, for the same or similar model of equal value if examination by the service center determines this product is defective. Products received damaged as a result of shipping will require you to file a claim with the carrier.
The shipping address of the authorized service center is:
Southern Telecom Inc.
ATTN: Returns Department
Brooklyn, NY 11232
Should you have any questions or problems concerning this product, please contact our customer service department at:
www.emersonphones.com
Manufactured by Southern Telecom Inc. Brooklyn, NY 11232 © 2009 Southern Telecom Inc. All rights reserved.
Emerson and the
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
illegal in many states.
Although this device enables drivers to conduct handsfree conversations, it is still dangerous to drive and use a mobile phone at the same time.
We recommend pulling over before making or answering calls, especially during adverse driving conditions. Please use your mobile phone, and our product responsibly while driving!
[POWER] button
(Press & HOLD)
To enter the Pairing Mode, you must press and HOLD the [POWER] button for approximately 10 seconds.
The screenshots above are typical of many Bluetooth enabled phones in the market today, and are used to assist in the explanation of the pairing process.Your mobile phone’s interface and interaction with the Bluetooth Headset may slightly differ from the illustrations above.
Left ear | Right ear |
For the best audio quality, always wear your Bluetooth Headset onthesamesideofthebodyasyourmobilephone.
Product maintenance |
| |
| Monday - Thursday: 9AM - 5PM (EST) | |
|
| |
|
| |
• Power off this product when not in use. | Friday: 9AM - 3PM (EST) | |
• DO NOT expose this product to water or other liquids. | or | |
• DONOTuseabrasivecleaningsolventstocleantheBluetoothHeadset. | via | |
• IfyouwillnotusetheBluetoothHeadsetforlongperiods, besureto | cs@southerntelecom.com | |
| ||
storeitinadryplace, freefromextremetemperature, humidityanddust. |
| |
