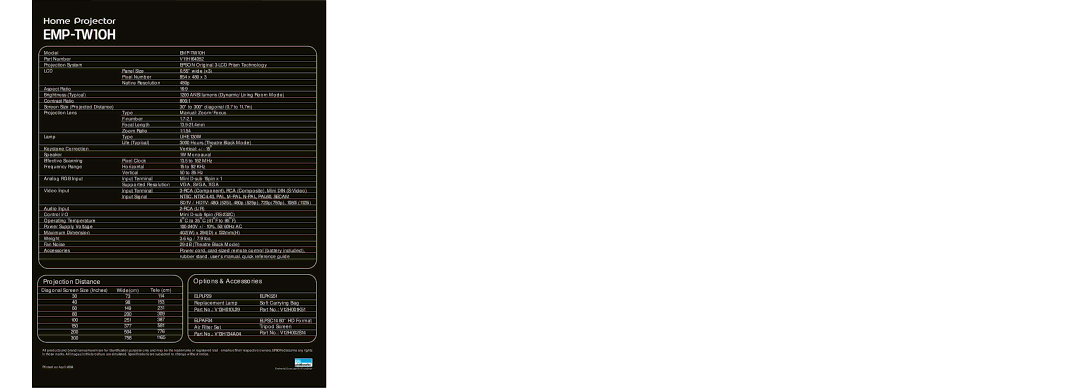

Epson emp-tw10h brochure Projection Distance Options & Accessories

Model				EMP-TW10H
Part Number				V11H164052
Projection System				EPSON Original 3-LCD Prism Technology
LCD			Panel Size	0.55" wide (x3)
			Pixel Number	854 x 480 x 3
			Native Resolution	480p
Aspect Ratio				16:9
Brightness (Typical)				1200 ANSI lumens (Dynamic/Living Room Mode)
	Contrast Ratio			800:1
	Screen Size (Projected Distance)			30" to 300" diagonal (0.7 to 11.7m)
	Projection Lens		Type	Manual: Zoom/Focus
			F-number	1.7-2.1
			Focal Length	13.9-21.4mm
			Zoom Ratio	1:1.54
Lamp			Type	UHE 130W
			Life (Typical)	3000 Hours (Theatre Black Mode)
	Keystone Correction			Vertical: +/- 15o
	Speaker			1W Monoaural
	Effective Scanning		Pixel Clock	13.5 to 162 MHz
	Frequency Range		Horizontal	15 to 92 KHz
			Vertical	50 to 85 Hz
Analog RGB Input			Input Terminal	Mini D-sub 15pin x 1
			Supported Resolution	VGA, SVGA, XGA
Video Input			Input Terminal	3-RCA (Component), RCA (Composite), Mini DIN (S-Video)
			Input Signal	NTSC, NTSC4.43, PAL, M-PAL, N-PAL, PAL60, SECAM
				SDTV / HDTV: 480i (525i), 480p (525p), 720p(750p), 1080i (1125i)
Audio		Input		2-RCA (L/R)
Control		I/O		Mini D-sub 9pin (RS-232C)
Operating Temperature				5oC to 35oC (41oF to 95oF)
Power Supply Voltage				100-240V +/- 10%, 50/60Hz AC
Maximum Dimension				402(W) x 294(D) x 122mm(H)
Weight				3.6 kg / 7.9 lbs
Fan Noise				29 dB (Theatre Black Mode)
Accessories				Power cord, card-sized remote control (battery included),
				rubber stand, user's manual, quick reference guide

Projection Distance			Options & Accessories
Diagonal Screen Size (Inches)	Wide(cm)	Tele (cm)
30	73	114	ELPLP29	ELPKS51
40	98	153	Replacement Lamp	Soft Carrying Bag
60	149	231	Part No.: V13H010L29	Part No.: V12H001K51
80	200	309
100	251	387
			ELPAF04	ELPSC14 80” HD Format
150	377	581	Air Filter Set	Tripod Screen
200	504	776	Part No.: V13H134A04	Part No.: V12H002S14
300	758	1165

All products and brand names herein are for identification purpose only and may be the trademarks or registered trad emarks oftheir respective owners. EPSON disclaims any rights in those marks. All images in this brochure are simulated. Specifications are subjected to change without notice.

Printed on April 2004

Pixelworks ICs are used in this projector
