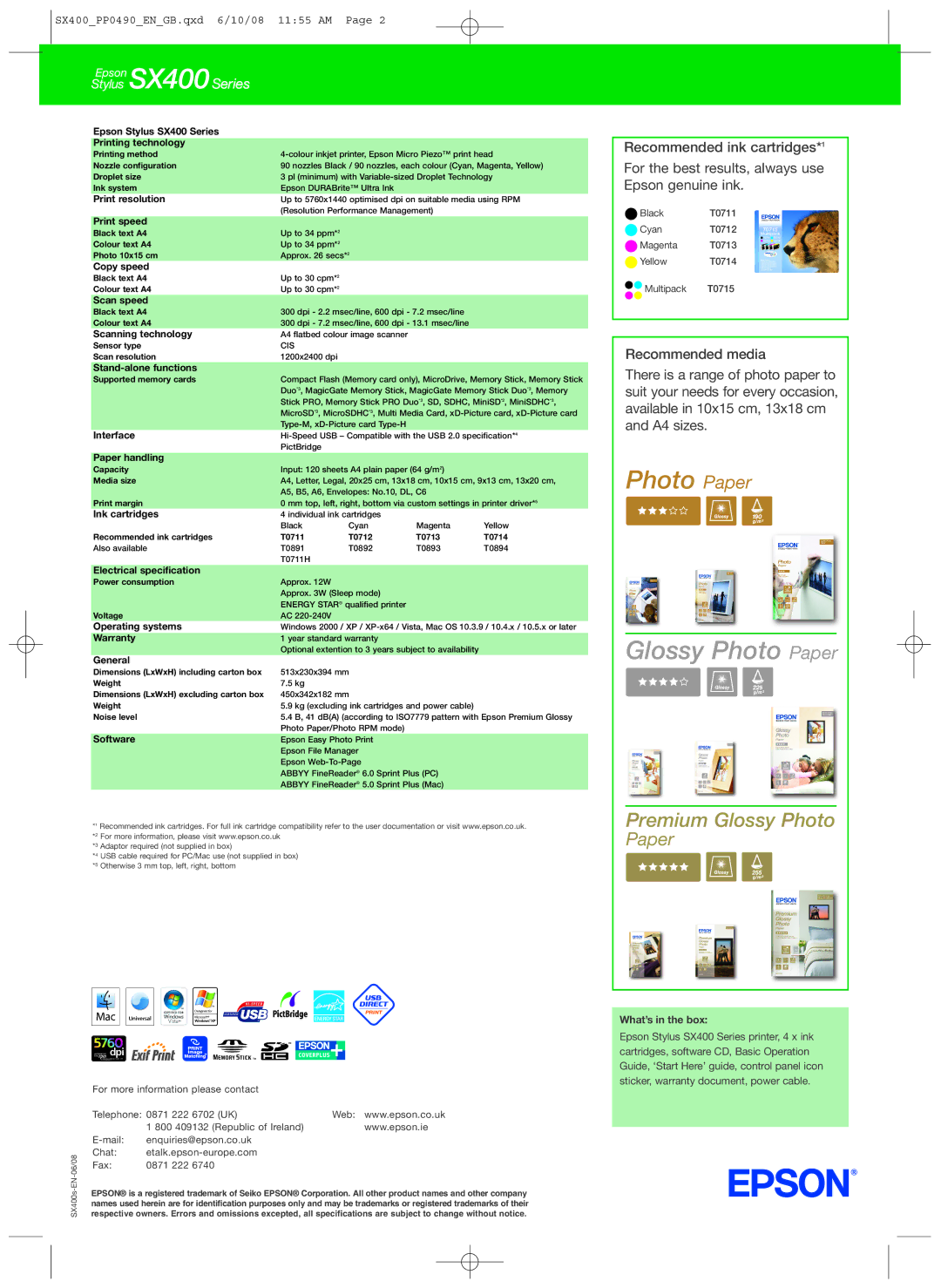

Epson Stylus SX400 Series

Printing technology

Printing method	4-colour inkjet printer, Epson Micro Piezo™ print head
Nozzle configuration	90 nozzles Black / 90 nozzles, each colour (Cyan, Magenta, Yellow)
Droplet size	3 pl (minimum) with Variable-sized Droplet Technology
Ink system	Epson DURABrite™ Ultra Ink
Print resolution	Up to 5760x1440 optimised dpi on suitable media using RPM
	(Resolution Performance Management)
Print speed
Black text A4	Up to 34 ppm*2
Colour text A4	Up to 34 ppm*2
Photo 10x15 cm	Approx. 26 secs*2
Copy speed
Black text A4	Up to 30 cpm*2
Colour text A4	Up to 30 cpm*2
Scan speed
Black text A4	300 dpi - 2.2 msec/line, 600 dpi - 7.2 msec/line
Colour text A4	300 dpi - 7.2 msec/line, 600 dpi - 13.1 msec/line
Scanning technology	A4 flatbed colour image scanner
Sensor type	CIS
Scan resolution	1200x2400 dpi
Stand-alone functions
Supported memory cards	Compact Flash (Memory card only), MicroDrive, Memory Stick, Memory Stick
	Duo*3, MagicGate Memory Stick, MagicGate Memory Stick Duo*3, Memory
	Stick PRO, Memory Stick PRO Duo*3, SD, SDHC, MiniSD*2, MiniSDHC*3,
	MicroSD*3, MicroSDHC*3, Multi Media Card, xD-Picture card, xD-Picture card
	Type-M, xD-Picture card Type-H
Interface	Hi-Speed USB – Compatible with the USB 2.0 specification*4
	PictBridge
Paper handling
Capacity	Input: 120 sheets A4 plain paper (64 g/m2)
Media size	A4, Letter, Legal, 20x25 cm, 13x18 cm, 10x15 cm, 9x13 cm, 13x20 cm,
	A5, B5, A6, Envelopes: No.10, DL, C6
Print margin	0 mm top, left, right, bottom via custom settings in printer driver*5
Ink cartridges	4 individual ink cartridges
	Black	Cyan	Magenta	Yellow
Recommended ink cartridges	T0711	T0712	T0713	T0714
Also available	T0891	T0892	T0893	T0894
	T0711H
Electrical specification
Power consumption	Approx. 12W
	Approx. 3W (Sleep mode)
	ENERGY STAR® qualified printer
Voltage	AC 220-240V
Operating systems	Windows 2000 / XP / XP-x64 / Vista, Mac OS 10.3.9 / 10.4.x / 10.5.x or later
Warranty	1 year standard warranty
	Optional extention to 3 years subject to availability
General
Dimensions (LxWxH) including carton box	513x230x394 mm
Weight	7.5 kg
Dimensions (LxWxH) excluding carton box	450x342x182 mm
Weight	5.9 kg (excluding ink cartridges and power cable)
Noise level	5.4 B, 41 dB(A) (according to ISO7779 pattern with Epson Premium Glossy
Software	Photo Paper/Photo RPM mode)
	Epson Easy Photo Print
	Epson File Manager

Epson Web-To-Page

ABBYY FineReader® 6.0 Sprint Plus (PC)

ABBYY FineReader® 5.0 Sprint Plus (Mac)

*1 Recommended ink cartridges. For full ink cartridge compatibility refer to the user documentation or visit www.epson.co.uk. *2 For more information, please visit www.epson.co.uk

*3 Adaptor required (not supplied in box)

*4 USB cable required for PC/Mac use (not supplied in box) *5 Otherwise 3 mm top, left, right, bottom

	For more information please contact
	Telephone:	0871 222 6702 (UK)	Web: www.epson.co.uk
		1 800 409132 (Republic of Ireland)	www.epson.ie
	E-mail:	enquiries@epson.co.uk
SX400s-EN-06/08	Chat:	etalk.epson-europe.com
	Fax:	0871 222 6740
	EPSON® is a registered trademark of Seiko EPSON® Corporation. All other product names and other company
	names used herein are for identification purposes only and may be trademarks or registered trademarks of their
	respective owners. Errors and omissions excepted, all specifications are subject to change without notice.

Recommended ink cartridges*1

For the best results, always use Epson genuine ink.

Black	T0711
Cyan	T0712
Magenta	T0713
Yellow	T0714
Multipack	T0715

Recommended media

There is a range of photo paper to suit your needs for every occasion, available in 10x15 cm, 13x18 cm and A4 sizes.

Photo Paper

Glossy Photo Paper

Premium Glossy Photo

Paper

What’s in the box:

Epson Stylus SX400 Series printer, 4 x ink cartridges, software CD, Basic Operation Guide, ‘Start Here’ guide, control panel icon sticker, warranty document, power cable.
