Operating elements ECOR264 Quick Reference Guide

1Remote Control Receiver: Receiver for IR remote control.

2USB 2.0 (front): For connecting USB-Flash-Drive to copy/archive video or for firmware upgrades.

3DVD+RW burner for DVD model. (D models only) (Replaced by hot swap drive on “R” models)

4Channel keys 1~16 (1~9, 1~4): Press channel key (CH1~CH16) / (CH1~CH9) / (CH1~CH4) to display that channel in full screen view.

5I /◄◄: Fast reverse playback or step reverse playback depending on playback

mode.

6I I / : Reverse playback or pause

7 Stop playback

8/ I I: Forward playback or pause

9►►/I: Fast Forward playback or step forward playback depending on playback

mode.

10View: Press this key to switch between 4x, PiP (Picture In Picture),full screen, 9x, 10x, 13x and 16x.

11SEQ: Switch sequence mode on/off.

12Display: Press this key to switch display of channels and status bar.

13Monitor: Switch between Main monitor and call monitor.

14Zoom: In full screen mode, 2x electronic zoom. Pressing the zoom key again switches the electronic zoom off.

15Search: Press this key to enter Search Menu.

16Menu/ESC: Press this key to enter/exit MAIN SETUP MENU

17 Copy: Press this key to enter Copy Menu.

18Enter/ Arrow keys: Instead of or in combination with a mouse, you can use these keys to change the Menu settings.

19Power LED: This LED ON indicates Power on.

20HDD LED:This LED ON indicates HDD active.

21Alarm LED: This LED ON indicates Alarm active.

22Network LED: This LED ON indicates Network active.

22Record LED: This LED ON indicated Record active.

Description of on-screen main menu (control bar)

1

2

3

4

5

6

7

8

9

10

1Express menu (manual chapter 4.2)

2Camera menu (manual chapter 4.3)

3Record & Play menu (manual chapter 4.4)

4Alarm & event menu (manual chapter 4.5)

5Schedule menu (manual chapter 4.6)

6Network menu (manual chapter 4.7)

7Disk menu (manual chapter 4.8)

8Display menu (manual chapter 4.9)

9System menu (manual chapter 4.10)

10Information menu (manual chapter 4.11)

P/N:4605XCOR16001AR

Page 1

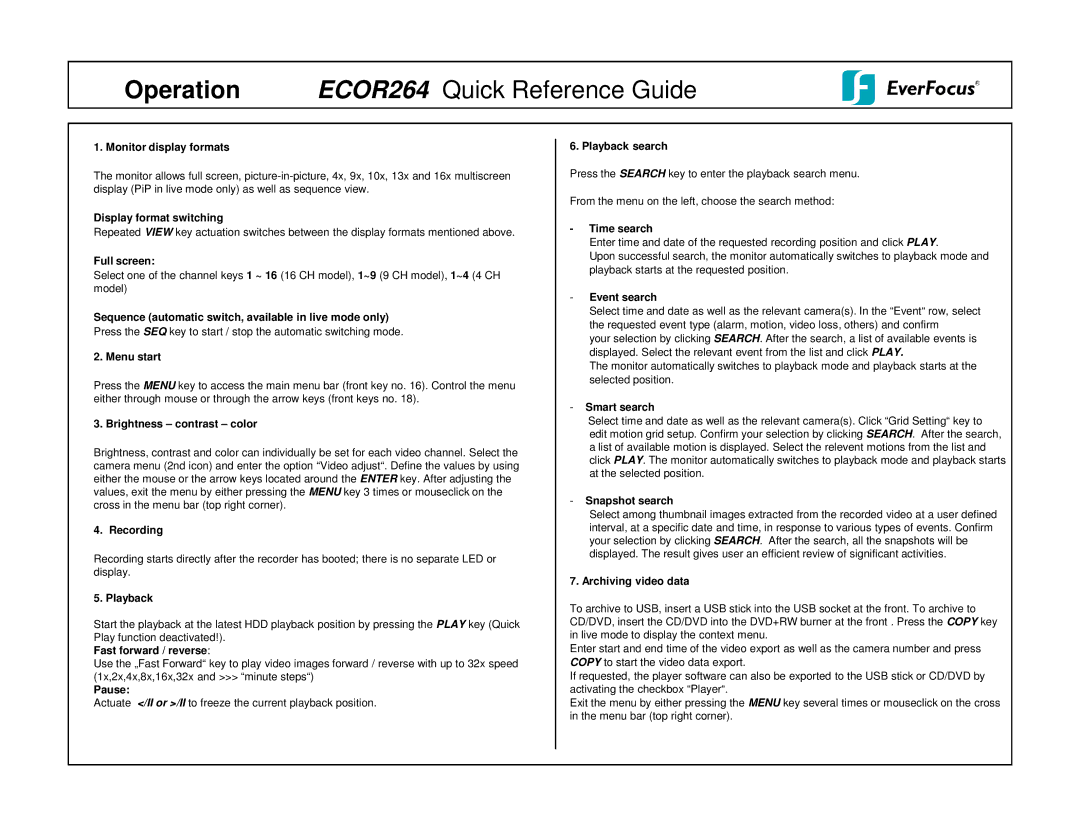

Image 1
