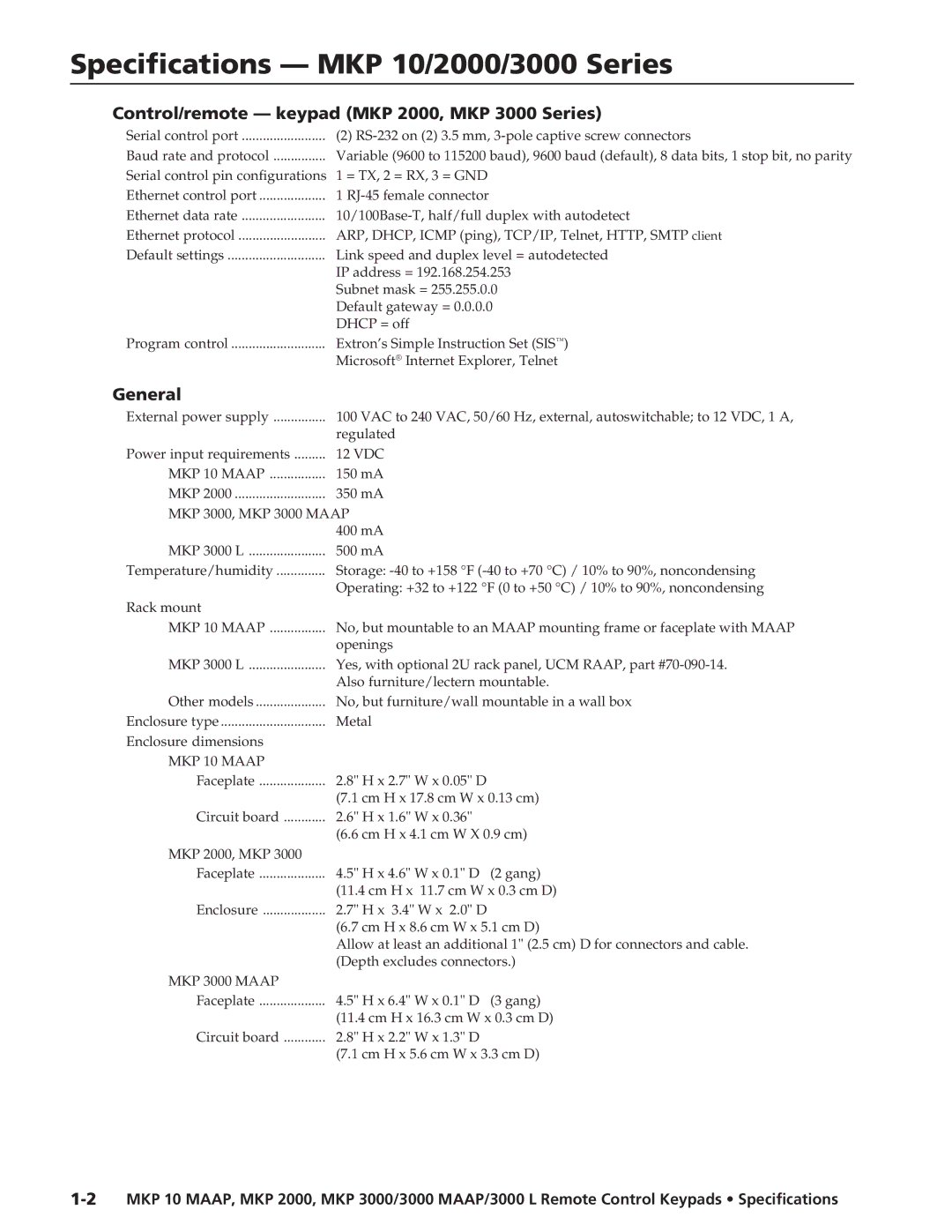

Specifications — MKP 10/2000/3000 Series

Specifications — MKP 10/2000/3000 Series

Control/remote — keypad (MKP 2000, MKP 3000 Series)

Serial control port

(2) RS-232 on (2) 3.5 mm, 3-pole captive screw connectors

Baud rate and protocol

Variable (9600 to 115200 baud), 9600 baud (default), 8 data bits, 1 stop bit, no parity

Serial control pin configurations

1 = TX, 2 = RX, 3 = GND

Ethernet control port

1 RJ-45 female connector

Ethernet data rate

10/100Base-T, half/full duplex with autodetect

Ethernet protocol

ARP, DHCP, ICMP (ping), TCP/IP, Telnet, HTTP, SMTP client

Default settings

Link speed and duplex level = autodetected



IP address = 192.168.254.253



Subnet mask = 255.255.0.0



Default gateway = 0.0.0.0



DHCP = off

Program control

Extron’s Simple Instruction Set (SIS)



Microsoft® Internet Explorer, Telnet

General

External power supply

100 VAC to 240 VAC, 50/60 Hz, external, autoswitchable; to 12 VDC, 1 A,



regulated

Power input requirements

12 VDC

MKP 10 MAAP

150 mA

MKP 2000

350 mA

MKP 3000, MKP 3000 MAAP



400 mA

MKP 3000 L

500 mA

Temperature/humidity

Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing



Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Rack mount



MKP 10 MAAP

No, but mountable to an MAAP mounting frame or faceplate with MAAP



openings

MKP 3000 L

Yes, with optional 2U rack panel, UCM RAAP, part #70-090-14.



Also furniture/lectern mountable.

Other models

No, but furniture/wall mountable in a wall box

Enclosure type

Metal

Enclosure dimensions



MKP 10 MAAP



Faceplate

2.8" H x 2.7" W x 0.05" D



(7.1 cm H x 17.8 cm W x 0.13 cm)

Circuit board

2.6" H x 1.6" W x 0.36"



(6.6 cm H x 4.1 cm W X 0.9 cm)

MKP 2000, MKP 3000



Faceplate

4.5" H x 4.6" W x 0.1" D (2 gang)



(11.4 cm H x 11.7 cm W x 0.3 cm D)

Enclosure

2.7" H x 3.4" W x 2.0" D



(6.7 cm H x 8.6 cm W x 5.1 cm D)



Allow at least an additional 1" (2.5 cm) D for connectors and cable.



(Depth excludes connectors.)

MKP 3000 MAAP



Faceplate

4.5" H x 6.4" W x 0.1" D (3 gang)



(11.4 cm H x 16.3 cm W x 0.3 cm D)

Circuit board

2.8" H x 2.2" W x 1.3" D



(7.1 cm H x 5.6 cm W x 3.3 cm D)

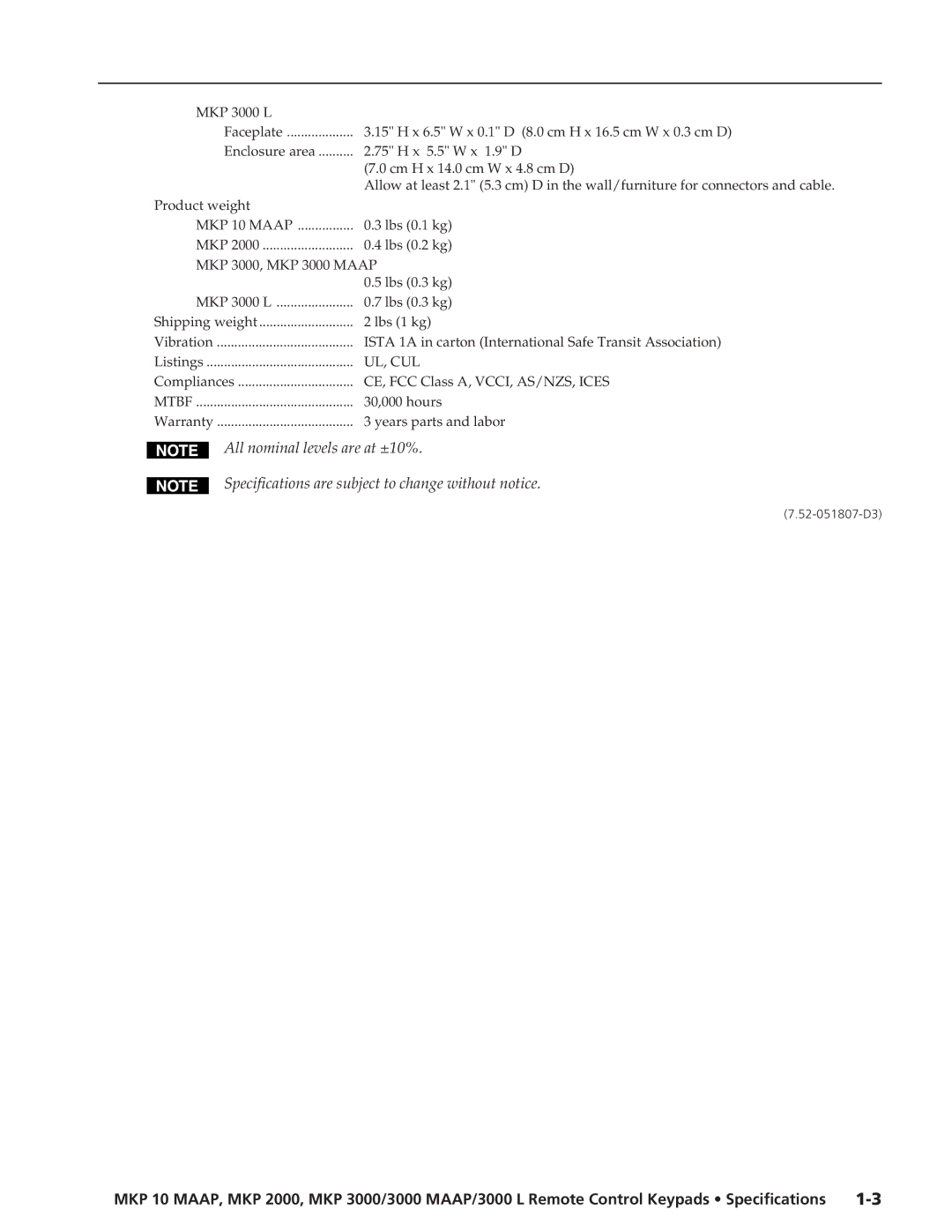

1-2MKP 10 MAAP, MKP 2000, MKP 3000/3000 MAAP/3000 L Remote Control Keypads • Specifications
