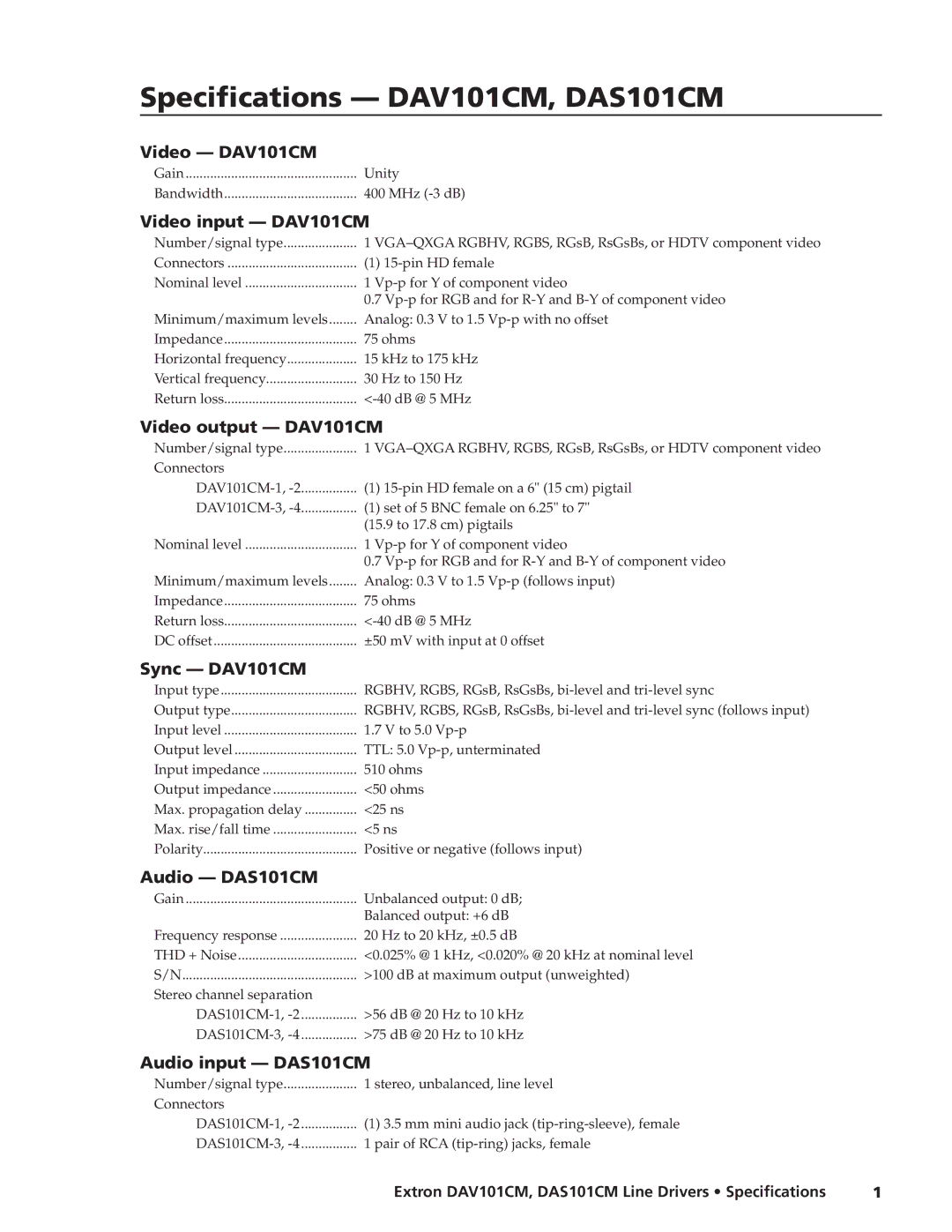

Specifications — DAV101CM, DAS101CM

Video — DAV101CM

Gain ������������������������������������������������� Unity

Bandwidth�������������������������������������� 400 MHz (-3 dB)

Video input — DAV101CM

Number/signal type���������������������

1 VGA–QXGA RGBHV, RGBS, RGsB, RsGsBs, or HDTV component video

Connectors �������������������������������������

(1) 15-pin HD female

Nominal level ��������������������������������

1 Vp-p for Y of component video



0.7 Vp-p for RGB and for R-Y and B-Y of component video

Minimum/maximum levels��������

Analog: 0.3 V to 1.5 Vp-p with no offset

Impedance��������������������������������������

75 ohms

Horizontal frequency��������������������

15 kHz to 175 kHz

Vertical frequency��������������������������

30 Hz to 150 Hz

Return loss��������������������������������������

<-40 dB @ 5 MHz

Video output — DAV101CM

Number/signal type���������������������

1 VGA–QXGA RGBHV, RGBS, RGsB, RsGsBs, or HDTV component video

Connectors



DAV101CM-1,-2����������������

(1) 15-pin HD female on a 6" (15 cm) pigtail

DAV101CM-3,-4����������������

(1) set of 5 BNC female on 6.25" to 7"



(15.9 to 17.8 cm) pigtails

Nominal level ��������������������������������

1 Vp-p for Y of component video



0.7 Vp-p for RGB and for R-Y and B-Y of component video

Minimum/maximum levels��������

Analog: 0.3 V to 1.5 Vp-p (follows input)

Impedance��������������������������������������

75 ohms

Return loss��������������������������������������

<-40 dB @ 5 MHz

DC offset�����������������������������������������

±50 mV with input at 0 offset

Sync — DAV101CM

Input type���������������������������������������

RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync

Output type������������������������������������

RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync (follows input)

Input level ��������������������������������������

1.7 V to 5.0 Vp-p

Output level �����������������������������������

TTL: 5.0 Vp-p, unterminated

Input impedance ���������������������������

510 ohms

Output impedance ������������������������

<50 ohms

Max. propagation delay ���������������

<25 ns

Max. rise/fall time ������������������������

<5 ns

Polarity �������������������������������������������

Positive or negative (follows input)

Audio — DAS101CM

Gain �������������������������������������������������

Unbalanced output: 0 dB;



Balanced output: +6 dB

Frequency response ����������������������

20 Hz to 20 kHz, ±0.5 dB

THD + Noise����������������������������������

<0.025% @ 1 kHz, <0.020% @ 20 kHz at nominal level

S/N��������������������������������������������������

>100 dB at maximum output (unweighted)

Stereo channel separation



DAS101CM-1,-2����������������

>56 dB @ 20 Hz to 10 kHz

DAS101CM-3,-4����������������

>75 dB @ 20 Hz to 10 kHz

Audio input — DAS101CM

Number/signal type���������������������

1 stereo, unbalanced, line level

Connectors



DAS101CM-1,-2����������������

(1) 3.5 mm mini audio jack (tip-ring-sleeve), female

DAS101CM-3,-4����������������

1 pair of RCA (tip-ring) jacks, female

Extron DAV101CM, DAS101CM Line Drivers • Specifications

1
