MBD 123 1U Full Rack Width Mounting Kit

NOnly 1U full rack width products can be mounted using this kit (part number 70-485-01).

This kit allows the product to be mounted to the vertical rack supports and face either the front or the rear of the rack. Refer to the drawing on the opposite side of this card.

Rack Mounting Instructions

1.Remove any installed rubber feet from the unit.

2.Remove two screws from one side of the unit. Retain the screws for possible later reassembly.

3.Attach one bracket to the side of the unit using the longer screws included in the kit.

4.Repeat steps 2 and 3 on the other side of the unit.

5.Mount the unit to the rack using the four included rack mounting screws.

Mounting Kit Contents

2 mounting brackets (left and right)

4 side bracket mounting screws

4 rack mounting screws

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500 +1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794 +1.919.863.1797 FAX

Extron Europe

Extron Asia

Extron Japan

+800.3987.6673

+800.7339.8766

+81.3.3511.7655

Inside Europe Only

Inside Asia Only

+81.3.3511.7656 FAX

+31.33.453.4040

+65.6383.4400



+31.33.453.4050 FAX

+65.6383.4664 FAX









Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800 +971.4.2991880 FAX

68-1080-01,Rev. B

01 10

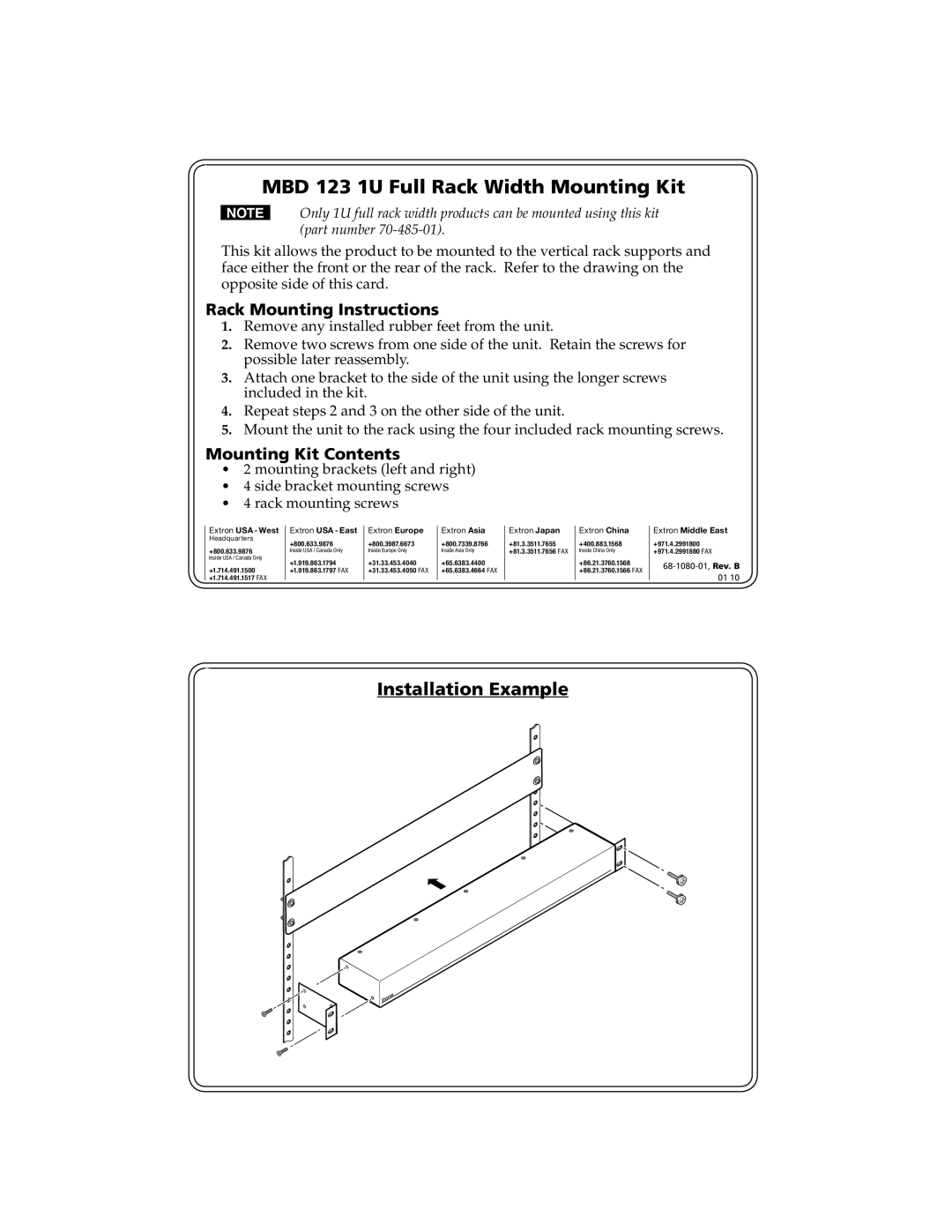

Installation Example

Page 1
