Connections
11 | Front Panel, all MDA Models |
| |
| MDA SERIES |
| DISTRIBUTION AMPLIFIER |
Power
10Power connector— Plug a standard IEC power cord into this connector to connect the MDA to a 100 to 240VAC, 50 Hz or 60 Hz power source.
11Power LED — The power LED indicates power is applied.
1
INPUT | OUTPUTS |
| IN | HIGH Z | 1 | 3 |
|
|
|
|
|
| |
LOOP | 75 Ohm | 2 | 4 | 5 | |
0.2A |
|
|
| ||
10 | 2 | 7 |
|
| 3 |
4
INPUT | OUTPUTS |
IN | 1 |
| HIGH Z |
LOOP | 75 Ohm 2 | 3 | |
0.2A |
|
| |
10 | 5 | 7 | 6 |
8MDA 5SVA RCA, Rear Panel
MDA 5SVA RCA
L |
|
|
|
|
R |
|
|
|
|
1 | 2 | 3 | 4 | 5 |
INPUT |
| OUTPUTS |
|
|
9
8MDA 3AV RCA, Rear Panel
MDA 3AV RCA
L |
|
|
R |
|
|
1 | 2 | 3 |
INPUT | OUTPUTS |
|
| 9 |
|

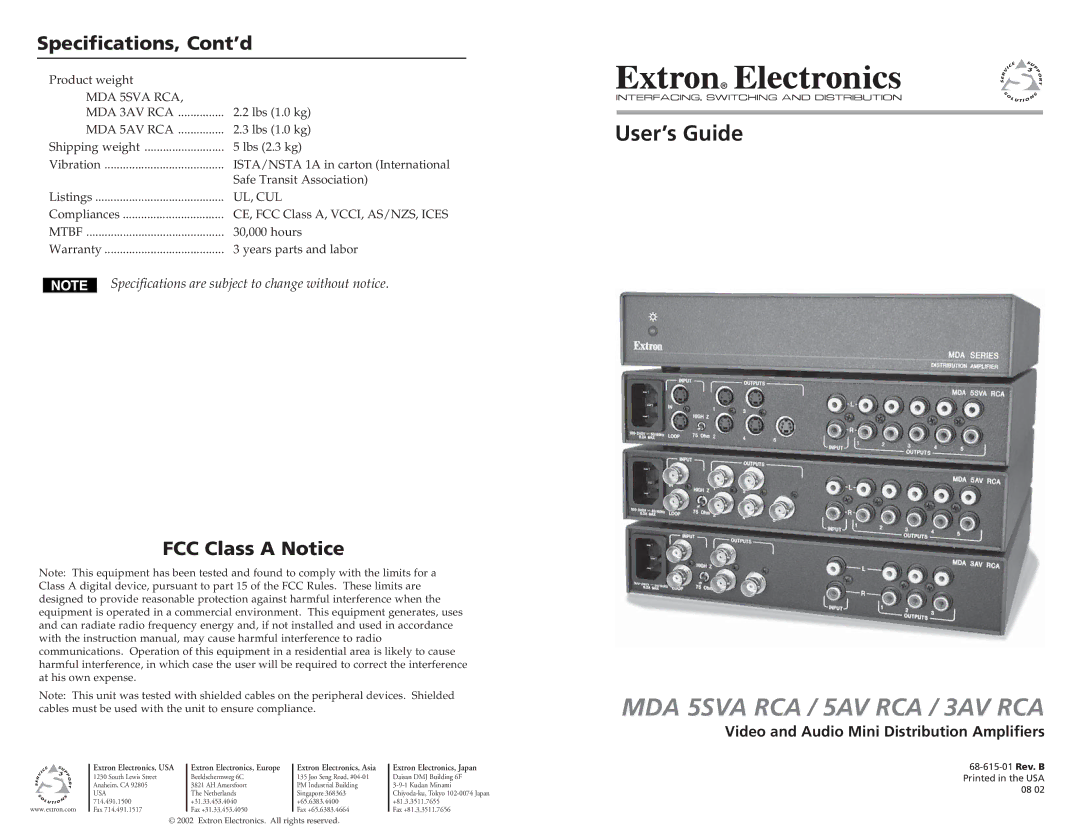

Specifications
Video
Gain | Unity |
Bandwidth |
|
MDA 5SVA RCA | 270 MHz |
MDA 3AV RCA, MDA 5AV RCA | |
| 435 MHz |
Differential phase error | 0.05º, 0 to 50 MHz |
Differential gain error | <0.05%, 0 to 50 MHz |
Video input
Number/signal type |
|
MDA 5SVA RCA | 1 NTSC/PAL/SECAM |
MDA 3AV RCA, MDA 5AV RCA | |
| 1 NTSC/PAL/SECAM composite video |
4
| INPUT | OUTPUTS |
IN | HIGH Z 1 | 3 |
LOOP | 75 Ohm 2 | 4 | 5 | |
0.2A | ||||
10 | 5 | 7 |
| 6 |
8MDA 5AV RCA, Rear Panel
MDA 5AV RCA
L |
|
|
|
|
R |
|
|
|
|
1 | 2 | 3 | 4 | 5 |
INPUT |
| OUTPUTS |
|
|
9
Connectors |
|
MDA 5SVA RCA | 1 |
MDA 3AV RCA, MDA 5AV RCA | |
| 1 BNC female |
Nominal level |
|
MDA 5SVA RCA | Y: 1.0V |
MDA 3AV RCA, MDA 5AV RCA |

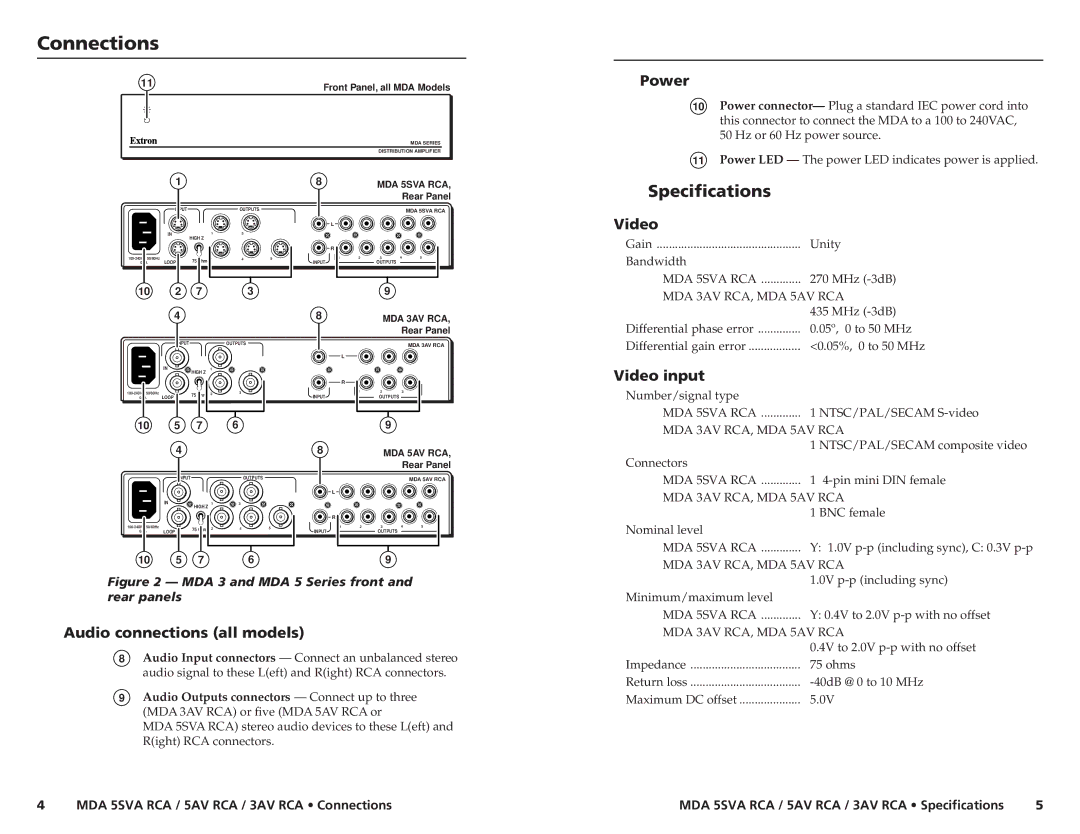

Figure 2 — MDA 3 and MDA 5 Series front and rear panels
Audio connections (all models)
8Audio Input connectors — Connect an unbalanced stereo audio signal to these L(eft) and R(ight) RCA connectors.
9Audio Outputs connectors — Connect up to three (MDA 3AV RCA) or five (MDA 5AV RCA or
MDA 5SVA RCA) stereo audio devices to these L(eft) and R(ight) RCA connectors.
| 1.0V |
Minimum/maximum level |
|
MDA 5SVA RCA | Y: 0.4V to 2.0V |
MDA 3AV RCA, MDA 5AV RCA | |
| 0.4V to 2.0V |
Impedance | 75 ohms |
Return loss | |
Maximum DC offset | 5.0V |
4 | MDA 5SVA RCA / 5AV RCA / 3AV RCA • Connections | MDA 5SVA RCA / 5AV RCA / 3AV RCA • Specifications | 5 |
