Specifications

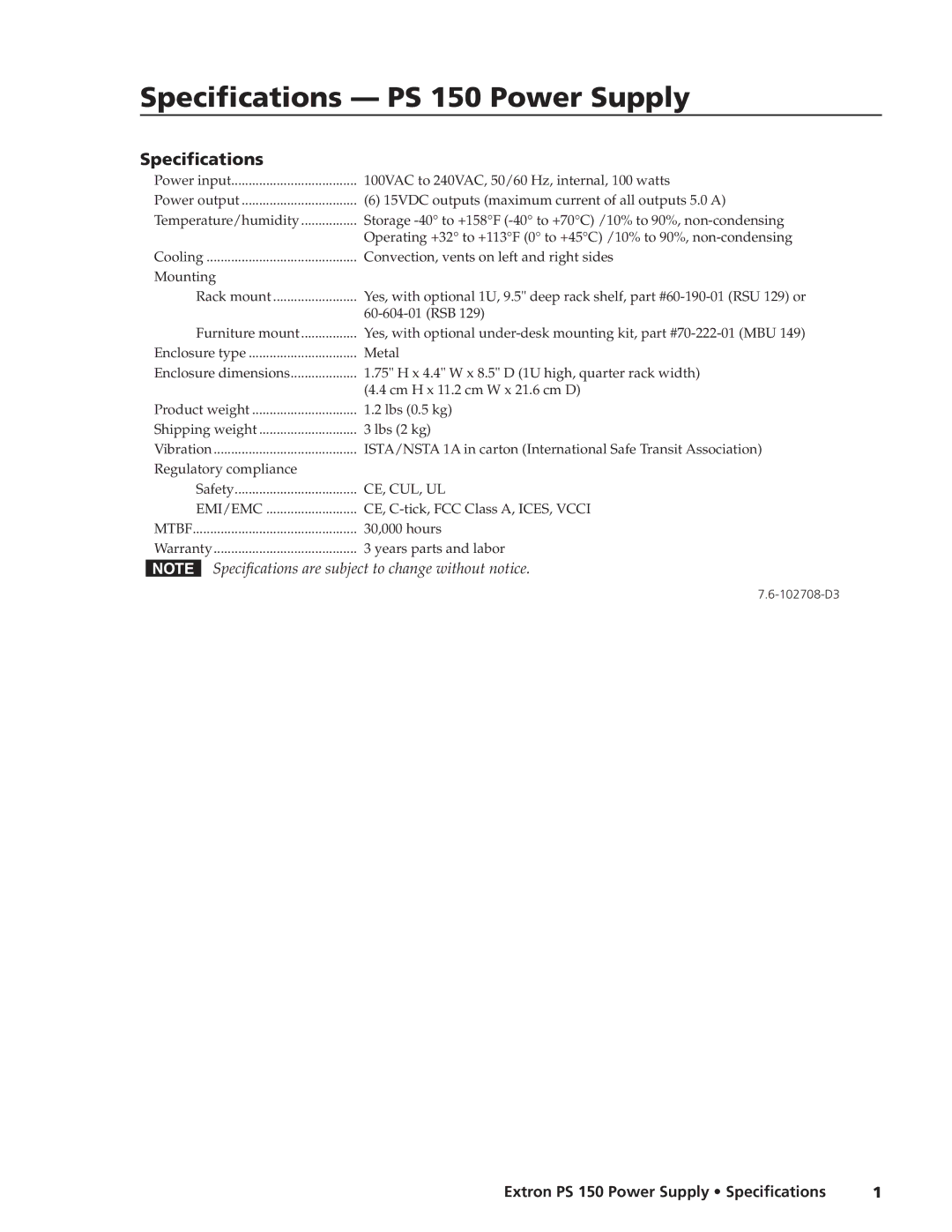

Specifications — PS 150 Power Supply

Power input	100VAC to 240VAC, 50/60 Hz, internal, 100 watts
Power output	(6) 15VDC outputs (maximum current of all outputs 5.0 A)
Temperature/humidity	Storage -40° to +158°F (-40° to +70°C) /10% to 90%, non-condensing
	Operating +32° to +113°F (0° to +45°C) /10% to 90%, non-condensing
Cooling	Convection, vents on left and right sides
Mounting
Rack mount	Yes, with optional 1U, 9.5" deep rack shelf, part #60-190-01 (RSU 129) or
	60-604-01 (RSB 129)
Furniture mount	Yes, with optional under-desk mounting kit, part #70-222-01 (MBU 149)
Enclosure type	Metal
Enclosure dimensions	1.75" H x 4.4" W x 8.5" D (1U high, quarter rack width)
	(4.4 cm H x 11.2 cm W x 21.6 cm D)
Product weight	1.2 lbs (0.5 kg)
Shipping weight	3 lbs (2 kg)
Vibration	ISTA/NSTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, CUL, UL
EMI/EMC	CE, C-tick, FCC Class A, ICES, VCCI
MTBF	30,000 hours
Warranty	3 years parts and labor

NSpecifications are subject to change without notice.

7.6-102708-D3

Extron PS 150 Power Supply • Specifications
