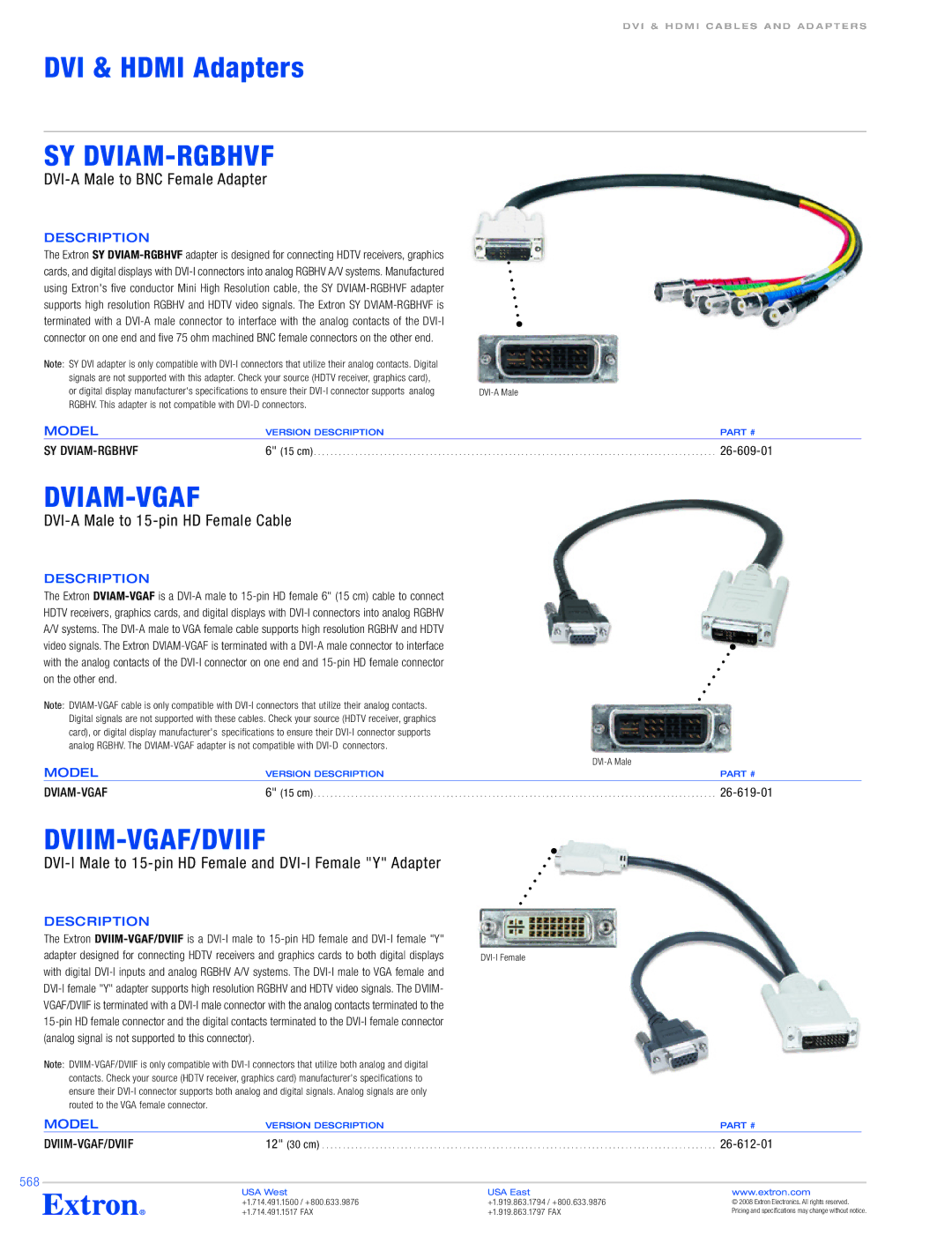

DVI & HDMI Cables and Adapters

DVI & HDMI Adapters

SY DVIAM-RGBHVF

DVI-A Male to BNC Female Adapter

DESCRIPTION

The Extron SY DVIAM-RGBHVF adapter is designed for connecting HDTV receivers, graphics cards, and digital displays with DVI-I connectors into analog RGBHV A/V systems. Manufactured using Extron's five conductor Mini High Resolution cable, the SY DVIAM-RGBHVF adapter supports high resolution RGBHV and HDTV video signals. The Extron SY DVIAM-RGBHVF is terminated with a DVI-A male connector to interface with the analog contacts of the DVI-I connector on one end and five 75 ohm machined BNC female connectors on the other end.

Note: SY DVI adapter is only compatible with DVI-I connectors that utilize their analog contacts. Digital



signals are not supported with this adapter. Check your source (HDTV receiver, graphics card),



or digital display manufacturer's specifications to ensure their DVI-I connector supports analog

DVI-A Male

RGBHV. This adapter is not compatible with DVI-D connectors.



Model

VERSION DESCRIPTION

PART #

SY DVIAM-RGBHVF

6" (15 cm)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-609-01

DVIAM-VGAF

DVI-A Male to 15-pin HD Female Cable

DESCRIPTION

The Extron DVIAM-VGAF is a DVI-A male to 15-pin HD female 6" (15 cm) cable to connect HDTV receivers, graphics cards, and digital displays with DVI-I connectors into analog RGBHV A/V systems. The DVI-A male to VGA female cable supports high resolution RGBHV and HDTV video signals. The Extron DVIAM-VGAF is terminated with a DVI-A male connector to interface with the analog contacts of the DVI-I connector on one end and 15-pin HD female connector on the other end.

Note: DVIAM-VGAF cable is only compatible with DVI-I connectors that utilize their analog contacts. Digital signals are not supported with these cables. Check your source (HDTV receiver, graphics card), or digital display manufacturer's specifications to ensure their DVI-I connector supports analog RGBHV. The DVIAM-VGAF adapter is not compatible with DVI-D connectors.

Model



DVI-A Male

VERSION DESCRIPTION

PART #

DVIAM-VGAF

6" (15 cm)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-619-01

DVIIM-VGAF/DVIIF

DVI-I Male to 15-pin HD Female and DVI-I Female "Y" Adapter

DESCRIPTION

The Extron DVIIM-VGAF/DVIIF is a DVI-I male to 15-pin HD female and DVI-I female "Y"

adapter designed for connecting HDTV receivers and graphics cards to both digital displays DVI-I Female with digital DVI-I inputs and analog RGBHV A/V systems. The DVI-I male to VGA female and

DVI-I female "Y" adapter supports high resolution RGBHV and HDTV video signals. The DVIIM- VGAF/DVIIF is terminated with a DVI-I male connector with the analog contacts terminated to the 15-pin HD female connector and the digital contacts terminated to the DVI-I female connector (analog signal is not supported to this connector).

Note: DVIIM-VGAF/DVIIF is only compatible with DVI-I connectors that utilize both analog and digital contacts. Check your source (HDTV receiver, graphics card) manufacturer's specifications to ensure their DVI-I connector supports both analog and digital signals. Analog signals are only routed to the VGA female connector.



Model

VERSION DESCRIPTION



PART #



DVIIM-VGAF/DVIIF

12" (30 cm)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26-612-01



568













USa West

USa East

www.extron.com









+1.714.491.1500 / +800.633.9876

+1.919.863.1794 / +800.633.9876

© 2008 Extron Electronics. All rights reserved.





+1.714.491.1517 FAX

+1.919.863.1797 FAX

Pricing and specifications may change without notice.
