Aufrüstsatz für DTC400 Kartendrucker/Kodierer - Kartenwender/E-Card-Fach-Modul

DTC400 Kartendrucker/Kodierer

Aufrüstsatz für Kartenwender/E-Card-Fach-Modul

Anleitung (Rev 1.0) zum

(Teilenummer L000920)

Einführung:

1

Diese Anleitung beschreibt das Einsetzen eines Kartenwender/ E-Card-Fach-Moduls in Ihren vorhandenen DTC400 Kartendrucker/ Kodierer. (Anforderungen: Auf dem DTC400 Kartendrucker/Kodierer muss die Firmware Version 2.0.2 (oder höher) und der Treiber Version 2.1.1 (oder höher) installiert sein, bevor dieses Upgrade vorgenommen werden kann. Informationen zur Aktualisierung der Druckerfirmware sowie der Treiber finden Sie im Benutzerhandbuch des Druckers.)

Aufrüstsatz umfasst:

Ein (1) DTC400 Kartenwender/E-Card

Fach-Modul

Schritt-für-Schritt-Benutzerhandbuch

Erforderliches Werkzeug:

Phillips-Schraubendreher Nr. 2

Ziehen Sie das Stromkabel und das USB-Kabel vom Drucker ab.

2

3

Verwenden Sie einen Phillips-Schraubendreher (Nr. 2), um die Schrauben an der hinteren Abdeckung des Druckers zu entfernen. Nehmen Sie die hintere Abdeckung ab. (Hinweis: Bewahren Sie die Schrauben für später auf.)

Halten Sie das Kartenausgabefach fest und ziehen Sie auf einer Seite, um den Stift aus seiner Befestigung zu ziehen. Ziehen Sie dann den anderen Stift heraus, um das Kartenausgabefach zu entfernen.

4

5

Verwenden Sie einen Phillips-Schraubendreher (Nr. 2), um die Befestigungsschrauben der Ausgabeabdeckung des Druckers zu entfernen. (Hinweis: Bewahren Sie diese Schrauben für später auf.)

Schwenken Sie das untere Ende der Ausgabeabdeckung nach außen, um die Abdeckung zu entfernen.

6

7

Verwenden Sie einen Phillips-Schraubendreher (Nr. 2), um die Abdeckung des Kartenwender/E-Card-Fach-Moduls zu entfernen. (Hinweis: Bewahren Sie diese Schrauben für später auf.)

Positionieren Sie das Kartenwender/E-Card-Fach-Modul neben dem Drucker.

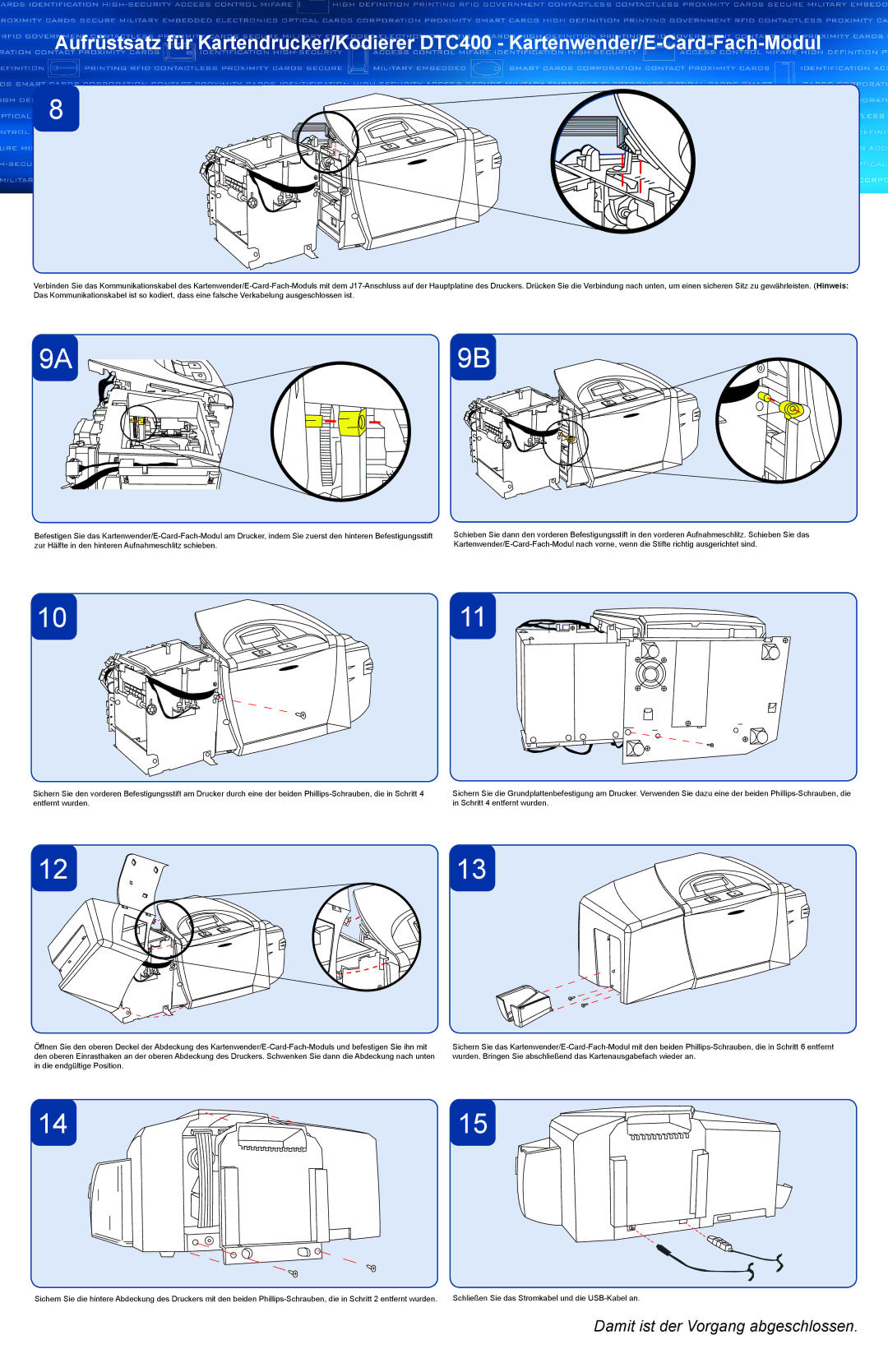

Fortsetzung nächste Seite

Page 1
