Features
•Kenaf-Cellgaia hybrid cone
•Reasonable Qts value for easy bass-reflex enclosure design
•Newly designed aluminum die- cast frame
•Ferrite magnet & repulsion type magnet shielded circuit
Specifications
&
Thiele/Small Parameters
Size | : | 160 | mm / | 6 in |
Voice Coil Diameter |
|
|
| |
| : | 35.5 mm / | 1.4 in | |
|
|
|
| |
Cast / Stamped | : | Cast |
| |
|
|
|
|
|
Impedance | : | 8 | Ω |
|
Reproduction Frequency Response :fs - 8 kHz
Sound Pressure Level
| : | 89 | dB/W(m) |
| |
Rated Input | : | 34 | W |
|
|
Music Power | : | 100W |
|
| |
|
|
|
|
| |
Magnet Material | : | Ferrite |
|
| |
Magnet Weight |
|
|
|
|
|
(main) | : | 440 | g / | 0.970 | lb |
(cancel) | : | 330 | g / | 0.728 | lb |
|
|
|
|
|
|
Net Weight |
| 2,659 | g / | 5.862 | lb |
|
|
|
|
|
|
| a : | 64 mm |
|
| |
Sd : | 0.0128 | m2 |
|
| |

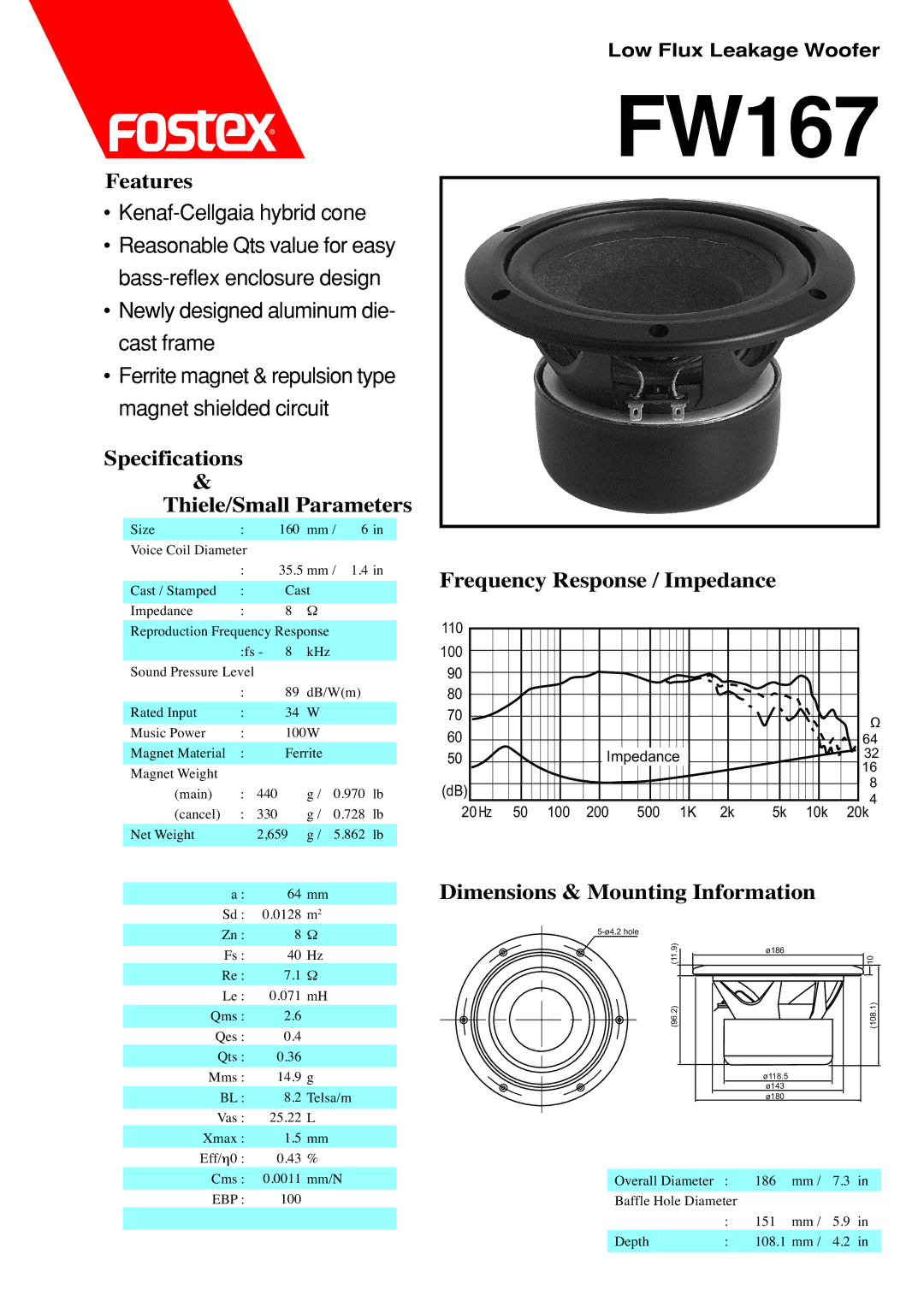

Low Flux Leakage Woofer
FW167
Frequency Response / Impedance
110 |
|
|
|
100 |
|
|
|
90 |
|
|
|
80 |
|
|
|
70 |
|
| Ω |
|
|
| |
60 |
|
| 64 |
50 | Impedance | 32 | |
|
|
| 16 |
(dB) |
|
| 8 |
|
| 4 | |
|
|
| |
| 20Hz | 50 100 200 | 500 1K 2k | 5k 10k 20k |
Dimensions & Mounting Information
Zn : | 8 | Ω |
Fs : | 40 | Hz |
Re : | 7.1 | Ω |
Le : | 0.071 mH | |
|
|
|
Qms : | 2.6 |
|
Qes : | 0.4 |
|
Qts : | 0.36 |
|
Mms : | 14.9 g | |
|
|
|
BL : | 8.2 | Telsa/m |
Vas : | 25.22 | L |
Xmax : | 1.5 mm | |
Eff/η0 : | 0.43 | % |
(96.2) (11.9)
ø186
ø118.5
ø143
ø180
(108.1) 10
Cms : | 0.0011 mm/N |
EBP : | 100 |
|
|
Overall Diameter | : | 186 | mm / | 7.3 | in |
Baffle Hole Diameter |
|
|
|
| |
| : | 151 | mm / | 5.9 | in |
Depth | : | 108.1 mm / | 4.2 | in | |
|
|
|
|
|
|
