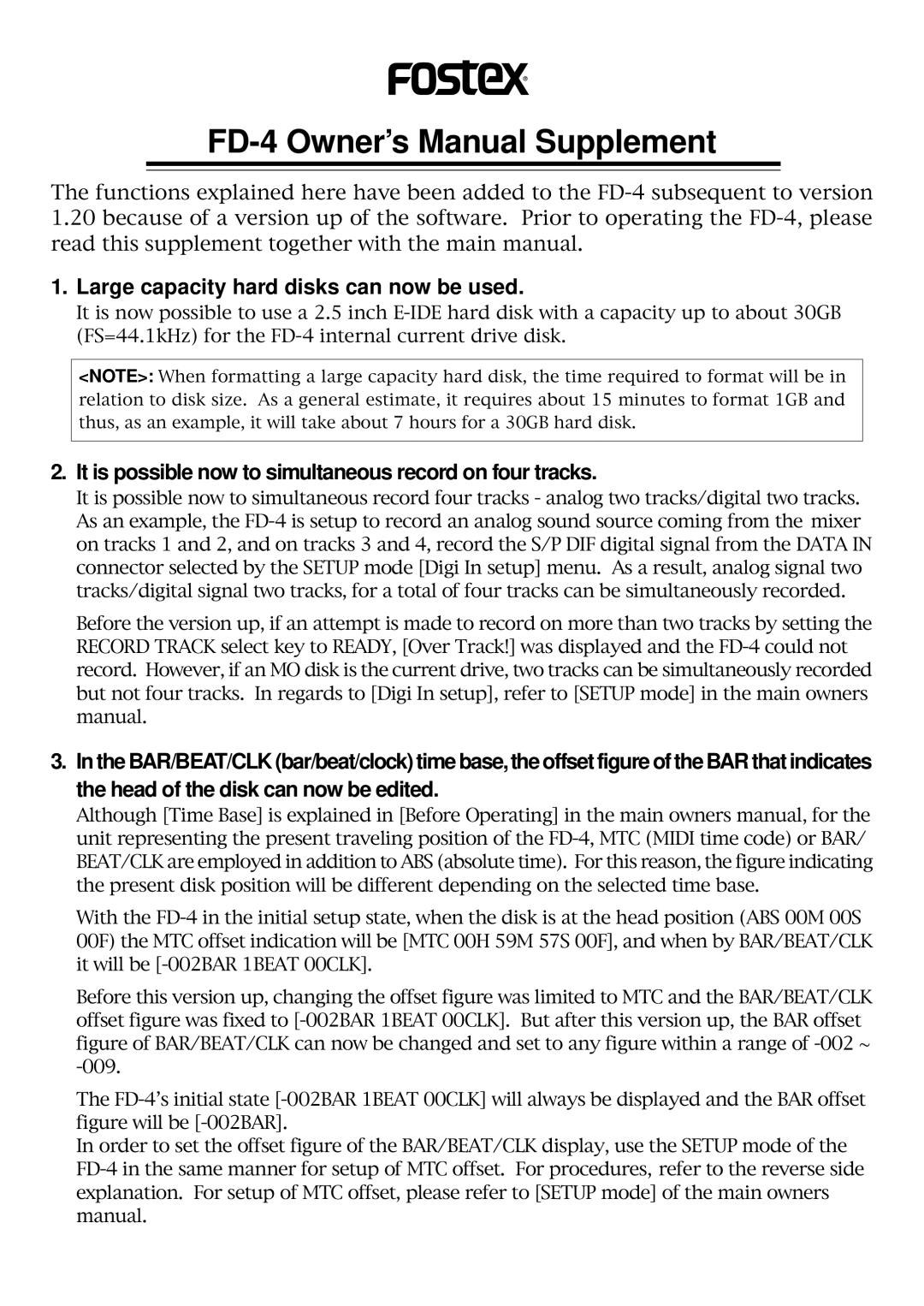

Setup procedures for BAR/BEAT/CLK offset

<NOTE>: Offset setups can be executed for each program. The setup content will be maintained even though power is switched off.

1.Preselect the program to which offset is to be setup.

The following example shows in the display that program 2 have been selected.





44.1kHz

ABS





M

S

F





PGM



SYNC OUT

DRIVE



CLK

SCSI



AUTO

A.PUNCH

2.Switch to the SETUP mode by pressing the SETUP key.

In the initial setup, the [Sign. Set?] menu will be displayed (If a different menu is displayed, rotate the JOG dial to display the [Sign. Set?] menu.).





44.1kHz

ABS





M

S

F





PGM



SYNC OUT

DRIVE



CLK

SCSI

SETUP

AUTO

A.PUNCH









44.1kHz



SETUP



SYNC OUT

DRIVE



CLK

SCSI



AUTO

A.PUNCH

Blink

3.Then press the EXECUTE/YES key.

The display will change to [Sign. Chk] and the presently set beat will be shown. In the initial setup, the display will show that the first bar is set to 4/4 beat.



Blink





SETUP

44.1kHz







SYNC OUT

DRIVE

EXECUTE

CLK

SCSI

AUTO

A.PUNCH

/ YES









44.1kHz



SETUP





BAR





SYNC OUT

DRIVE



CLK

SCSI



AUTO

A.PUNCH

4.Rotate the JOG dial counter-clockwise.

The offset figure of the presently set bar is displayed and in the initial setup, [-002BAR OFFSET] will be displayed as shown below.



44.1kHz

SETUP



BAR



SYNC OUT

DRIVE

CLK

SCSI

AUTO

A.PUNCH

SETUP

44.1kHz



BAR



SYNC OUT

DRIVE

CLK

SCSI

AUTO

A.PUNCH

5. Press the EXECUTE/YES key.

Simultaneous with entering [Sign. Edit] mode, [2] of -002BAR will blink and the BAR offset figure can then

be edited.

Blink







EXECUTE

SETUP

44.1kHz

/ YES



BAR





SYNC OUT

DRIVE



CLK

SCSI



AUTO

A.PUNCH

6.Enter the desired offset figure by rotating the JOG dial, and then press the EXECUTE/YES key.

Any offset figure in the range of 2~9 can be input (Example below show that [5] had been entered for the BAR figure.). When the EXECUTE/YES key is pressed after input of the above number, the offset figure thus input will be setup and the display will change to the [Sign. Set?] menu.



SETUP

44.1kHz







BAR





SYNC OUT

DRIVE



CLK

SCSI



AUTO

A.PUNCH

EXECUTE



44.1kHz

/ YES

SETUP





SYNC OUT

DRIVE



CLK

SCSI



AUTO

A.PUNCH

7.Exit from the SETUP mode by pressing the EXIT/NO key.

FOSTEX CORPORATION

3-2-35, Musashino, Akishima-shi, Tokyo 196-0021, Japan

FOSTEX CORPORATION OF AMERICA

15431, Blackburn Ave., Norwalk, CA 90650, U. S. A.

C PRINTED IN JAPAN AUG. 1999 8288 675 000 FX.
