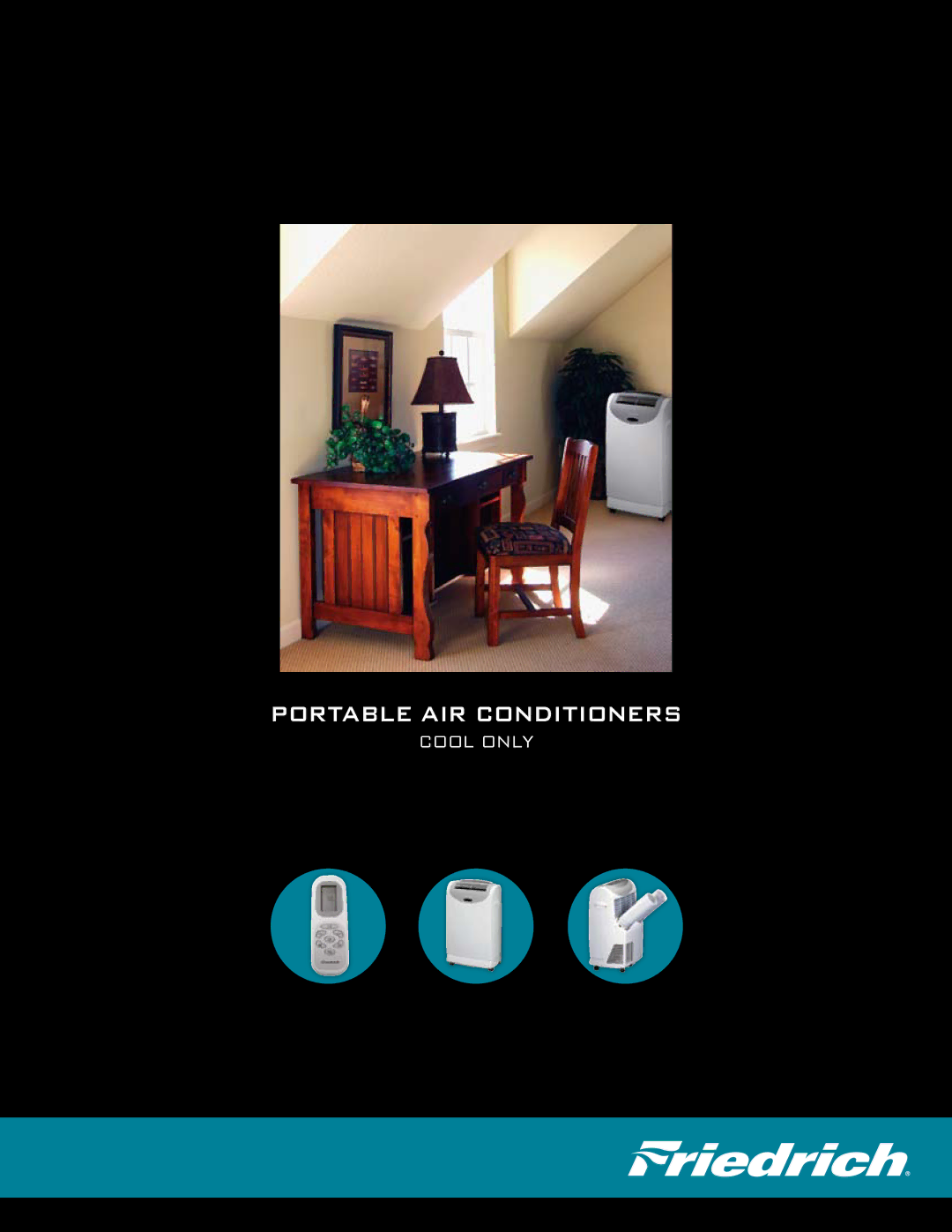

PORTABLE AIR CONDITIONERS

REMOTE 24-HOUR BUCKETLESS EZ-ROLL

CONTROL TIMER DESIGN CASTERS

Features

40% FASTER COOLING with dual hose exhaust

Remote control operation

Self evaporative condensate system

24 hour timer

3 fan speeds

Plugs into standard 115 volt outlet

Cool/fan only/dehumidify

Exhaust hoses and window kit included

Ideal for these applications

Workshops and garages

Home offices

Dorm rooms

Bedrooms, attics and basements

Sunrooms/ enclosed patios

Supplemental or emergency cooling anywhere

Specifications

Model





P09A



P12A

PERFORMANCE













Cooling Capacity

BTU/h

8900







11500

Energy Efficiency Rating

EER

9.6







8.9

SPECIFICATIONS













Rated Current

Amps

9.8







12.0

Refrigerant Type







R-22



Power Supply

Volts

115







W

19 1/4



Dimensions- Inches

H

33 1/2







D

15 1/2



Net Weight



Lbs.

80







86

















Circuit Rating

Plug Face

Wall Outlet



Model Number

Breaker or T-D Fuse

(NEMA#)

Appearance



P09A, P12A

125V - 15A

5 - 15P















































Bucketless design

Self evaporative condensate system means no bucket to empty. If tank should become full, the unit will automatically shut off and unit can be drained through the water outlet drain.

Portable Accessories

DUAL INTAKE/ EXHAUST HOSES (Included)

Flexible, heavy duty intake/ exhaust hoses extend from 24” to 60”. The hoses can be vented through a window or through a wall opening to the outside.

NOTE: Venting of the unit to the outside is required for operating efficiency.

WINDOW SLIDER KIT (Included)

Fits HORIZONTAL or VERTICAL WINDOWS WINDOW OPENING:

Minimum: 26"* Maximum: 46"

* Window slider kit can be trimmed to fit a smaller opening.

Friedrich Air Conditioning Co. P.O. Box 1540 San Antonio, TX 78295-1540 (800) 541-6645 fax (210) 357-4480 www.friedrich.com

PAC-08

Printed in USA
