Model PXSBXXXXX

PXSB230/20/30 or PXSB26515/20/30

Installation Instructions

Electrical Sub-base Assembly

For Use with PTAC and PTHP Models

Please read these instructions completely before attempting installation.

NOTE: These instructions apply to the installation of the Electrical Sub-base assembly.

Contents:

1.Sub-base Assembly

2.Side brackets, adjustable

3.Wire nuts (x 3)

4.#10 screws (x 4)

5.Installation instructions

NOTE: All electrical work must conform to local codes and ordinances, the national electrical code, ANSI/NFPA NO. 70-1993 or current edition, and in Canada, the Canadian electrical code PART I, CSA STANDARD C22.1-1993 or current edition.

Step 1. Disconnect ALL power to unit.

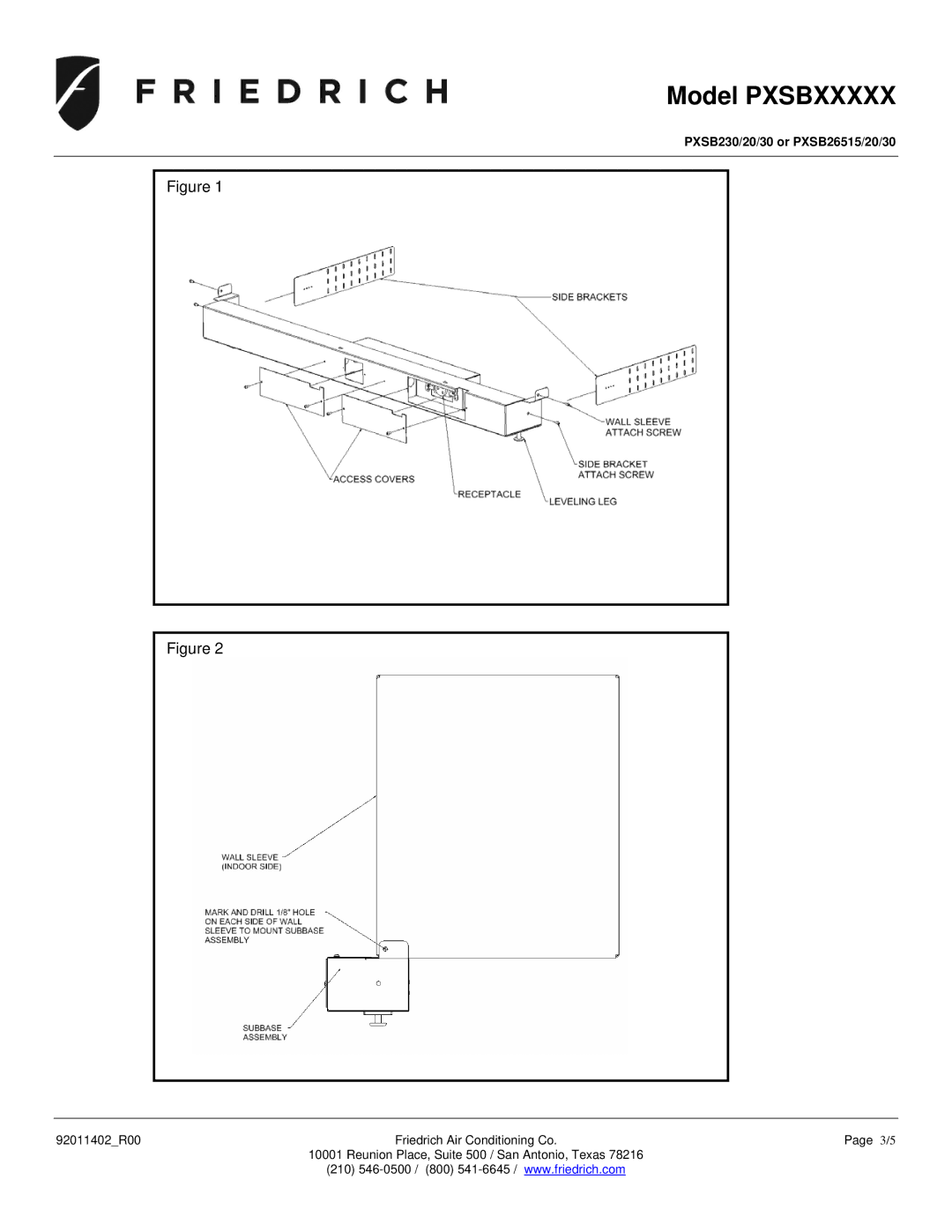

Step 2. Using Sub-base as a guide, mark the location for the mounting holes (See Figure 2). Drill a 1/8” hole on each side of the Wall Sleeve.

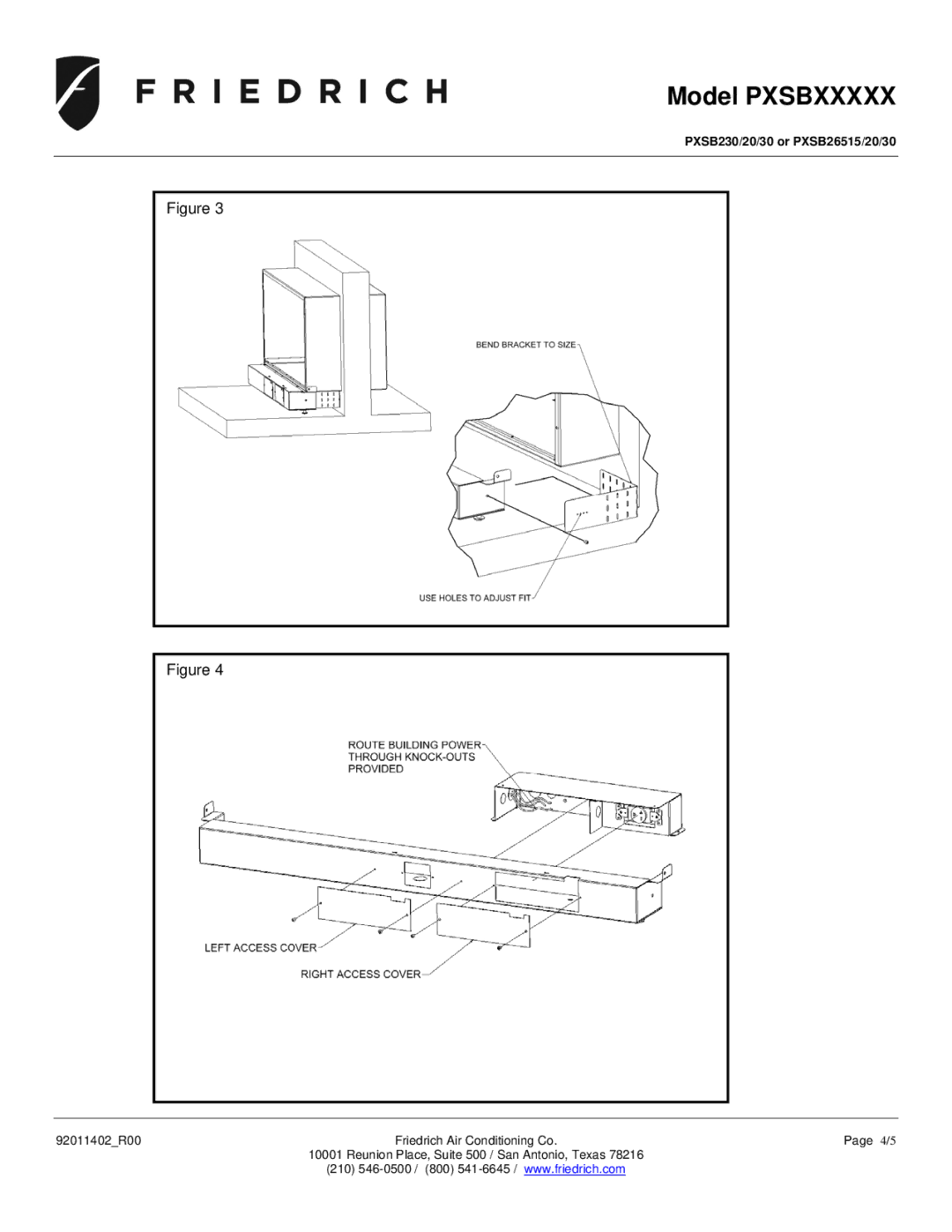

Step 3. Side brackets can be attached to the sub-base to cover the open space between the wall and sub-base. Bend the bracket to size. Slip the bracket inside the sub-base and use the adjustable mounting hole to adjust fit against the wall. See Figure 3.

92011402_R00Friedrich Air Conditioning Co.Page 1/5

10001 Reunion Place, Suite 500 / San Antonio, Texas 78216

(210) 546-0500 / (800) 541-6645 / www.friedrich.com

Page 1
