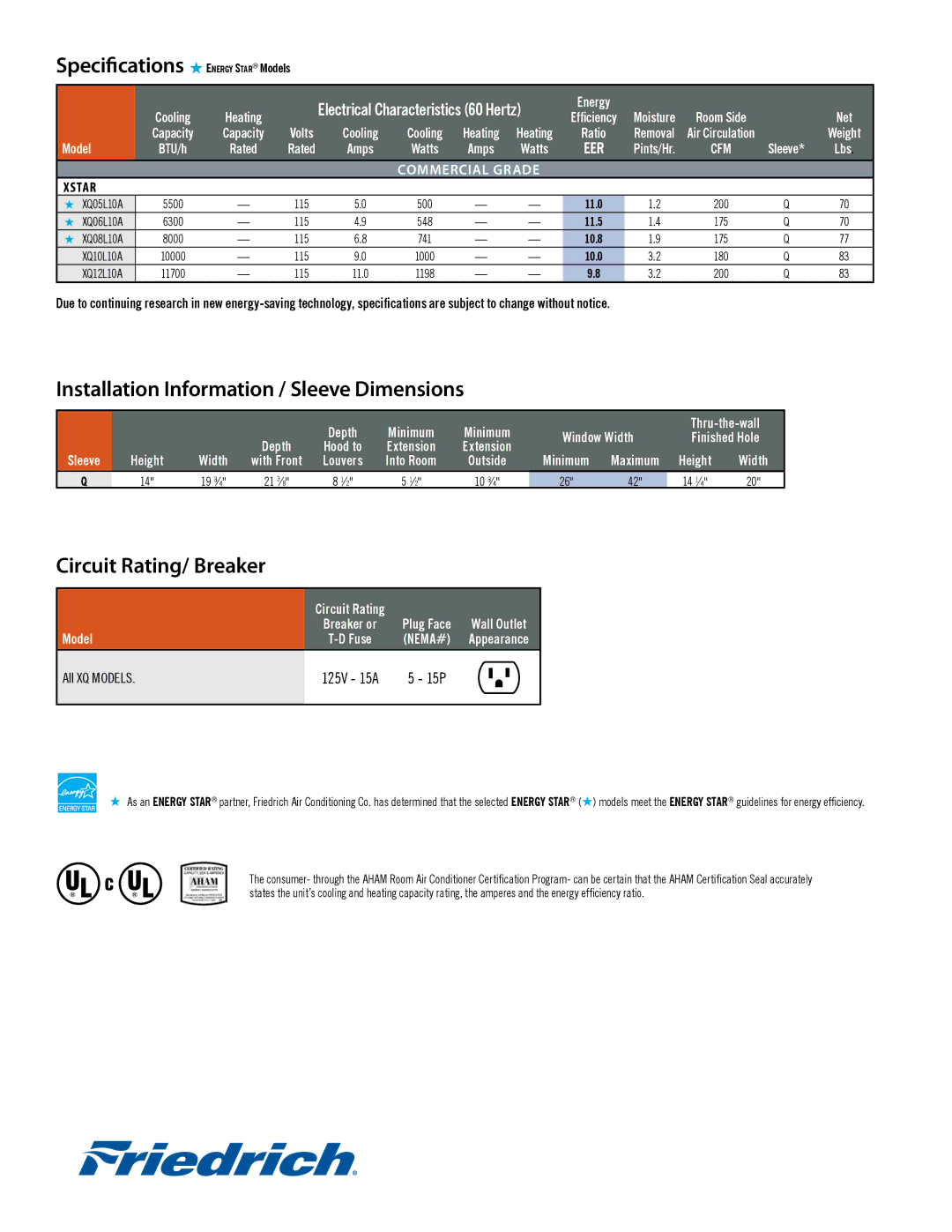

Specifications ENERGY STAR® Models
|
|
|
| Electrical Characteristics (60 Hertz) | Energy |
|
|
|
| |||
| Cooling | Heating |
| Efficiency | Moisture | Room Side |
| Net | ||||
|
|
|
|
|
|
| ||||||
| Capacity | Capacity | Volts | Cooling | Cooling | Heating | Heating | Ratio | Removal | Air Circulation |
| Weight |
Model | BTU/h | Rated | Rated | Amps | Watts | Amps | Watts | EER | Pints/Hr. | CFM | Sleeve* | Lbs. |
|
|
|
|
| COMMERCIAL GRADE |
|
|
|
|
| ||
XSTAR |
|
|
|
|
|
|
|
|
|
|
|
|
XQ05L10A | 5500 | — | 115 | 5.0 | 500 | — | — | 11.0 | 1.2 | 200 | Q | 70 |
XQ06L10A | 6300 | — | 115 | 4.9 | 548 | — | — | 11.5 | 1.4 | 175 | Q | 70 |
XQ08L10A | 8000 | — | 115 | 6.8 | 741 | — | — | 10.8 | 1.9 | 175 | Q | 77 |
XQ10L10A | 10000 | — | 115 | 9.0 | 1000 | — | — | 10.0 | 3.2 | 180 | Q | 83 |
XQ12L10A | 11700 | — | 115 | 11.0 | 1198 | — | — | 9.8 | 3.2 | 200 | Q | 83 |
Due to continuing research in new
Installation Information / Sleeve Dimensions
|
|
|
| Depth | Minimum | Minimum |
|
| ||
|
|
|
| Window Width | Finished Hole | |||||
|
|
| Depth | Hood to | Extension | Extension | ||||
|
|
|
|
|
|
| ||||
Sleeve | Height | Width | with Front | Louvers | Into Room | Outside | Minimum | Maximum | Height | Width |
Q | 14" | 19 ¾" | 21 3∕8" | 8 ½" | 5 ½" | 10 ¾" | 26" | 42" | 14 ¼" | 20" |
Circuit Rating/ Breaker
| Circuit Rating |
|
|
|
|
| Breaker or | Plug Face | Wall Outlet | ||
Model | (NEMA#) | Appearance | |||
All XQ MODELS. | 125V - 15A | 5 - 15P |
|
|
|
|
|
| |||
|
|
| |||
|
|
|
|
|
|
As an ENERGY STAR® partner, Friedrich Air Conditioning Co. has determined that the selected ENERGY STAR® () models meet the ENERGY STAR® guidelines for energy efficiency.
The consumer- through the AHAM Room Air Conditioner Certification Program- can be certain that the AHAM Certification Seal accurately states the unit’s cooling and heating capacity rating, the amperes and the energy efficiency ratio.
