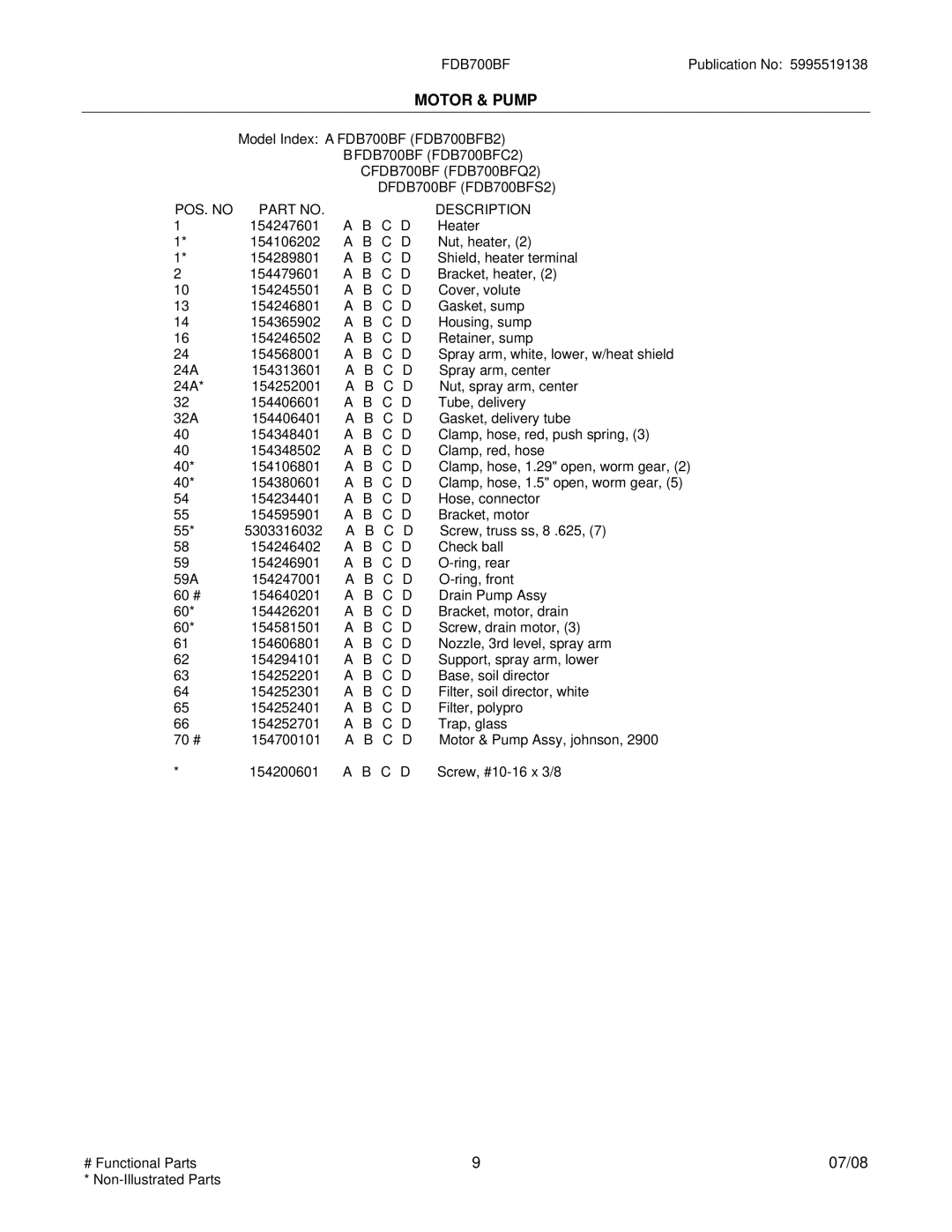

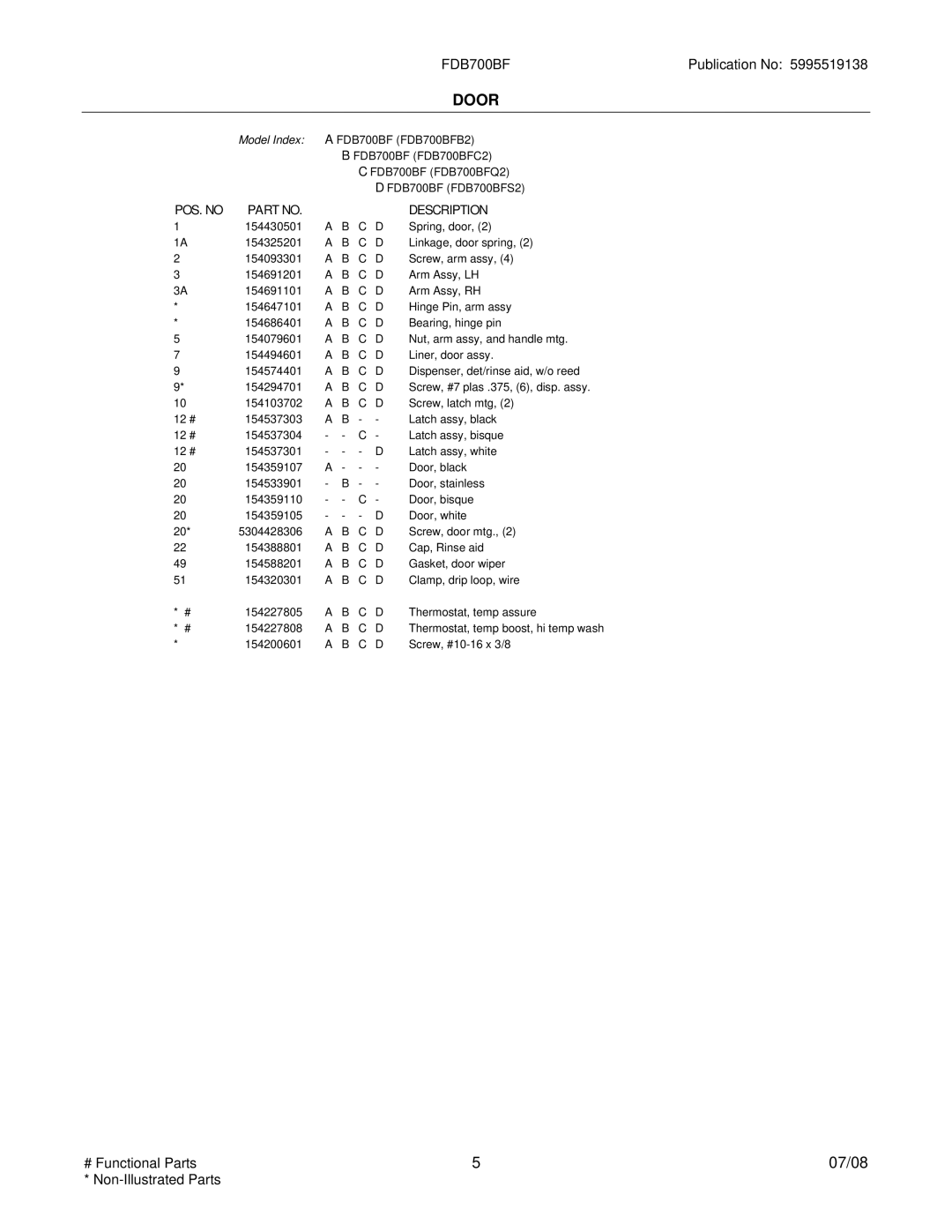

FDB700BF Publication No: 5995519138

MOTOR & PUMP

Model Index: A FDB700BF (FDB700BFB2)

B FDB700BF (FDB700BFC2)

C FDB700BF (FDB700BFQ2)

					D FDB700BF (FDB700BFS2)
POS. NO	PART NO.					DESCRIPTION
1	154247601	A	B	C	D	Heater
1*	154106202	A	B	C	D	Nut, heater, (2)
1*	154289801	A	B	C	D	Shield, heater terminal
2	154479601	A	B	C	D	Bracket, heater, (2)
10	154245501	A	B	C	D	Cover, volute
13	154246801	A	B	C	D	Gasket, sump
14	154365902	A	B	C	D	Housing, sump
16	154246502	A	B	C	D	Retainer, sump
24	154568001	A	B	C	D	Spray arm, white, lower, w/heat shield
24A	154313601	A	B	C	D	Spray arm, center
24A*	154252001	A	B	C	D	Nut, spray arm, center
32	154406601	A	B	C	D	Tube, delivery
32A	154406401	A	B	C	D	Gasket, delivery tube
40	154348401	A	B	C	D	Clamp, hose, red, push spring, (3)
40	154348502	A	B	C	D	Clamp, red, hose
40*	154106801	A	B	C	D	Clamp, hose, 1.29" open, worm gear, (2)
40*	154380601	A	B	C	D	Clamp, hose, 1.5" open, worm gear, (5)
54	154234401	A	B	C	D	Hose, connector
55	154595901	A	B	C	D	Bracket, motor
55*	5303316032	A	B	C	D	Screw, truss ss, 8 .625, (7)
58	154246402	A	B	C	D	Check ball
59	154246901	A	B	C	D	O-ring, rear
59A	154247001	A	B	C	D	O-ring, front
60 #	154640201	A	B	C	D	Drain Pump Assy
60*	154426201	A	B	C	D	Bracket, motor, drain
60*	154581501	A	B	C	D	Screw, drain motor, (3)
61	154606801	A	B	C	D	Nozzle, 3rd level, spray arm
62	154294101	A	B	C	D	Support, spray arm, lower
63	154252201	A	B	C	D	Base, soil director
64	154252301	A	B	C	D	Filter, soil director, white
65	154252401	A	B	C	D	Filter, polypro
66	154252701	A	B	C	D	Trap, glass
70 #	154700101	A	B	C	D	Motor & Pump Assy, johnson, 2900
*	154200601	A	B	C	D	Screw, #10-16 x 3/8

# Functional Parts	9	07/08
* Non-Illustrated Parts
