Frigidaire FGDS3065K F, FGDS3065K B Slide-In Range Specifications, Countertop Preparation

Slide-In Ranges

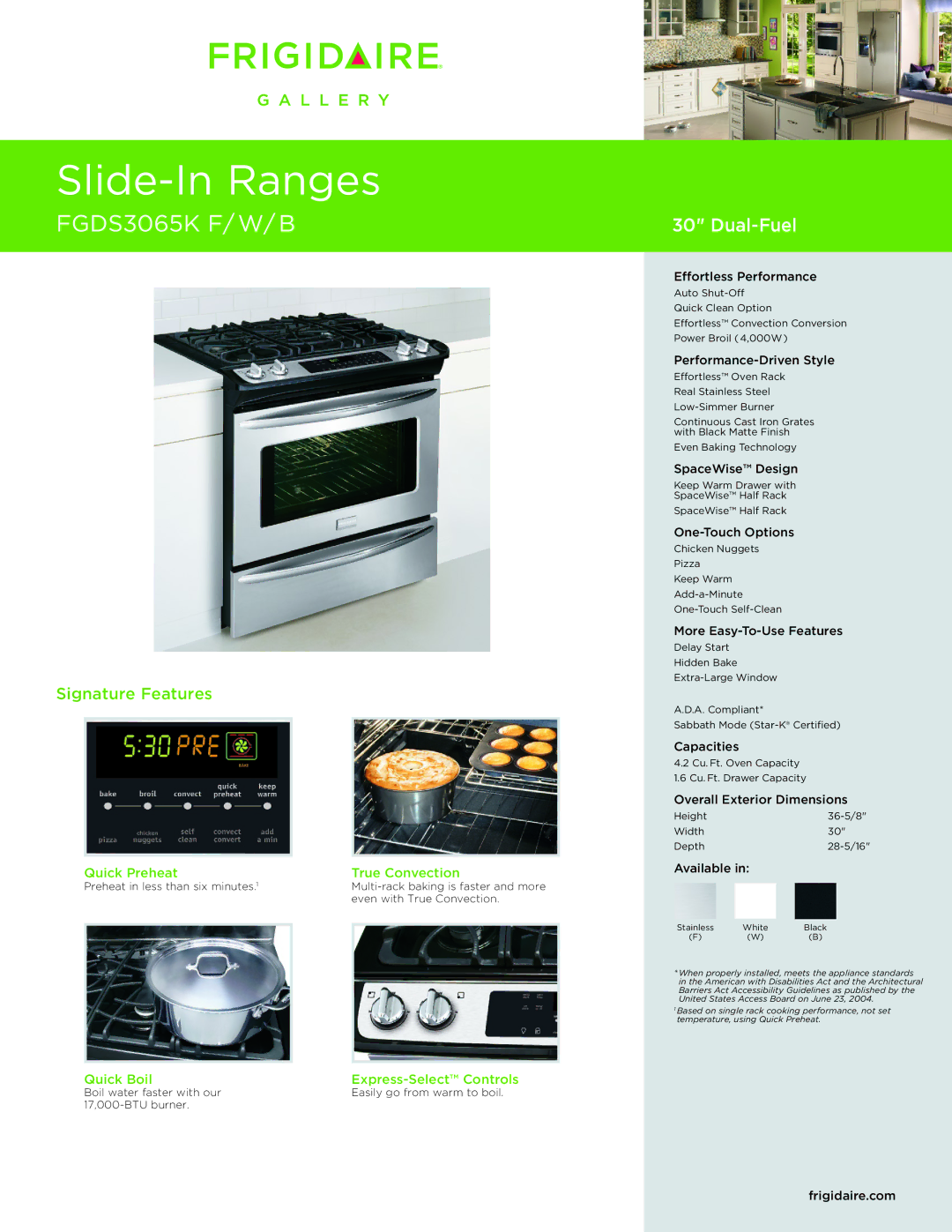

FGDS3065K F/ W/ B 30" Dual-Fuel

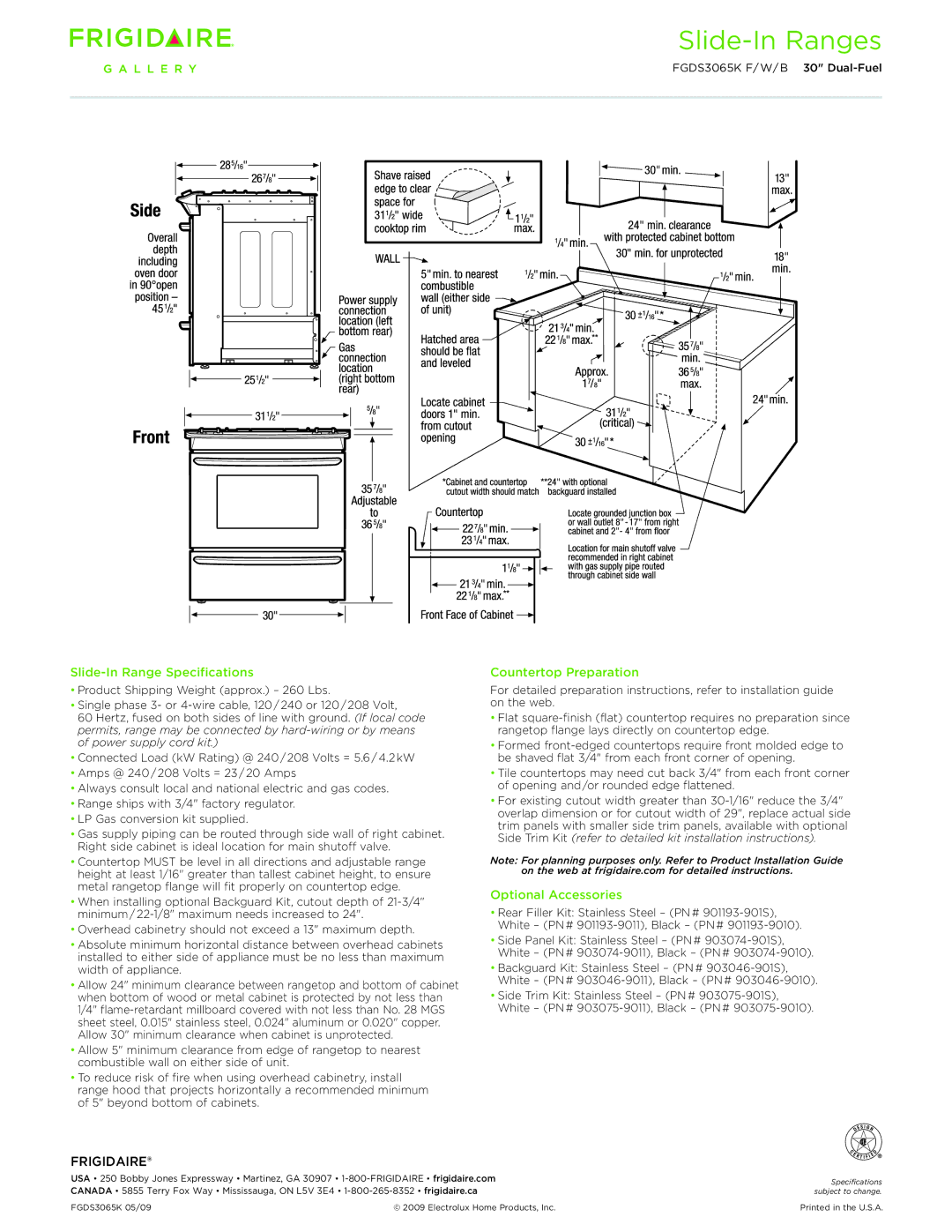

Slide-In Range Specifications

•Product Shipping Weight (approx.) – 260 Lbs.

•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,

60 Hertz, fused on both sides of line with ground. (If local code permits, range may be connected by hard-wiring or by means of power supply cord kit.)

•Connected Load (kW Rating) @ 240 / 208 Volts = 5.6 / 4.2 kW

•Amps @ 240 / 208 Volts = 23 / 20 Amps

•Always consult local and national electric and gas codes.

•Range ships with 3/4" factory regulator.

•LP Gas conversion kit supplied.

•Gas supply piping can be routed through side wall of right cabinet. Right side cabinet is ideal location for main shutoff valve.

Countertop Preparation

For detailed preparation instructions, refer to installation guide on the web.

•Flat square-finish (flat) countertop requires no preparation since rangetop flange lays directly on countertop edge.

•Formed front-edged countertops require front molded edge to be shaved flat 3/4" from each front corner of opening.

•Tile countertops may need cut back 3/4" from each front corner of opening and /or rounded edge flattened.

•For existing cutout width greater than 30-1/16" reduce the 3/4" overlap dimension or for cutout width of 29", replace actual side trim panels with smaller side trim panels, available with optional Side Trim Kit (refer to detailed kit installation instructions).

•Countertop MUST be level in all directions and adjustable range height at least 1/16" greater than tallest cabinet height, to ensure metal rangetop flange will fit properly on countertop edge.

•When installing optional Backguard Kit, cutout depth of 21-3/4" minimum / 22-1/8" maximum needs increased to 24".

•Overhead cabinetry should not exceed a 13" maximum depth.

•Absolute minimum horizontal distance between overhead cabinets installed to either side of appliance must be no less than maximum width of appliance.

•Allow 24" minimum clearance between rangetop and bottom of cabinet when bottom of wood or metal cabinet is protected by not less than 1/4" flame-retardant millboard covered with not less than No. 28 MGS sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper. Allow 30" minimum clearance when cabinet is unprotected.

•Allow 5" minimum clearance from edge of rangetop to nearest combustible wall on either side of unit.

•To reduce risk of fire when using overhead cabinetry, install range hood that projects horizontally a recommended minimum of 5" beyond bottom of cabinets.

FRIGIDAIRE®

Note: For planning purposes only. Refer to Product Installation Guide on the web at frigidaire.com for detailed instructions.

Optional Accessories

•Rear Filler Kit: Stainless Steel – (PN # 901193-901S), White – (PN # 901193-9011), Black – (PN # 901193-9010).

•Side Panel Kit: Stainless Steel – (PN # 903074-901S), White – (PN # 903074-9011), Black – (PN # 903074-9010).

•Backguard Kit: Stainless Steel – (PN # 903046-901S), White – (PN # 903046-9011), Black – (PN # 903046-9010).

•Side Trim Kit: Stainless Steel – (PN # 903075-901S), White – (PN # 903075-9011), Black – (PN # 903075-9010).

USA • 250 Bobby Jones Expressway • Martinez, GA 30907 • 1-800-FRIGIDAIRE • frigidaire.com	Specifications
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca	subject to change.

FGDS3065K 05/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
