Side-by-Side Refrigerators

FGHS2369K P / E 23 Cu. Ft. Standard-Depth

Side-by-Side Refrigerator Specifications

Product Shipping Weight (approx.) – 285 Lbs.

Voltage Rating – 120V / 60 Hz / 15 or 20 Amps

Connected Load (kW Rating) @ 120 Volts = 1.02 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.)

Amps @ 120 Volts = 8.5 Amps

Always consult local and national electric & plumbing codes.

Floor should be level surface of hard material, capable of supporting fully loaded refrigerator.

When installing refrigerator adjacent to wall, cabinet or other appliance that extends beyond front edge of unit, 20" minimum clearance recommended to allow for optimum 120° to 180° door swing, providing complete drawer / crisper access and removal. (Absolute 4-1/2" minimum clearance will ONLY allow for 90° door swing which will provide drawer / crisper access with restricted removal.)

To ensure optimum performance, avoid installing in direct sunlight or close proximity to range, dishwasher or other heat source.

For proper ventilation, front grille MUST remain unobstructed.

Recess electrical outlet when possible.

Water recess on rear wall recommended to prevent water line damage.

Water Pressure – Cold water line must provide between 30 and 100 pounds per square inch (psi).

Copper tubing with 1/4" O.D. recommended for water supply line with length equal to distance from rear of unit to household water supply line plus 7 additional feet. Optional Water Supply Installation Kits available.

Adjustable front rollers to assist with door alignment.

“Built-In Look” Specifications

Minimum opening of 70-1/4" H x 33" W x 28-7/8" D required to allow for ease of installation, proper air circulation, and plumbing / electrical connections.

Remove all wall / floor molding prior to installation.

Note: For planning purposes only. Refer to Product Installation Guide on the web at frigidaire.com for detailed instructions.

FRIGIDAIRE®

USA 250 Bobby Jones Expressway Martinez, GA 30907

1-800-FRIGIDAIRE frigidaire.com

Specifications

CANADA 5855 Terry Fox Way Mississauga, ON L5V 3E4

1-800-265-8352 frigidaire.ca

subject to change.

FGHS2369K 06/09

© 2009 Electrolux Home Products, Inc.

Printed in the U.S.A.

Page 2
Image 2

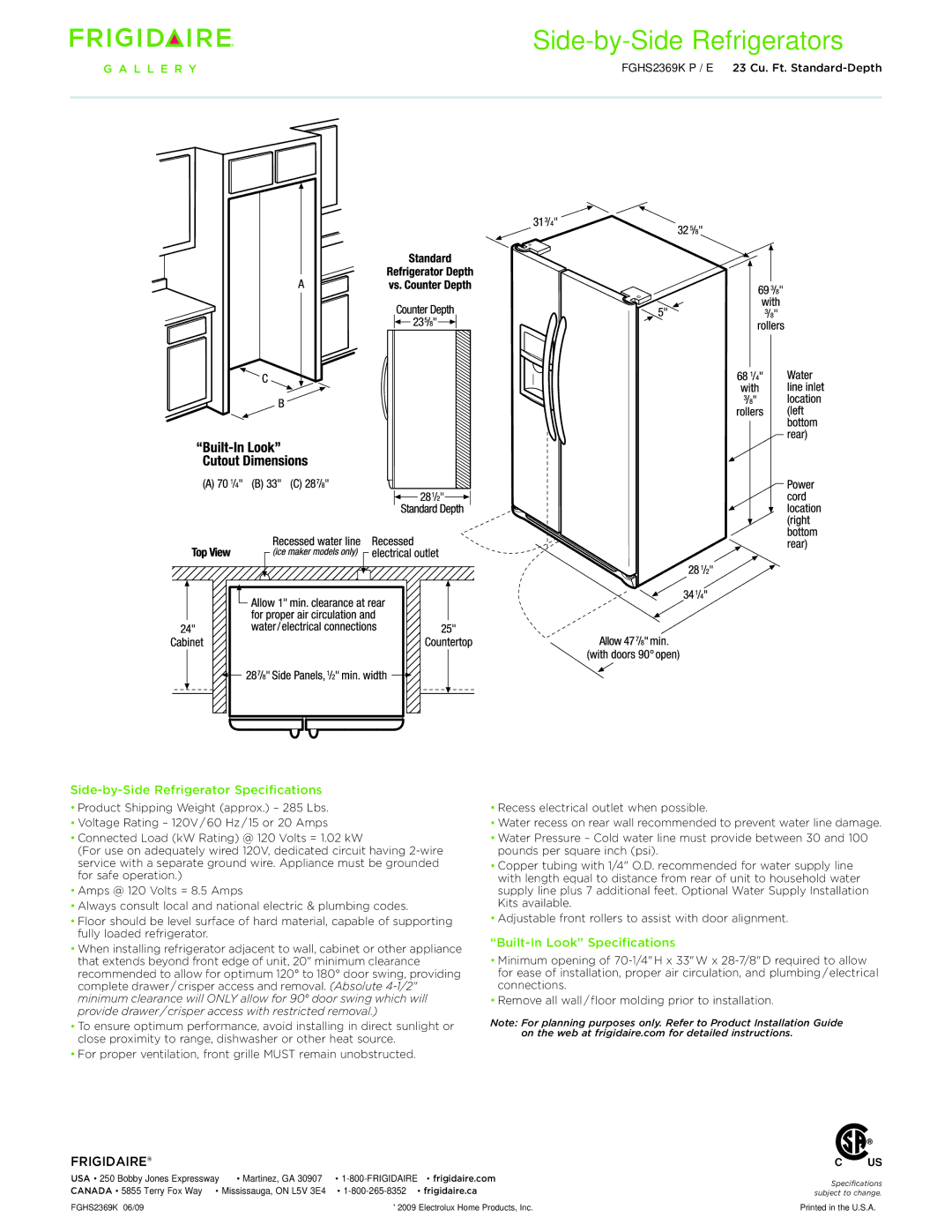

Frigidaire FGHS2369K P/E dimensions Side-by-Side Refrigerator Specifications, Built-In Look Specifications

FGHS2369K P/E specifications

The Frigidaire FGHS2369K P/E is a versatile and stylish refrigerator that combines modern technology with convenience, making it an ideal choice for any household. With a generous capacity of 21.5 cubic feet, this French door refrigerator offers ample space for storing groceries and food items, ensuring everything is easily accessible.

One of the standout features of the FGHS2369K P/E is its energy efficiency. This model is ENERGY STAR certified, which means it meets strict energy efficiency guidelines set by the U.S. Environmental Protection Agency. This feature not only helps reduce electricity bills but also minimizes the environmental impact, making it an eco-friendly choice for consumers.

The refrigerator comes equipped with advanced cooling technologies, including a PureFresh air filter that helps eliminate odors, ensuring your food stays fresh for longer. Additionally, the automatic defrost feature simplifies maintenance by preventing the buildup of frost in the freezer, allowing for hassle-free access to frozen goods.

In terms of organization, the FGHS2369K P/E boasts adjustable shelving that allows users to customize their space according to their storage needs. The shelving is designed with spill-proof glass, making it easy to clean and preventing spills from affecting the entire unit. The spacious freezer section features sliding bins that provide easy access to frozen items, while the dedicated ice maker ensures you always have ice at your fingertips.

Another notable aspect of the Frigidaire FGHS2369K P/E is its external water and ice dispenser. This feature provides on-demand access to chilled filtered water and ice without needing to open the refrigerator door, helping to maintain a consistent interior temperature and improve energy efficiency.

The design of the FGHS2369K P/E also doesn’t go unnoticed. Its sleek stainless steel finish gives it a modern look, enhancing any kitchen decor. The door handles are ergonomically designed for comfort and style, while the hidden hinges contribute to a seamless appearance.

In summary, the Frigidaire FGHS2369K P/E brings together functionality, style, and cutting-edge technology. With its spacious design, energy-efficient features, and thoughtful organizational elements, it is well-suited to modern lifestyles, making it a popular choice for families and individuals alike. Whether you're stocking up on groceries or entertaining guests, this refrigerator is designed to meet diverse culinary needs while maintaining a chic aesthetic.
