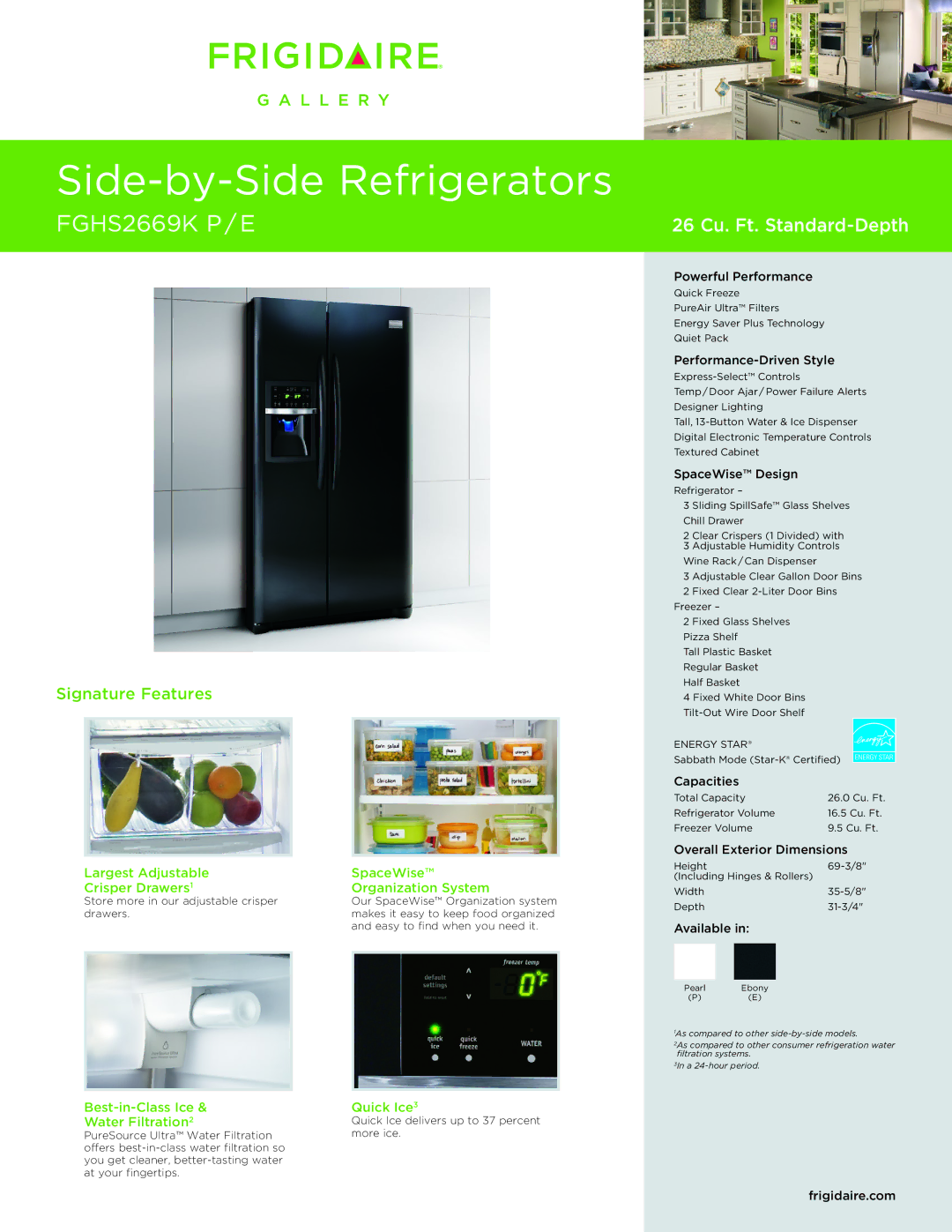

Side-by-Side Refrigerators

FGHS2669K P / E 26 Cu. Ft. Standard-Depth

Side-by-Side Refrigerator Specifications

Product Shipping Weight (approx.) – 300 Lbs.

Voltage Rating – 120V / 60 Hz / 15 or 20 Amps

Connected Load (kW Rating) @ 120 Volts = 1.02 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.)

Amps @ 120 Volts = 8.5 Amps

Always consult local and national electric & plumbing codes.

Floor should be level surface of hard material, capable of supporting fully loaded refrigerator.

When installing refrigerator adjacent to wall, cabinet or other appliance that extends beyond front edge of unit, 20" minimum clearance recommended to allow for optimum 120° to 180° door swing, providing complete drawer / crisper access and removal. (Absolute 4-1/2" minimum clearance will ONLY allow for 90° door swing which will provide drawer / crisper access with restricted removal.)

To ensure optimum performance, avoid installing in direct sunlight or close proximity to range, dishwasher or other heat source.

For proper ventilation, front grille MUST remain unobstructed.

Recess electrical outlet when possible.

Water recess on rear wall recommended to prevent water line damage.

Water Pressure – Cold water line must provide between 30 and 100 pounds per square inch (psi).

Copper tubing with 1/4" O.D. recommended for water supply line with length equal to distance from rear of unit to household water supply line plus 7 additional feet. Optional Water Supply Installation Kits available.

Adjustable front rollers to assist with door alignment.

“Built-In Look” Specifications

Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow for ease of installation, proper air circulation, and plumbing / electrical connections.

Remove all wall / floor molding prior to installation.

Note: For planning purposes only. Refer to Product Installation Guide on the web at frigidaire.com for detailed instructions.

FRIGIDAIRE®

USA 250 Bobby Jones Expressway Martinez, GA 30907

1-800-FRIGIDAIRE frigidaire.com

Specifications

CANADA 5855 Terry Fox Way Mississauga, ON L5V 3E4

1-800-265-8352 frigidaire.ca

subject to change.

FGHS2669K 06/09

© 2009 Electrolux Home Products, Inc.

Printed in the U.S.A.

Page 2
Image 2
Frigidaire FGHS2669K P/E dimensions Side-by-Side Refrigerator Specifications, Built-In Look Specifications

FGHS2669K P/E specifications

The Frigidaire FGHS2669K P/E is a versatile and modern refrigerator designed to meet the demands of today's households. Combining ample space, innovative technology, and energy efficiency, this model stands out in the competitive home appliance market.

One of the primary features of the FGHS2669K P/E is its spacious interior. With a total capacity of 26.6 cubic feet, it offers plenty of room for all your groceries, beverages, and frozen goods. The 70/30 split of refrigerator and freezer space ensures that you have easy access to frequently used items while maximizing storage efficiency.

The refrigerator section is equipped with adjustable shelving, making it easy to customize the layout based on your preferences and needs. The Glass2Go shelf is a unique addition, which helps to keep the space organized while providing quick access to frequently used items. Additionally, the spacious crisper drawers allow for optimal storage of fruits and vegetables, helping to maintain freshness.

In terms of technology, the FGHS2669K P/E features an advanced cooling system that ensures consistent temperatures throughout the fridge and freezer compartments. The built-in PureSource Ultra water filtration system provides filtered water and ice at your fingertips, ensuring that you always have clean and great-tasting water available. The Ice Maker included in the freezer section offers the convenience of freshly made ice without the need for manual filling or trays.

Energy efficiency is another hallmark of the Frigidaire FGHS2669K P/E. It is ENERGY STAR certified, ensuring that it operates with minimal energy consumption, thus reducing your energy bills and environmental impact. The unit also includes LED interior lighting, which not only provides better visibility but also consumes less energy compared to traditional lighting options.

The design of the FGHS2669K P/E is both sleek and contemporary, featuring a stainless steel finish that adds a modern touch to any kitchen. The external water and ice dispenser is both convenient and stylish, accommodating a variety of beverage containers.

In summary, the Frigidaire FGHS2669K P/E is a well-rounded refrigerator that brings together functionality, efficiency, and style. With its spacious interior, innovative technologies, and energy-saving features, it is an excellent choice for families and anyone looking to enhance their kitchen experience. Whether stocking up on groceries or entertaining guests, this refrigerator meets diverse needs with ease.
