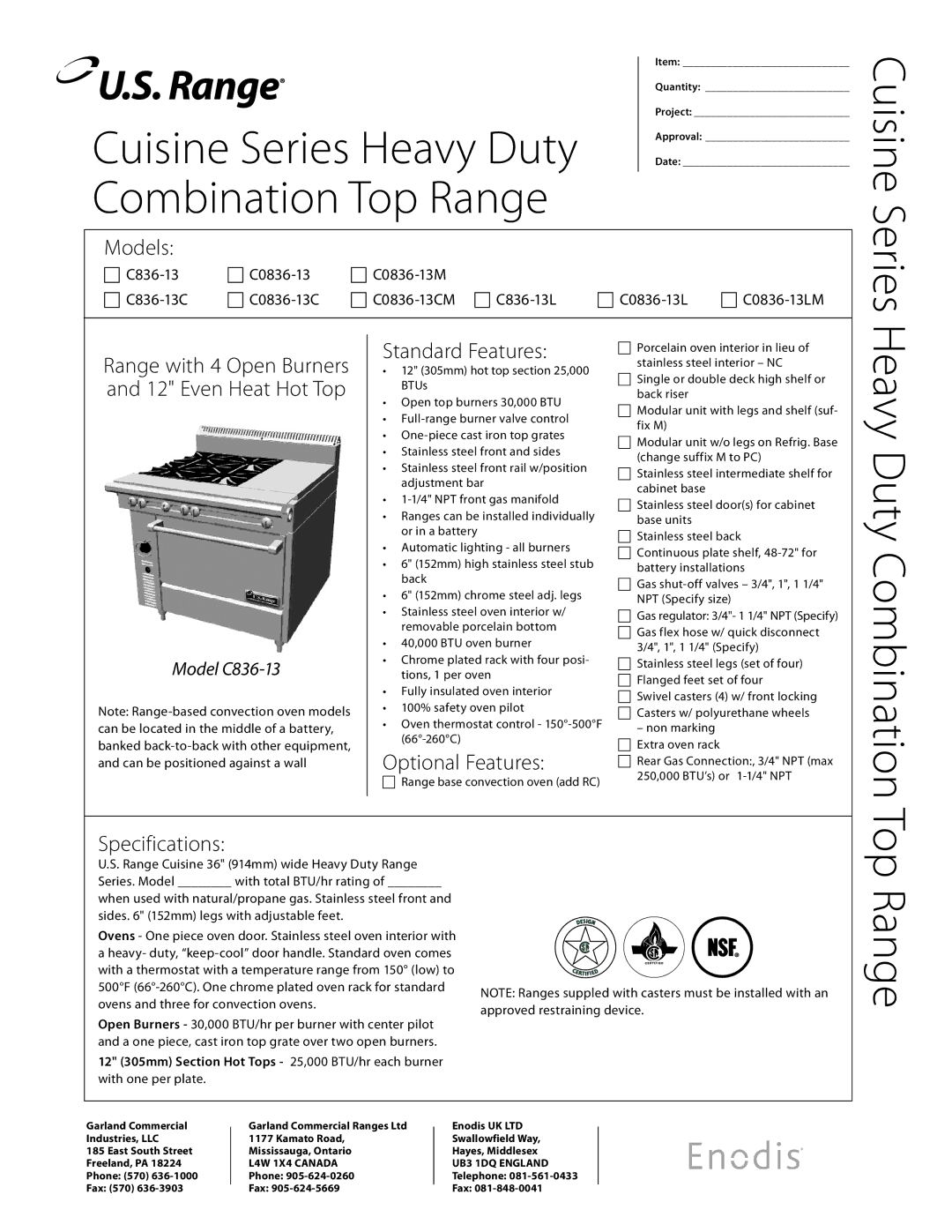

Item: ______________________________







Quantity: __________________________

Cuisine Series Heavy Duty

Project: ____________________________

Date: ______________________________







Approval: __________________________

Combination Top Range



Models:







C836-13

C0836-13

C0836-13M



C836-13C

C0836-13C

C0836-13CM C836-13L

C0836-13L C0836-13LM

Cuisine Series

Range with 4 Open Burners and 12" Even Heat Hot Top

Model C836-13

Note: Range-based convection oven models can be located in the middle of a battery, banked back-to-back with other equipment, and can be positioned against a wall

Standard Features:

12" (305mm) hot top section 25,000 BTUs

Open top burners 30,000 BTU

Full-range burner valve control

One-piece cast iron top grates

Stainless steel front and sides

Stainless steel front rail w/position adjustment bar

1-1/4" NPT front gas manifold

Ranges can be installed individually or in a battery

Automatic lighting - all burners

6" (152mm) high stainless steel stub back

6" (152mm) chrome steel adj. legs

Stainless steel oven interior w/ removable porcelain bottom

40,000 BTU oven burner

Chrome plated rack with four posi- tions, 1 per oven

Fully insulated oven interior

100% safety oven pilot

Oven thermostat control - 150°-500°F (66°-260°C)

Optional Features:

Range base convection oven (add RC)

Porcelain oven interior in lieu of stainless steel interior – NC

Single or double deck high shelf or back riser

Modular unit with legs and shelf (suf- fix M)

Modular unit w/o legs on Refrig. Base (change suffix M to PC)

Stainless steel intermediate shelf for cabinet base

Stainless steel door(s) for cabinet base units

Stainless steel back

Continuous plate shelf, 48-72" for battery installations

Gas shut-off valves – 3/4", 1", 1 1/4" NPT (Specify size)

Gas regulator: 3/4"- 1 1/4" NPT (Specify)

Gas flex hose w/ quick disconnect 3/4", 1", 1 1/4" (Specify)

Stainless steel legs (set of four)

Flanged feet set of four

Swivel casters (4) w/ front locking

Casters w/ polyurethane wheels

– non marking

Extra oven rack

Rear Gas Connection:, 3/4" NPT (max 250,000 BTU’s) or 1-1/4" NPT

Heavy Duty Combination

Specifications:

Top

U.S. Range Cuisine 36" (914mm) wide Heavy Duty Range Series. Model ________ with total BTU/hr rating of ________

when used with natural/propane gas. Stainless steel front and sides. 6" (152mm) legs with adjustable feet.

Ovens - One piece oven door. Stainless steel oven interior with

aheavy- duty, “keep-cool” door handle. Standard oven comes with a thermostat with a temperature range from 150° (low) to 500°F (66°-260°C). One chrome plated oven rack for standard ovens and three for convection ovens.

Open Burners - 30,000 BTU/hr per burner with center pilot and a one piece, cast iron top grate over two open burners.

12" (305mm) Section Hot Tops - 25,000 BTU/hr each burner with one per plate.

NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Range

Garland Commercial

Garland Commercial Ranges Ltd

Enodis UK LTD

Industries, LLC

1177 Kamato Road,

Swallowfield Way,

185 East South Street

Mississauga, Ontario

Hayes, Middlesex

Freeland, PA 18224

L4W 1X4 CANADA

UB3 1DQ ENGLAND

Phone: (570) 636-1000

Phone: 905-624-0260

Telephone: 081-561-0433

Fax: (570) 636-3903

Fax: 905-624-5669

Fax: 081-848-0041

Page 1
Image 1
Garland C836-13L, C836-13C, C0836-13M, C0836-13LM, C0836-13CM specifications Combination Top Range

C0836-13CM, C0836-13L, C0836-13, C0836-13LM, C0836-13M specifications

The Garland C836 series, including models C836-13C, C0836-13L, C0836-13CM, C0836-13LM, and C0836-13, represents a pinnacle in commercial cooking equipment designed for versatility, efficiency, and durability. These models are particularly popular in restaurants, catering services, and large culinary operations, thanks to their robust features that cater to high-volume cooking.

One of the main features of the C836 series is the heavy-duty construction, utilizing stainless steel to ensure resistance to rust, corrosion, and wear. This is critical in a commercial environment where equipment undergoes frequent use and cleaning. The design incorporates welded seams and heavy-gauge materials, enhancing durability and extending the lifespan of the equipment.

The cooking performance of the Garland C836 series is exceptional. Each model is equipped with a powerful gas burner system that provides reliable and uniform heat distribution. This ensures that food cooks evenly, allowing chefs to prepare a variety of dishes with precision. The C836-13C model features a high BTU output, ideal for rapid cooking, while the C0836-13L focuses on energy efficiency without compromising performance.

In terms of technology, the C836 series benefits from advanced burner technology. The burners are engineered for optimal combustion efficiency, leading to reduced gas consumption and lower operational costs. Additionally, many models come with manual controls that offer easy adjustments to the flame size, allowing chefs to achieve the desired cooking temperature quickly.

Each model in the series also incorporates safety features such as flame failure devices and easy-access grease trays, which enhance operational safety and simplify the cleaning process. The design of the cooktop facilitates easy maintenance, allowing for quick access to internal components for routine inspections and repairs.

Furthermore, the C836 series is versatile in its cooking capabilities. With options for griddles, hot tops, and open burners, the series can meet a wide range of cooking methods, from sautéing and grilling to simmering and boiling. This flexibility makes it an ideal choice for diverse menus.

Overall, the Garland C836 series stands out due to its combination of heavy-duty construction, powerful cooking performance, advanced burner technology, and versatile design. These characteristics make it a favored choice among culinary professionals seeking reliable and efficient cooking equipment. Whether for a bustling restaurant kitchen or a large catering operation, the C836 series continues to deliver excellence in commercial cooking solutions.
