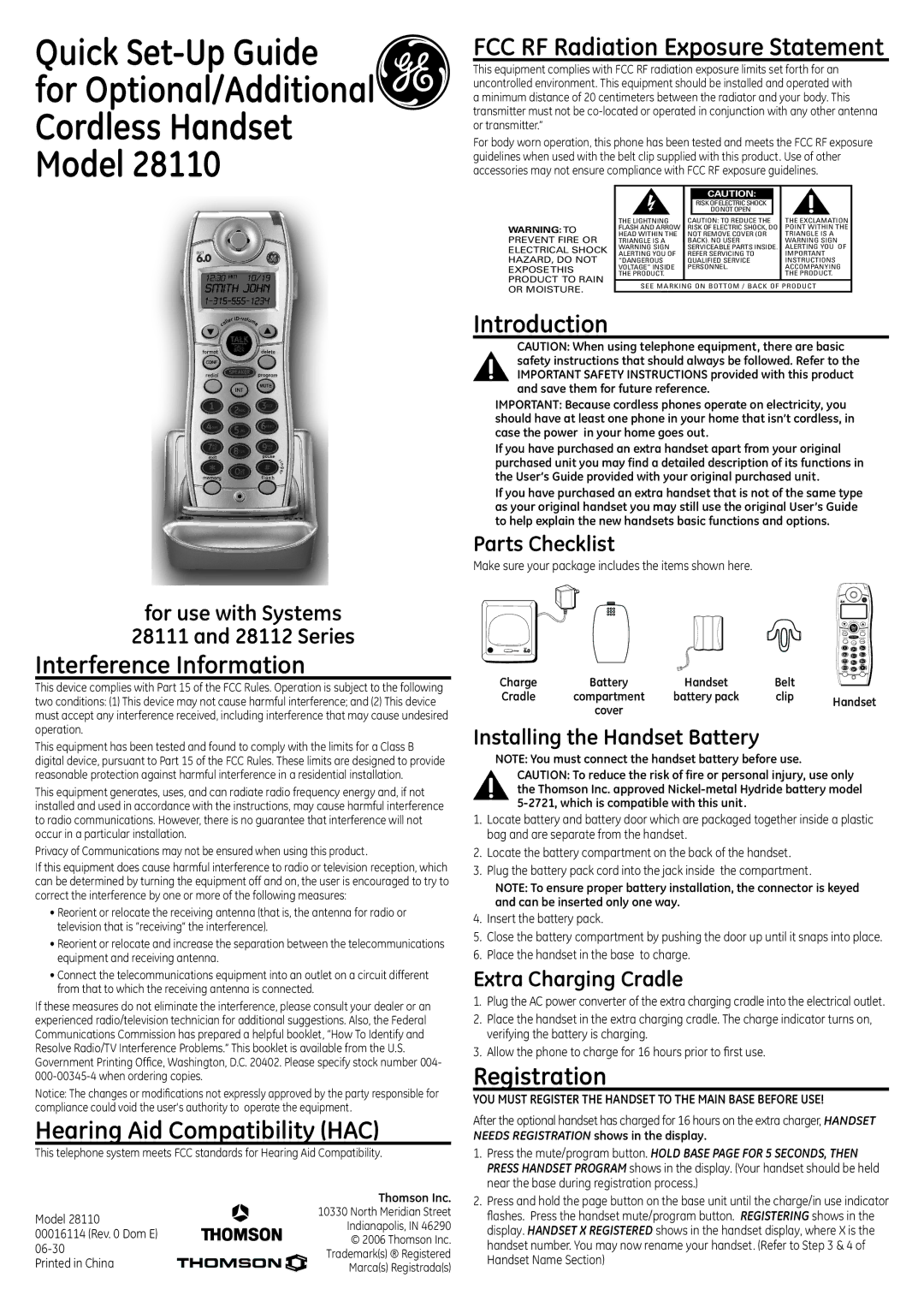

Quick Set-Up Guide for Optional/Additional Cordless Handset Model 28110

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.”

For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with the belt clip supplied with this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

			CAUTION:
			RISK OF ELECTRIC SHOCK
			DO NOT OPEN
	THE LIGHTNING	CAUTION: TO REDUCE THE		THE EXCLAMATION
WARNING:TO	FLASH AND ARROW	RISK OF ELECTRIC SHOCK, DO		POINT WITHIN THE
	HEAD WITHIN THE	NOT REMOVE COVER (OR		TRIANGLE IS A
PREVENT FIRE OR	TRIANGLE IS A	BACK). NO USER		WARNING SIGN
ELECTRICAL SHOCK	WARNING SIGN	SERVICEABLE PARTS INSIDE.		ALERTING YOU OF
	ALERTING YOU OF	REFER SERVICING TO		IMPORTANT
HAZARD, DO NOT	“DANGEROUS	QUALIFIED SERVICE		INSTRUCTIONS
EXPOSETHIS	VOLTAGE” INSIDE	PERSONNEL.		ACCOMPANYING
PRODUCT TO RAIN	THE PRODUCT.			THE PRODUCT.
	SEE MARKING ON BOTTOM / BACK OF PRODUCT
OR MOISTURE.

Introduction

CAUTION: When using telephone equipment, there are basic safety instructions that should always be followed. Refer to the

IMPORTANT SAFETY INSTRUCTIONS provided with this product and save them for future reference.

IMPORTANT: Because cordless phones operate on electricity, you should have at least one phone in your home that isn’t cordless, in case the power in your home goes out.

If you have purchased an extra handset apart from your original purchased unit you may find a detailed description of its functions in the User’s Guide provided with your original purchased unit.

If you have purchased an extra handset that is not of the same type as your original handset you may still use the original User’s Guide to help explain the new handsets basic functions and options.

Parts Checklist

Make sure your package includes the items shown here.

for use with Systems

28111 and 28112 Series

Interference Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

Privacy of Communications may not be ensured when using this product.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference).

•Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna.

•Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected.

If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004- 000-00345-4 when ordering copies.

Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Hearing Aid Compatibility (HAC)

This telephone system meets FCC standards for Hearing Aid Compatibility.

	Thomson Inc.
Model 28110	10330 North Meridian Street
	Indianapolis, IN 46290
00016114 (Rev. 0 Dom E)
	© 2006 Thomson Inc.
06-30
	Trademark(s) ® Registered
Printed in China
	Marca(s) Registrada(s)

olume
TALK
format	delete
conf
redial SPEAKER	program
int	mute

				1	2	3
				4	5	6
				7	8	9
				exit
					0	#
				memory		flash
Charge	Battery	Handset	Belt
Cradle	compartment	battery pack	clip	Handset
	cover

Installing the Handset Battery

NOTE: You must connect the handset battery before use.

CAUTION: To reduce the risk of fire or personal injury, use only the Thomson Inc. approved Nickel-metal Hydride battery model 5-2721, which is compatible with this unit.

1.Locate battery and battery door which are packaged together inside a plastic bag and are separate from the handset.

2.Locate the battery compartment on the back of the handset.

3.Plug the battery pack cord into the jack inside the compartment.

NOTE: To ensure proper battery installation, the connector is keyed and can be inserted only one way.

4.Insert the battery pack.

5.Close the battery compartment by pushing the door up until it snaps into place.

6.Place the handset in the base to charge.

Extra Charging Cradle

1.Plug the AC power converter of the extra charging cradle into the electrical outlet.

2.Place the handset in the extra charging cradle. The charge indicator turns on, verifying the battery is charging.

3.Allow the phone to charge for 16 hours prior to first use.

Registration

YOU MUST REGISTER THE HANDSET TO THE MAIN BASE BEFORE USE!

After the optional handset has charged for 16 hours on the extra charger, HANDSET

NEEDS REGISTRATION shows in the display.

1.Press the mute/program button. HOLD BASE PAGE FOR 5 SECONDS, THEN PRESS HANDSET PROGRAM shows in the display. (Your handset should be held near the base during registration process.)

2.Press and hold the page button on the base unit until the charge/in use indicator flashes. Press the handset mute/program button. REGISTERING shows in the display. HANDSET X REGISTERED shows in the handset display, where X is the handset number. You may now rename your handset. (Refer to Step 3 & 4 of Handset Name Section)
