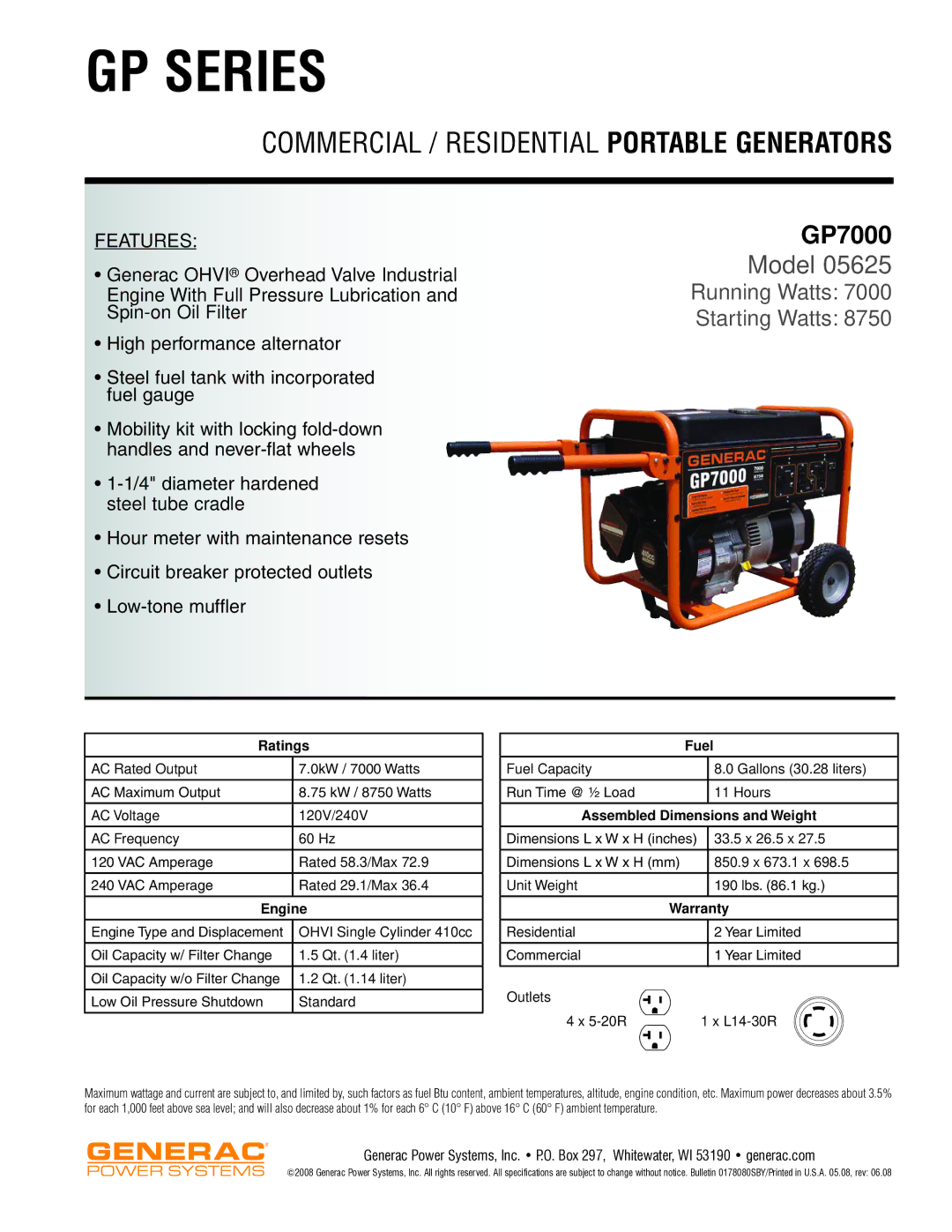

GP SERIES
COMMERCIAL / RESIDENTIAL PORTABLE GENERATORS
•Generac OHVI® Overhead Valve Industrial Engine With Full Pressure Lubrication and
GP7000
Model 05625
Running Watts: 7000
Starting Watts: 8750
•Mobility kit with locking
| Ratings | |
|
|
AC Rated Output | 7.0kW / 7000 Watts |
|
|
AC Maximum Output | 8.75 kW / 8750 Watts |
|
|
AC Voltage | 120V/240V |
|
|
AC Frequency | 60 Hz |
|
|
120 VAC Amperage | Rated 58.3/Max 72.9 |
|
|
240 VAC Amperage | Rated 29.1/Max 36.4 |
|
|
| Engine | |
|
|
Engine Type and Displacement | OHVI Single Cylinder 410cc |
|
|
Oil Capacity w/ Filter Change | 1.5 Qt. (1.4 liter) |
|
|
Oil Capacity w/o Filter Change | 1.2 Qt. (1.14 liter) |
|
|
Low Oil Pressure Shutdown | Standard |
|
|
Fuel Capacity |
| 8.0 Gallons (30.28 liters) | ||
|
|
|
|
|
Run Time @ ½ Load |
| 11 Hours | ||
|
|
|
| |
| Assembled Dimensions and Weight | ||||
|
|
|
|
|
Dimensions L x W x H (inches) |
| 33.5 x 26.5 x 27.5 | ||
|
|
|
|
|
Dimensions L x W x H (mm) |
| 850.9 x 673.1 x 698.5 | ||
|
|
|
|
|
Unit Weight |
| 190 lbs. (86.1 kg.) | ||
|
|
|
| |
|
| Warranty | ||
|
|
|
|
|
Residential |
| 2 Year Limited | ||
|
|
|
|
|
Commercial |
| 1 Year Limited | ||
|
|
|
|
|
Outlets |
|
|
|
|
|
|
| ||
4 x | 1 x | |||
Maximum wattage and current are subject to, and limited by, such factors as fuel Btu content, ambient temperatures, altitude, engine condition, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level; and will also decrease about 1% for each 6° C (10° F) above 16° C (60° F) ambient temperature.
Generac Power Systems, Inc. • P.O. Box 297, Whitewater, WI 53190 • generac.com
©2008 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Bulletin 0178080SBY/Printed in U.S.A. 05.08, rev: 06.08
