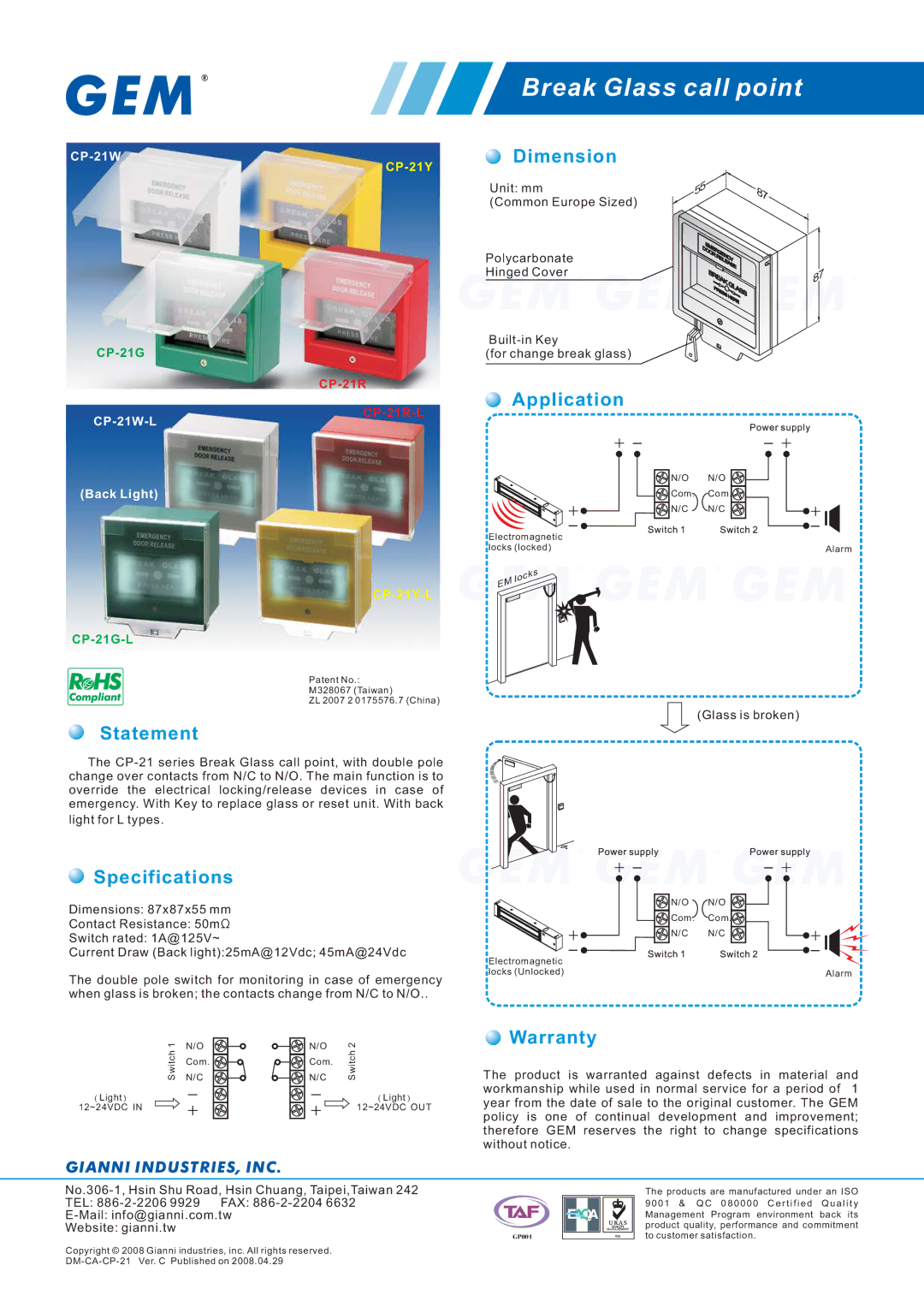

Unit:mm
(CommonEurope Sized)
Built-inKey
(forchange break glass)
The CP-21 series with double pole
changeover contacts from N/C to N/O. The main function is to
override the electrical locking/release devices in case of
emergency.With Key to replace glass or reset unit. With back
lightforLtypes.
Break Glass call point,
Dimensions:87x87x55 mm
ContactResistance: 50mΩ
Switchrated: 1A@125V~
CurrentDraw (Back light):25mA@12Vdc; 45mA@24Vdc
The double pole switch for monitoring in case of emergency
whenglass is broken; the contacts change from N/C to N/O..
Switch1
Switch2
N/O
Com.
N/C
N/O
Com.
N/C
()Light
12~24VDC IN
()Light
12~24VDC OUT
EMERGENCY
DOORRELEASE
EMERGENCY
DOORRELEASE
BREAKGLASS
PRESSHERE
87
55
87
CP-21G
CP-21G-L
CP-21W
CP-21W-L
CP-21Y
CP-21Y-L
CP-21R
CP-21R-L
(BackLight)
Electromagnetic
locks(locked)
Electromagnetic
locks(Unlocked)
Alarm
Alarm
(Glassis broken)
N/O
Com.
N/C
N/O
Com.
N/C
N/O
Com.
N/C
N/O
Com.
N/C
EMlocks
Polycarbonate
HingedCover

GIANNIINDUSTRIES, INC.

No.306-1,Hsin Shu Road, Hsin Chuang, Taipei,Taiwan242
TEL:886-2-2206 9929 FAX:886-2-2204 6632
E-Mail:info@gianni.com.tw
Website:gianni.tw
Copyright© 2008 Gianni industries, inc.All rights reserved.
DM-CA-CP-21 Ver.C Published on 2008.04.29
Theproducts are manufactured under an ISO
9001 QC 080000 Certified Quality
Management Program environment back its
productquality, performance and commitment
tocustomer satisfaction.
&
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original customer.The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
withoutnotice.
GP001

Statement

Dimension

Application

Warranty

Specifications

Break Glass call point
PatentNo.:
M328067(Taiwan)
ZL20072 0175576.7 (China)
