GIANNIINDUSTRIES, INC.
Copyright 2008 Gianni industries, inc. All rights reserved.
DM-CA-EB-220 Ver.E Published on 2008.10.20
Theproducts are manufactured under an ISO
9001 QC 080000 Certified Quality
Management Program environment back its
productquality, performance and commitment
tocustomer satisfaction.
&

Statement

Dimension

Specifications

DoubleActing Doors

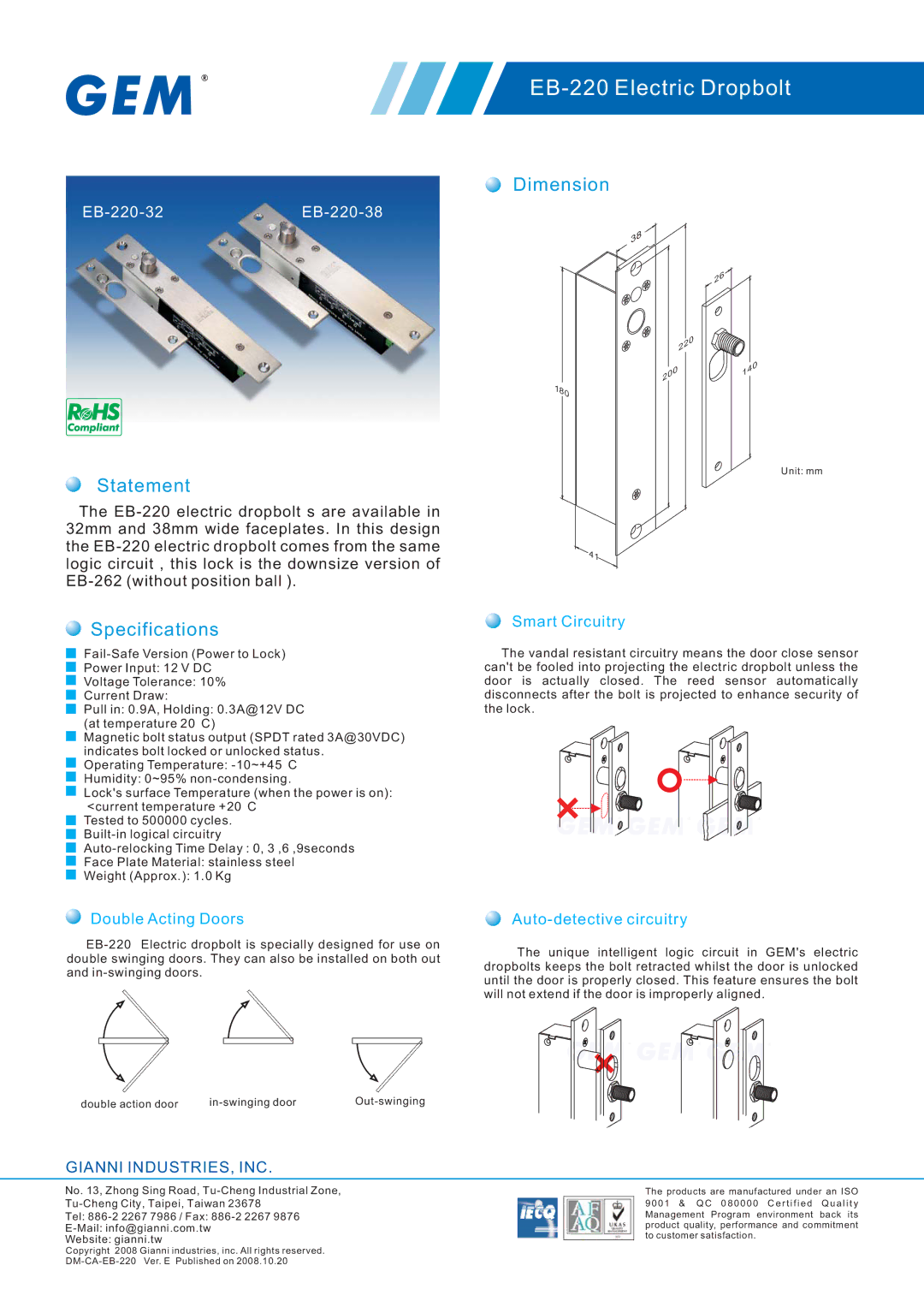

EB-220 Electric Dropbolt

EB-220-32 EB-220-38

Fail-SafeVersion (Power to Lock)
PowerInput: 12 V DC
VoltageTolerance:10%
CurrentDraw:
Pullin: 0.9A, Holding: 0.3A@12V DC
(attemperature 20 C)
Magneticbolt status output (SPDT rated 3A@30VDC)
indicatesbolt locked or unlocked status.
OperatingTemperature: -10~+45 C
Humidity:0~95% non-condensing.
Lock'ssurface Temperature (when the power is on):
<currenttemperature +20 C
Testedto 500000 cycles.
Built-inlogical circuitry
Auto-relockingTime Delay : 0, 3 ,6 ,9seconds
FacePlate Material: stainless steel
Weight(Approx.): 1.0 Kg
°
°
°
doubleaction door in-swingingdoor Out-swinging
38
200
220
180
41
26
140
Unit:mm

The EB-220 electric dropbolt s are available in

32mm and 38mm wide faceplates. In this design

theEB-220 electric dropbolt comes from the same

logic circuit , this lock is the downsize version of

EB-262(without position ball ).

SmartCircuitry

Thevandal resistant circuitry means the door close sensor
can'tbe fooled into projecting the electric dropbolt unless the
door is actually closed. The reed sensor automatically
disconnects after the bolt is projected to enhance security of
thelock.

Auto-detectivecircuitry

The unique intelligent logic circuit in GEM's electric
dropbolts keeps the bolt retracted whilst the door is unlocked
untilthe door is properly closed. This feature ensures the bolt
willnot extend if the door is improperly aligned.
EB-220 Electric dropbolt is specially designed for use on
doubleswinging doors. They can also be installed on both out
andin-swinging doors.
No.13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-ChengCity, Taipei, Taiwan 23678
Tel:886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail:info@gianni.com.tw
Website:gianni.tw
