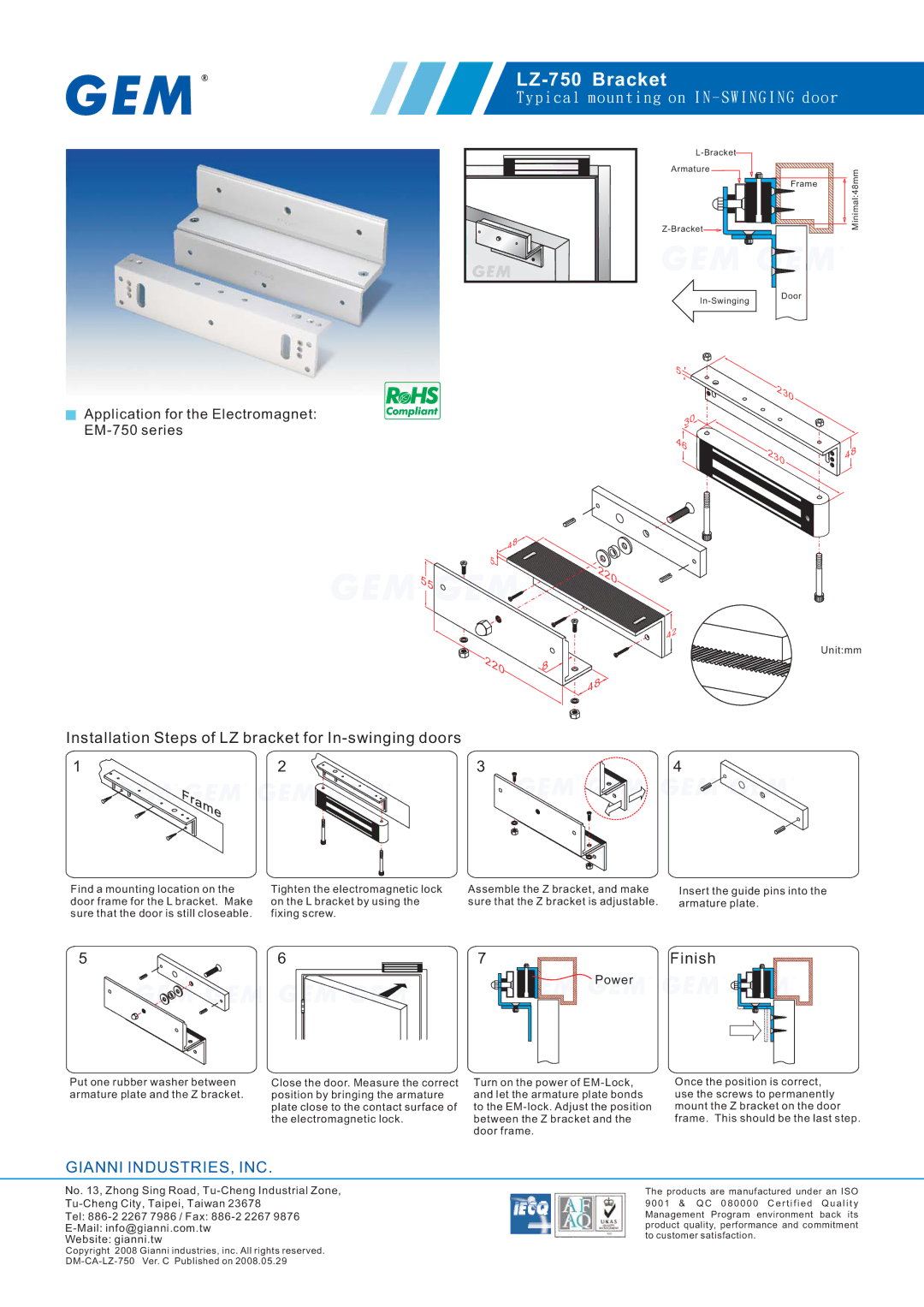

LZ-750 Bracket

T y p i c a l m o u n t i n g o n I N - S W I N G I N G d o o r

Application for the Electromagnet:

EM-750 series

55

48

5

220

L-Bracket





Armature



Minimal:48mm



Frame

Z-Bracket





In-Swinging

Door







5







230



30





46

230





48

220

42 Unit:mm

8

48

Installation Steps of LZ bracket for In-swinging doors

1

2

3

4

Find a mounting location on the door frame for the L bracket. Make sure that the door is still closeable.

Tighten the electromagnetic lock on the L bracket by using the fixing screw.

Assemble the Z bracket, and make sure that the Z bracket is adjustable.

Insert the guide pins into the armature plate.

5

6

7

Finish



Power

Put one rubber washer between

Close the door. Measure the correct

armature plate and the Z bracket.

position by bringing the armature



plate close to the contact surface of



the electromagnetic lock.

GIANNI INDUSTRIES, INC.

No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,

Tu-Cheng City, Taipei, Taiwan 23678

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: info@gianni.com.tw

Website: gianni.tw

Turn on the power of EM-Lock,

Once the position is correct,

and let the armature plate bonds

use the screws to permanently

to the EM-lock. Adjust the position

mount the Z bracket on the door

between the Z bracket and the

frame. This should be the last step.

door frame.



The products are manufactured under an ISO 9 0 0 1 & Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y Management Program environment back its product quality, performance and commitment to customer satisfaction.

Copyright 2008 Gianni industries, inc. All rights reserved. DM-CA-LZ-750 Ver. C Published on 2008.05.29

Page 1
